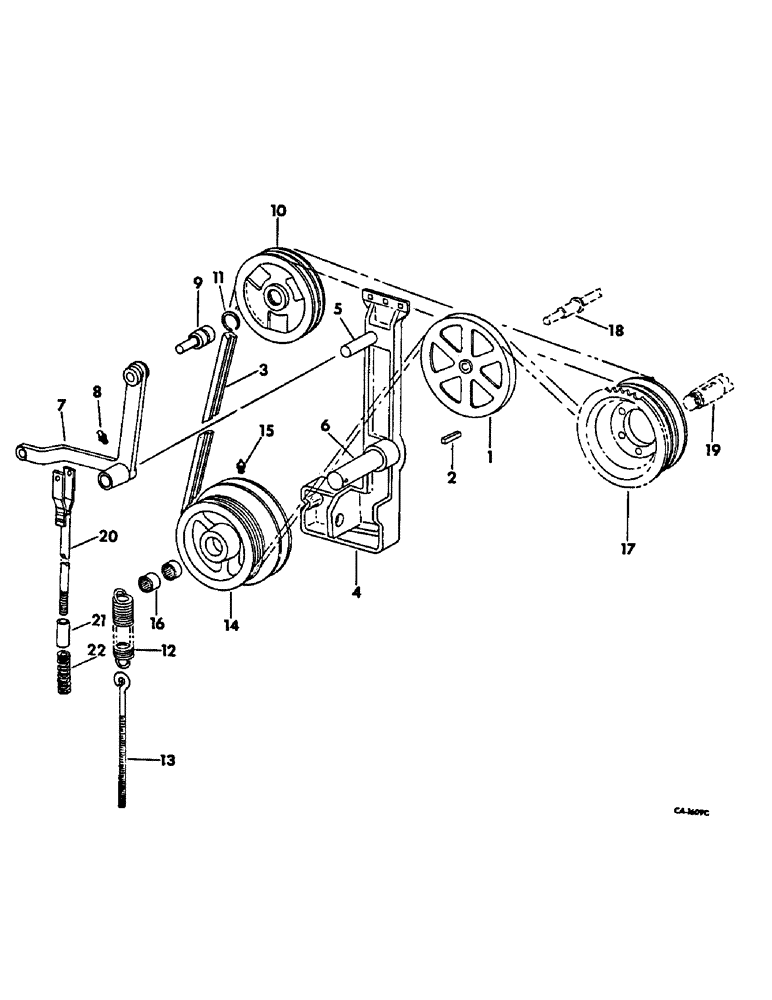

Запчасти Case IH 715 (22-04) - STRAW WALKERS, STRAW WALKER DRIVE Straw Walkers

171700C91

PARTS ACCESSORY, straw walker drive slow speed, includes ref nos 1 and 3

1шт.

1

170944C1

PULLEY, straw walker driven, 17 in. OD, not edible bean

1шт.

1

171339C1

PULLEY, straw walker driven, 19 in. OD, for edible bean and slow speed

1шт.

2

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

1шт.

3

170948C1

BELT,0.490" W x 116.29" L, 2 Ribs

V-BELT , Straw walker and fan jackshaft, Not edible bean 0.490" W x 116.29" L, 2 Ribs

1шт.

3

171338C1

BELT

straw walker and fan jackshaft, edible bean and slow speed

1шт.

4

170946C21

SUPPORT

W/SHAFT, straw walker dr idler, includes ref nos 5 and 6

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

170947C1

PIN

straw walker drive tightener arm pivot

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

7шт.

6

170949C1

SHAFT, fan drive pulley, serial no. 3250 and below, for use w/170946C2 support

1шт.

6

174462C1

SHAFT

fan drive pulley, serial no. 3251 and above, for use w/170946C2 support

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

551771R1

WASHER, 1-5/32 x 1-1/2 x 16 ga

1шт.

7

170950C1

ARM, straw walker drive tightener

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-27PTF str lub

1шт.

9

399402R91

BEARING

ASSY, idler pulley

1шт.

10

170945C1

PULLEY

straw walker drive idler, 7 in. OD

1шт.

11

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, retainer

1шт.

12

510027R1

SPRING

straw walker dr tightener arm, serial no. 3250 and below

1шт.

13

171995C1

BOLT

straw walker tightener arm spring, serial no. 3250 and below

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

1шт.

14

170951C11

PULLEY

W/BEARINGS, straw walker idler and fan drive, 7 in. and 8 in. OD, includes ref. no. 16

1шт.

15

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-27 PTF 45 deg lub

1шт.

16

172480C91

BEARING, NEEDLE,28.575mm ID x 38.113mm OD x 20.62mm

BEARING ASSY, fan drive pulley

2шт.

17

170952C2

SPROCKET ASSY.

PULLEY AND SPROCKET, straw walker drive, 7-3/4 in OD and 38-T

1шт.

18

CRANKSHAFT, straw walker, refer to this group under straw walker

1шт.

19

SHAFT, cylinder beater, refer to group 21 under cylinder beater

1шт.

20

174906C2

ROD

ASSY, straw walker drive tightener arm spring, serial no. 3251 and above

1шт.

271501

SOCKET

NUT, 7/16 znd hex.

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22898R1

PIN, 1/8 x 1-1/4 C-Z std-hd

1шт.

188755R1

WASHER

15/32 x 1-1/2 x 11 ga

1шт.

22767R1

WASHER

1-3/32 x 1-1/2 x 11 ga C-Z

1шт.

21

174908C1

SPACER, straw walker dr tightener rod, serial no. 3251 thru 19000, use w/174906C1 rod

1шт.

21

190612C1

SPACER, straw walker drive spring, serial no. 19001 and above, w/174906C2 rod

1шт.

22

631018R1

SPRING, straw walker drive tightener arm rod, serial no. 3251 thru 19000, use w/174906C1 rod

1шт.

Ref #22 - 510027R1 11/16/95

1шт.

22

P3A

SPRING, straw walker drive tightener arm rod, serial no. 19001 and above, use w/174906C2 rod

1шт.
