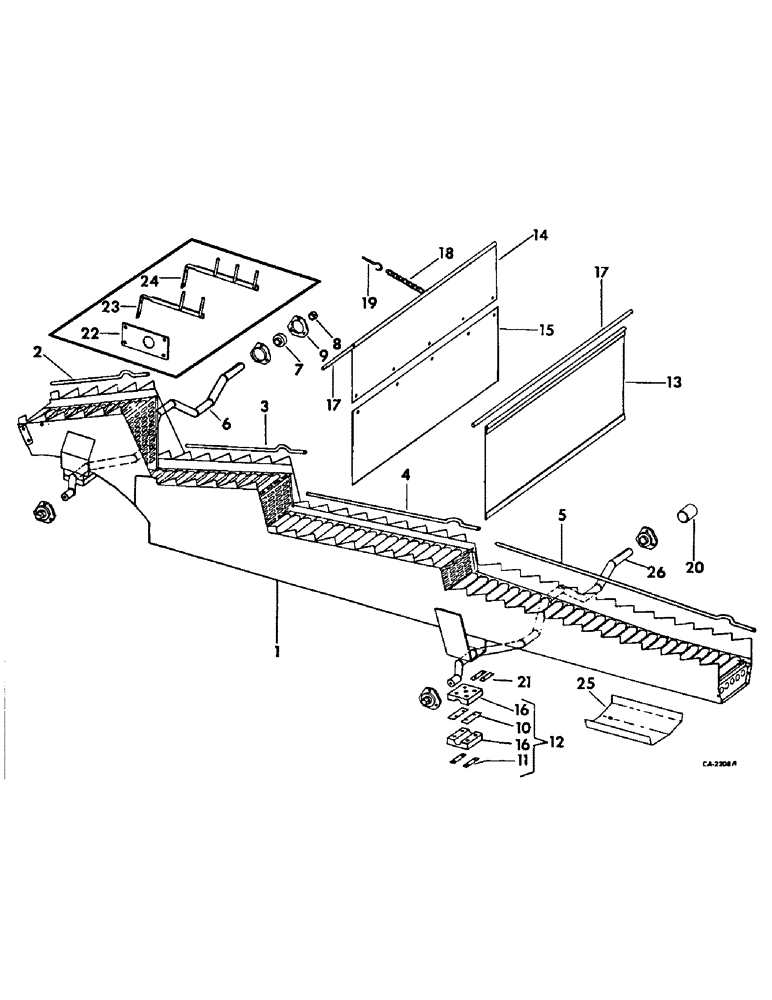

Запчасти Case IH 715 (22-02) - STRAW WALKERS, STRAW WALKER Straw Walkers

1

170935C91

RACK

WALKER ASSY, straw, includes ref nos 2, 3, 4 and 5

4шт.

2

937299R1

ELECTRICAL WIRE

WIRE, straw walker front riser

20шт.

3

937300R1

ELECTRICAL WIRE

WIRE, straw walker front center riser

20шт.

4

937301R1

ELECTRICAL WIRE

WIRE, straw walker rear center riser

20шт.

5

170942C1

ELECTRICAL WIRE

WIRE, straw walker rear

20шт.

6

568626R1

CRANKSHAFT

straw walker

1шт.

7

455960R91

BALL BEARING

BEARING, straw walker crankshaft ball

4шт.

8

557115R11

COLLAR

COLLAR ASSY, straw walker crankshaft bearing locking

4шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 C-Z hex-soc-hd cup-pt set

4шт.

9

571425R1

FLANGED BEARING

straw walker crankshaft bearing

8шт.

10

M83629

SHIM,.020" Thk

Straw walker bearing box .020" Thk

16шт.

10

174015C1

GASKET

SHIM, straw walker bearing box .052

2шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 sq-nk crg

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 nylon insert lock

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

11

M14846

CLAMP

STRAP, straw walker bearing box lock, serial no. 19000 and below

2шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 C-Z nk

4шт.

120373

NUT, 5/16 C-Z sq

4шт.

12

156207C91

STRIPPER PACKAGE

PACKAGE ASSY, straw walker brg block, incl ref. nos. 10, 11 and 16

1шт.

13

171545C1

FLAP

ASSY, straw walker rear check

1шт.

14

157183C1

VALVE BLOCK

FLAP, straw walker front check upper

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

5шт.

15

157179C2

FLAP

straw walker front check lower

1шт.

16

BOX, straw walker bearing block, not serviced separately order 156207C91 package assy ref no. 12

2шт.

17

569108R1

ROD

straw walker check flap

2шт.

648002

KNIFE

1/8" x 3/4"

4шт.

18

H59561

CHAIN, coil check flap adjusting

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

19

H59564

PIN

check flap adjusting chain

1шт.

20

174657C1

SHIELD ASSY, straw walker crankshaft end, serial no. 8000 and below

1шт.

21

556301R1

RETAINER

straw walker rear, serial no. 8000 and below

8шт.

22

588766R1

PLATE

bolting

8шт.

23

584100R92

RISER

EXTENSION ASSY, straw walker riser front

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

24

584102R92

RISER

EXTENSION ASSY, straw walker riser rear

16шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

175057C1

PLATE

straw walker bottom rear, for corn

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

4шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

4шт.

26

568626R1

CRANKSHAFT

straw walker

1шт.
