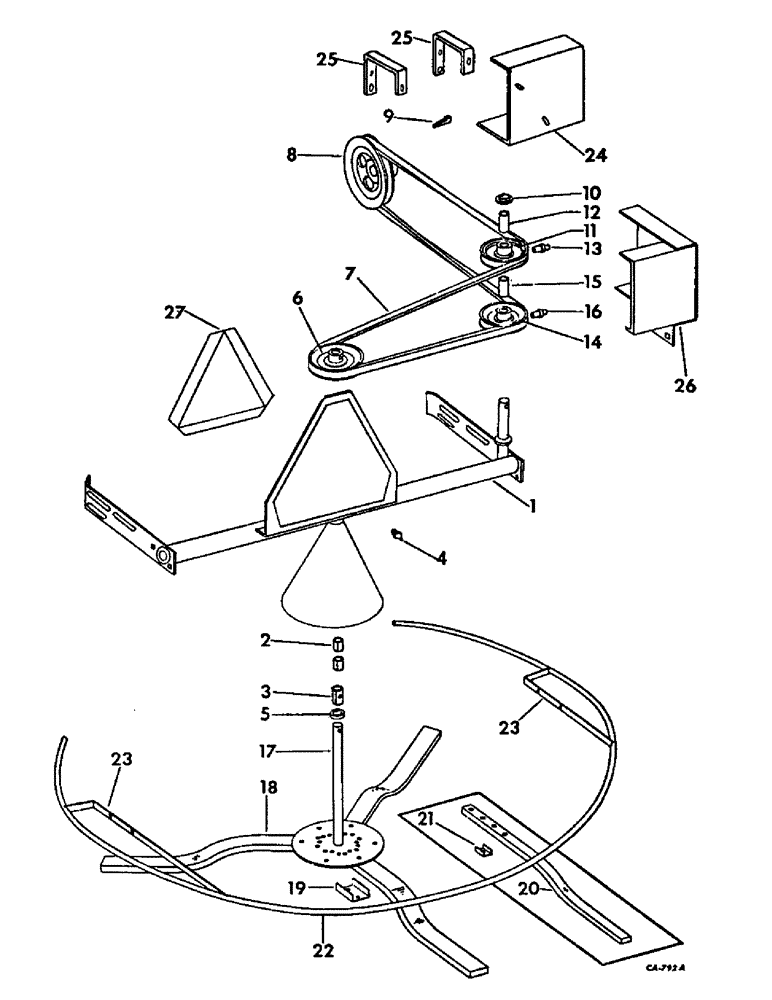

Запчасти Case IH 715 (20-19) - SEPARATOR, STRAW SPREADER Separation

1

171184C91

SUPPORT ASSY, straw spreader, includes ref nos 2 and 3

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

22480R1

WASHER

29/32 x 1-1/2 x 22 ga C-Z

4шт.

2

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

straw spreader shaft upper

2шт.

3

589813R1

BUSHING

straw spreader shaft lower

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

5

615499C91

OIL SEAL

ASSY, straw spreader shaft oil

1шт.

6

21712K

PULLEY ASSY.

PULLEY ASSY, straw spreader driven 5-3/4 in. OD

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21941R1

PIN, 5/16 x 1-7/8 C-Z std hd

1шт.

7

589622R1

V-BELT,0.63" W

Straw spreader drive 0.63" W

1шт.

8

936706R1

PULLEY

straw spreader drive, 6-3/4 in. OD

1шт.

9

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 5/16 x 1-3/4 gib

1шт.

10

20362K

COLLAR

straw spreader shaft

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

11

17876K

PULLEY ASSY.

PULLEY W/BUSHING, straw spreader drive belt idler 5-1/8 in. OD, includes ref no 12

1шт.

12

18523K

BUSHING

drive belt idler pulley

1шт.

13

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

14

48252K

PULLEY ASSY.

PULLEY W/BUSHING, straw spreader drive belt tightener 4-3/4 in. OD, includes ref no 15

1шт.

15

18523K

BUSHING

drive belt tightener pulley

1шт.

16

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

17

568191R91

ROD

SHAFT ASSY, straw spreader

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

3шт.

18

172994C1

BAT

BLADE, spreader heavy

3шт.

19

566475R1

CHANNEL

CLIP, spreader heavy blade

3шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 znd hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

20

172993C1

BAT

BLADE, spreader light

3шт.

21

565871R1

CHANNEL

CLIP, spreader light blade

3шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

22

628633R1

GUARD, straw spreader

1шт.

23

158977C1

SUPPORT, straw spreader guard

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

2шт.

24

171187C1

SHIELD, drive pulley

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

2шт.

25

171188C1

STRAP, shield support front

2шт.

475954R1

NUT

3/8 CDP whiz lock

2шт.

26

171733C1

SHIELD ASSY, straw spreader drive

1шт.

27

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

slow moving vehicle

1шт.
