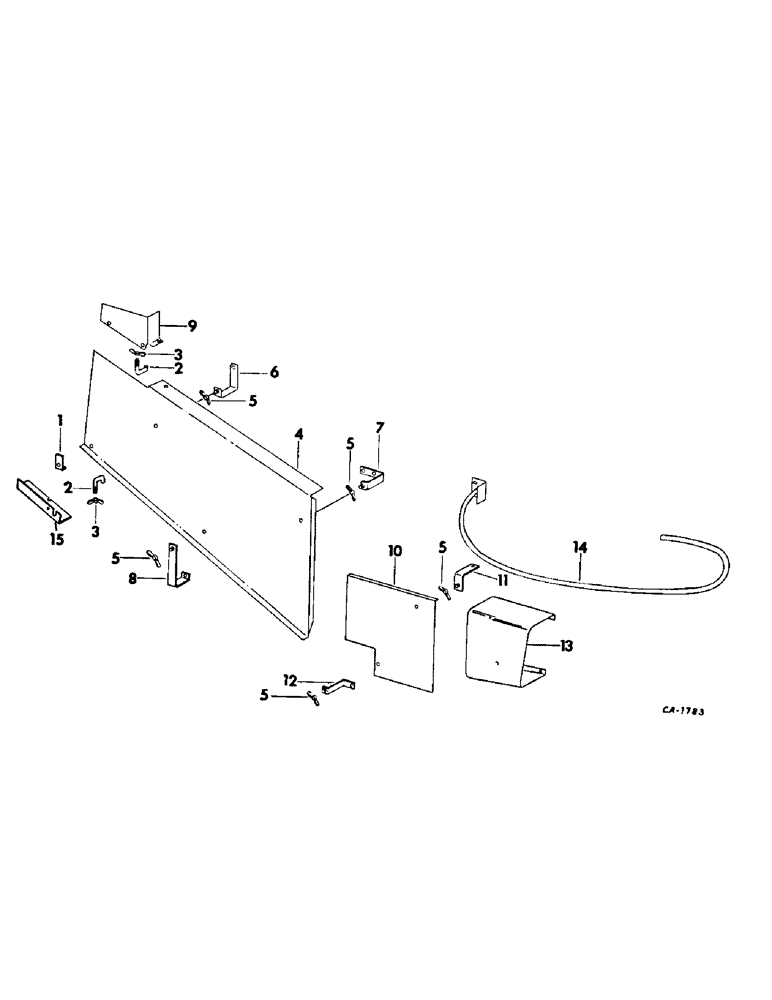

Запчасти Case IH 715 (20-18) - SEPARATOR, STRAW CHOPPER, SHIELDS, SERIAL NO. 3251 AND ABOVE Separation

1

174618C1

ANGLE, belt clamp, 1 used belt drive, 2 used hyddrostatic drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

2шт.

2

174619C1

BOLT, belt clamp

2шт.

3

935736R1

NUT, WING

NUT, 5/16 wing

2шт.

NLS

NO LONGER SERVICED

5/16 znd hex jam

2шт.

4

174621C1

SHIELD

drive belt front, hydrostatic drive

1шт.

4

174622C1

SHIELD, drive belt front, belt drive

1шт.

5

159808C1

NUT, 5/16 wing

5шт.

6

174623C1

SUPPORT ASSY, front shield rear

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

1шт.

7

174625C1

SUPPORT ASSY, front shield upper

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 znd hex-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

8

174627C1

STRAP ASSY, front shield lower

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

1шт.

9

171285C1

SHIELD, front idler, hydrostatic drive for use w/gasoline engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

10

174629C1

SHIELD, drive belt center

1шт.

11

174799C1

BAR ASSY, drive belt center shield

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

2шт.

12

174631C1

STRAP ASSY, center shield lower

1шт.

13

174633C1

SHIELD, drive rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

14

174634C1

SHIELD

ASSY, straw chopper hoop

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

15

174846C1

ANGLE, belt clamp lower, hydrostatic drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

2шт.
