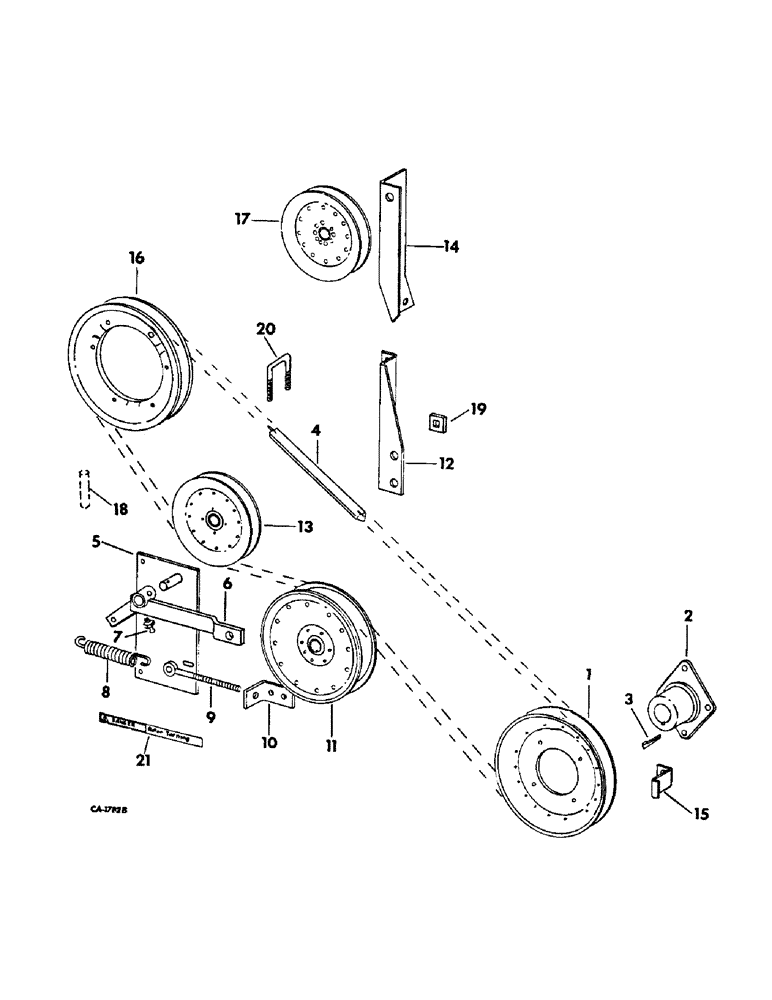

Запчасти Case IH 715 (20-16) - SEPARATOR, STRAW CHOPPER, DRIVE, SINGLE BELT, SERIAL NO. 3251 AND ABOVE Separation

1

171261C11

PULLEY

ASSY, rotor driven, 9-3/4 in. OD

1шт.

2

174615C1

HUB, rotor driven pulley

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

4шт.

3

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 gib

1шт.

4

174614C1

BELT

straw chopper drive

1шт.

5

174616C1

BRACKET ASSY, tightener arm pivot

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

4шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

4шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

4шт.

6

169901C2

ARM

belt tightener, serial no., Serial Range: 3251-5328

1шт.

6

175283C1

ARM

belt tightener, serial no. 5329 and above

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str lub

1шт.

8

510027R1

SPRING

SRRING, tightener

1шт.

9

629417R1

BOLT,3/8" - 16 x 7"

tightener

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

172387C1

CLIP, spring anchor

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

2шт.

11

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, tightener, 8-3/4 in. OD

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

3шт.

12

172392C1

BRACKET, idler support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

574097R91

PULLEY

ASSY, idler, 7-5/16 in. OD

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

6шт.

14

171286C1

BRACKET ASSY, idler pulley, hydrostatic drive

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

2шт.

15

174620C1

STRAP, belt hanger rear

2шт.

16

936161R1

PULLEY, drive, 10-1/4 in. OD, gasoline engine

1шт.

16

936162R1

PULLEY, drive, 9-1/2 in. OD, diesel engine

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, idler, 8-3/4 in. OD, for hydrostatic drive

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 12 ga C-Z

4шт.

18

TUBE, separator drive spring, refer to group 7 under separator drive control

1шт.

19

936152R1

WASHER

idler mounting bracket

1шт.

20

175225C1

BOLT,5/16" - 18 x 2.20" W x 5.50" L

U-BOLT, belt guide

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 hex jam

2шт.

21

174797C1

DECAL

PRODUCT GRAPHIC, danger rotor turning

2шт.
