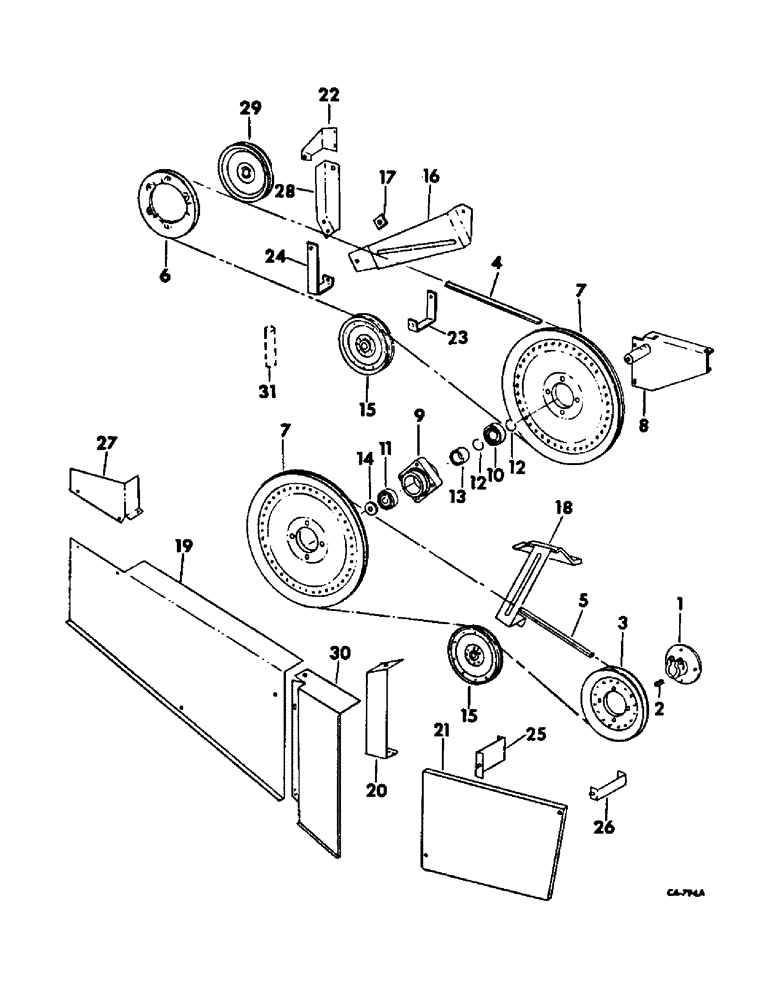

Запчасти Case IH 715 (20-14) - SEPARATOR, STRAW CHOPPER, DRIVE, DOUBLE BELT, SERIAL NO. 3250 AND BELOW Separation

1

171233C1

HUB, rotor driven

1шт.

18800R1

BOLT, 7/16 x 2-1/2 znd hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 znd hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

2

Q51

KEY,3/8" Sq x 2 1/2", Par

1шт.

3

171261C11

PULLEY

ASSY, straw chopper driven, 9-3/4 in. OD

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

170145C1

BELT,0.879" W x 164.75" L

V-BELT , Jackshaft drive 0.879" W x 164.75" L

1шт.

5

171263C1

BELT,0.879" W x 146.73" L

V-BELT , Rotor drive 0.879" W x 146.73" L

1шт.

6

936161R1

PULLEY, jackshaft drive pulley, 10-1/4 in. OD, belt drive, gas engine

1шт.

6

936162R1

PULLEY, jackshaft drive, 9-1/2 in. OD, belt drive, diesel engine

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

171264C11

PULLEY ASSY, jackshaft, 18-1/4 in. OD

2шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

171265C1

BRACKET ASSY, jackshaft

1шт.

179019

SCREW, 3/8 x 1-1/4 C-Z hex-hd tap type D

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

4шт.

9

171268C1

HUB, chopper drive

1шт.

10

161741C91

BEARING, jackshaft inner ball

1шт.

11

161739C91

BEARING

jackshaft outer ball

1шт.

12

45650D

RETAINER

RING, jackshaft inner brg snap

2шт.

13

161582C1

SPACER, jackshaft bearing

1шт.

14

140347R2

WASHER, jackshaft outer

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

608700R1

WASHER

1-9/32 x 1 x 16 ga C-Z

3шт.

15

156221C91

PULLEY ASSY.

PULLER ASSY, drive belt idler, 8-3/4 in. OD

2шт.

16

171269C1

BRACKET, jackshaft idler

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 znd sq-nk crg

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

5шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

1шт.

17

936152R1

WASHER

idler mounting bracket

1шт.

18

171270C1

BRACKET ASSY, drive belt idler

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 znd sq-nk crg

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT, 3/8 x 1 C-Z slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z whiz lock

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

176019

SCREW, 3/8 x 1-1/4 C-Z hex-hd tap type D

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

5шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

1шт.

19

171273C11

SHIELD ASSY, jackshaft drive belt, hydrostatic drive

1шт.

19

171957C11

SHIELD ASSY, jackshaft drive belt, belt drive

1шт.

935736R1

NUT, WING

2шт.

20

171275C1

SHIELD, rotor belt tightener

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

171276C11

SHIELD W/PRODUCT GRAPHIC, rotor

1шт.

22

171277C21

SUPPORT ASSY, front shield front

1шт.

935736R1

NUT, WING

2шт.

23

171278C11

SUPPORT ASSY, front shield rear

1шт.

935736R1

NUT, WING

2шт.

24

171280C11

STRAP ASSY, shield front lower

1шт.

935736R1

NUT, WING

2шт.

25

171281C11

STRAP ASSY, rotor shield front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

935736R1

NUT, WING

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

2шт.

26

171282C11

STRAP ASSY, rotor shield rear

1шт.

935736R1

NUT, WING

1шт.

27

171285C1

SHIELD, front idler, gasoline engine

1шт.

28

171286C1

BRACKET ASSY, idler, hydrostatic drive

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

29

156221C91

PULLEY ASSY.

PULLEY, idler, 8-3/4 in. OD, hydrostatic drive

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 1-1/2 znd hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x 12 ga C-Z

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

30

172051C1

SHIELD ASSY, jackshaft

1шт.

31

TUBE, separator drive spring, refer to group 7 under separator drive control

1шт.
