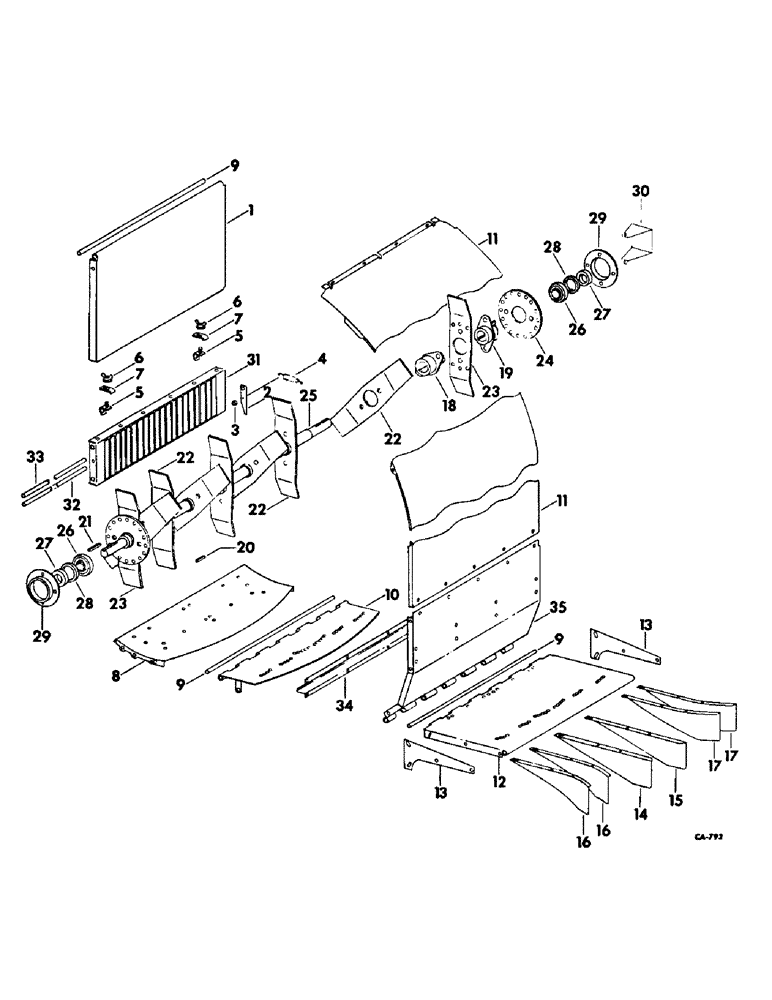

Запчасти Case IH 715 (20-10) - SEPARATOR, STRAW CHOPPER, CUTTING PARTS, SERIAL NO. 3250 AND BELOW Separation

1

171158C1

DEFLECTOR

front upper

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-truss-hd

2шт.

2

936135R1

BLADE

chopper

21шт.

3

567532R1

WASHER

SPACER, knife

21шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

21шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

21шт.

4

622016R1

SPRING

knife blade

3шт.

5

151200C11

BRACKET ASSY, spring rod retainer

2шт.

6

935736R1

NUT, WING

2шт.

7

151199C1

CLAMP, spring rod

2шт.

8

171159C1

DEFLECTOR ASSY, lower front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

9

159012C1

ROD

hinge

2шт.

10

171161C1

EXTENSION ASSY, lower front

1шт.

11

171163C1

DEFLECTOR, rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

16шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

12

161627C1

EXTENSION

rear deflector

1шт.

13

171164C1

SUPPORT, rear deflector

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

14

155131C1

DEFLECTOR

center LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

15

155132C1

DEFLECTOR, center RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

16

936124R1

DEFLECTOR

outer LH

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd whiz lock

2шт.

17

936125R1

DEFLECTOR

outer RH

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd whiz lock

2шт.

18

171167C1

HUB, rotor inner

9шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

18шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

18шт.

19

171168C1

HUB, rotor outer

2шт.

18800R1

BOLT, 7/16 x 2-1/2 hex-hd

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

11шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

11шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

20

575824R1

KEY,1/4" Sq x 3", Par

1/4 x 3 sq parallel

9шт.

21

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 1-1/2 parallel

2шт.

22

171169C2

BLADE

ROTOR, inner blade

9шт.

23

171170C2

ROTOR, outer blade

2шт.

24

171171C1

FLANGE, outer rotor

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q399

WASHER

11/32 x 1 x 16 ga C-Z

8шт.

25

171172C1

SHAFT, straw chopper

1шт.

26

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, straw chopper rotor shaft

2шт.

27

455112R11

COLLAR

W/SET SCREW LKG

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd

2шт.

28

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

bearing

2шт.

29

936130R1

FLANGE

bearing mounting

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

6шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

30

171179C1

COVER, rotor shaft RH

1шт.

31

171180C1

PANEL ASSY, knife support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

16шт.

475954R1

NUT

3/8 CDP whiz lock

4шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

32

171182C1

ROD, knife pivot

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

33

171183C1

ROD, blade spring

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

5шт.

34

172749C1

EXTENSION, air deflector

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

8шт.

35

173049C11

DEFLECTOR ASSY, hood rear lower

1шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8 x 1 C-Z hex-hd tap type D

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

4шт.
