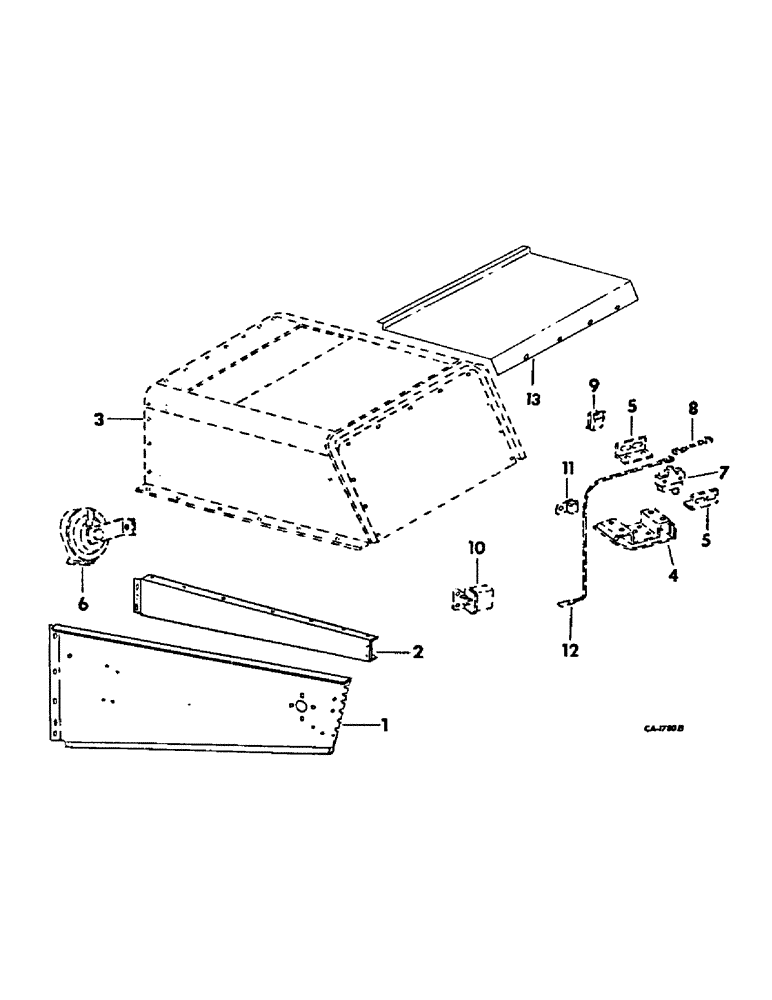

Запчасти Case IH 715 (20-09) - SEPARATOR, STRAW CHOPPER, SEPARATOR HOOD SIDE, WARNING HORN, CABLE, SWITCH AND RELAY Separation

1

171153C1

SIDE ASSY, hood lower LH, serial no. 3250 and below

1шт.

1

174705C1

SIDE ASSY, hood lower LH, serial no. 3251 and above

1шт.

1

171154C1

SIDE ASSY, hood lower RH, serial no. 3250 and below

1шт.

1

174706C1

SIDE ASSY.

SIDE ASSY, hood lower RH, serial no. 3251 and above

1шт.

2

171165C11

SIDE ASSY, separator hood center inner LH

1шт.

2

171166C11

SIDE ASSY, separator hood center inner RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 hex-hd

1шт.

175997

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

SCREW, 5/16 x 1-1/4 hex-hd

1шт.

176019

SCREW, 3/8 x 1-1/2 hex-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga

1шт.

3

HOOD ASSY, separator, refer to this group under separator hood

1шт.

4

BRACKET, warning switch, refer to group 8 under wiring diagrams

1шт.

5

SUPPORT, warning switch, refer to group 8 under wiring diamgrams

1шт.

6

HORN, warning, refer to group 8 under wiring diagrams

1шт.

7

SWITCH, micro, refer to group 8 under wiring diagrams

1шт.

8

WIRE, micro switch ground, refer to group 8 under wiring diagrams

1шт.

9

CLIP, wire, refer to group 8 under clips, grommets and cable ties

1шт.

10

RELAY ASSY, refer to group 8 under wiring diagrams

1шт.

11

CLIP, wire, refer to group 8 under clips, grommets and cable ties

1шт.

12

CABLE, warning switch to relay, refer to group 8 under wiring diagrams

1шт.

13

175054C1

SHIELD, hood top rear, for corn

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

4шт.
