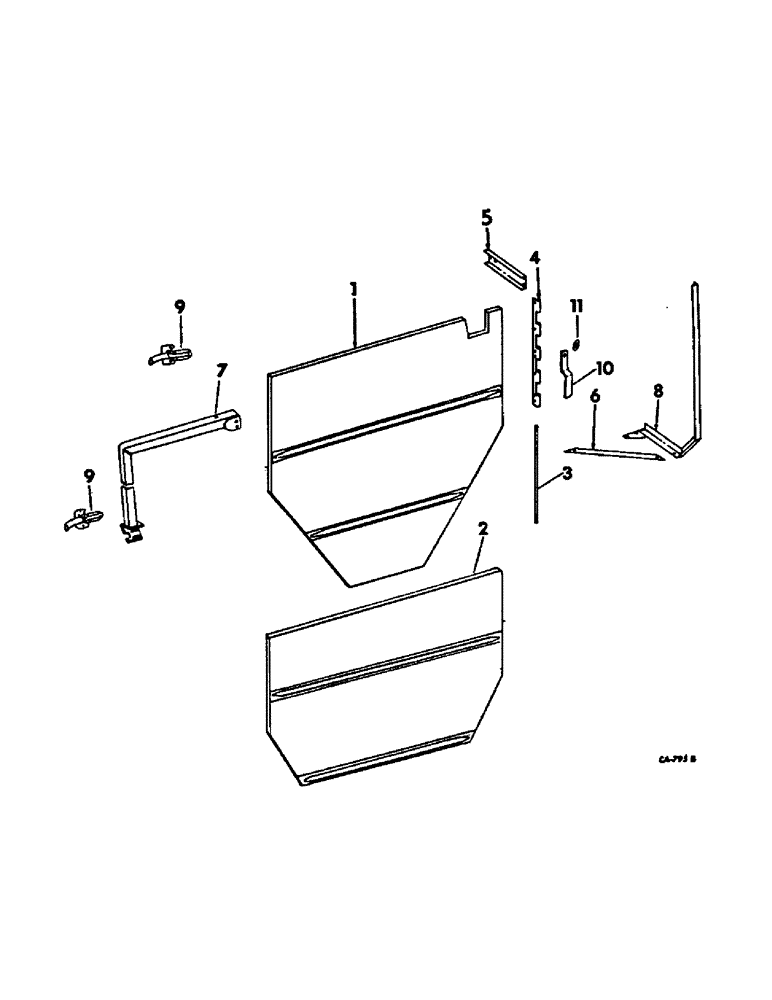

Запчасти Case IH 715 (20-07) - SEPARATOR, SEPARATOR SHIELD LEFT Separation

1

171561C1

SHIELD ASSY, separator left, grain tank w/rubber tires

1шт.

2

171400C1

SHIELD ASSY, separator left, grain tank w/track, serial no. 8000 and below

1шт.

3

172707C1

ROD, separator left shield hinge

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

4

171417C1

HINGE, separator left shield inner

1шт.

5

939890R1

CHANNEL, top LH shield

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

6

939858R1

STRAP, separator left shield support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

171418C1

SUPPORT ASSY, left shield lower latch, grain tank w/rubber tires

1шт.

7

171419C1

SUPPORT ASSY, left shield lower latch, grain tank w/track, serial no. 8000 and below

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

171563C1

SUPPORT ASSY, separator left shield hinge

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

168481C1

LATCH ASSY.

LATCH ASSY, left shield, grain tank

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

no 10 x 5/8 C-Z slt-pan-hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

4шт.

10

171862C1

HOLDER, LH separator shield

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

11

318329R1

WASHER

spring

2шт.
