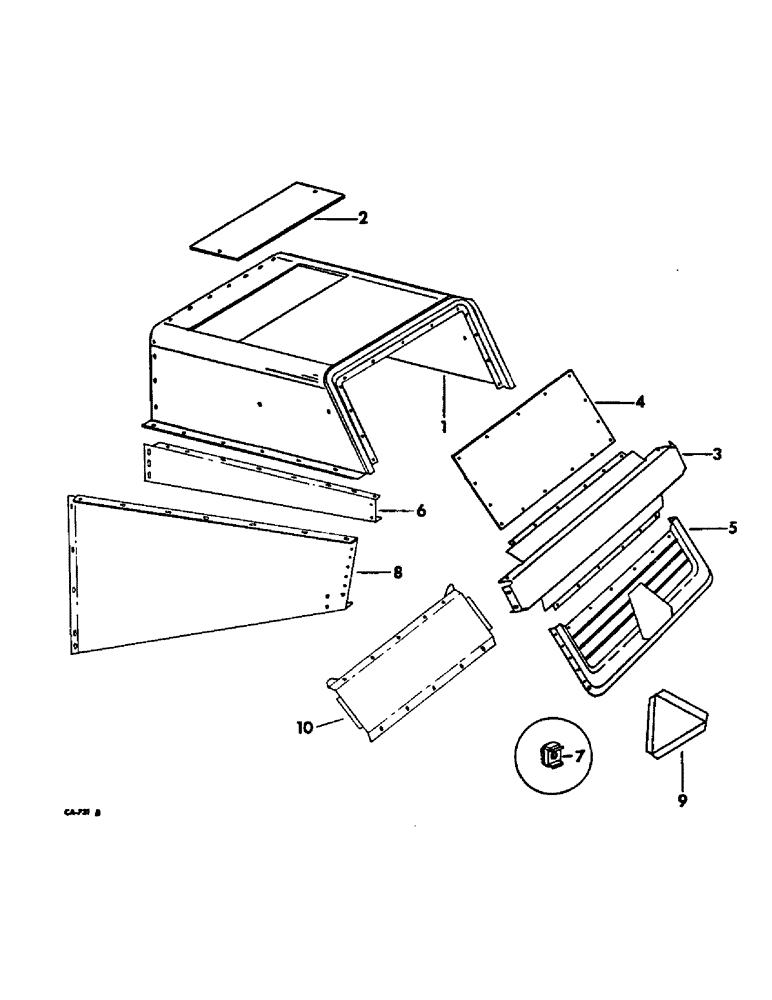

Запчасти Case IH 715 (20-05) - SEPARATOR, SEPARATOR HOOD Separation
№
Артикул
Название
Примечание
Количество
1
170911C1
HOOD ASSY, separator top
1шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 znd hex-hd mach
10шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
12шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
2шт.
2
170919C1
DOOR, separator hood top
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
2шт.
459063R1
SPRING NUT
5/16 grip
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
3
170920C1
SUPPORT ASSY, hood rear center
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
14шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
14шт.
4
170921C1
SHEET, separator hood rear
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
14шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
14шт.
5
160475C21
HOOD
ASSY, separator rear lower
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 whiz lock
15шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
15шт.
6
170923C1
STIFFENER, separator hood LH
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 whiz lock
28шт.
475954R1
NUT
3/8 whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
27шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
172487
SCREW,Hex, 3/8" - 16 x 1"
3/8 x 1 C-Z hex-hd tap type D
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x 16 ga C-Z
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120394
WASHER,3/8", SAE
WASHER, 13/32 x 13/16 x 16 ga C-Z
3шт.
6
170924C1
STIFFENER, separator hood RH
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 hex-hd
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 whiz lock
28шт.
475954R1
NUT
3/8 whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
27шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
172487
SCREW,Hex, 3/8" - 16 x 1"
3/8-16 x 1 hex-hd
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x 16 ga.
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
7
166705C1
NUT
5/16 grip
1шт.
8
171089C1
SIDE, separator hood lower LH, not straw chopper
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 znd sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
10шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 C-Z whiz lock
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
9шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x 16 ga C-Z
1шт.
8
171090C1
SIDE, separator hood lower RH, not straw chopper
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 znd sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
10шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
9шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x 16 ga C-Z
1шт.
9
407263R1
PRODUCT GRAPHIC,SMV Triangle Yellow Orange
SMV emblem
1шт.
10
174935C1
FILLER ASSY, separator hood rear, not straw chopper
1шт.
Выбрано товаров: 61
