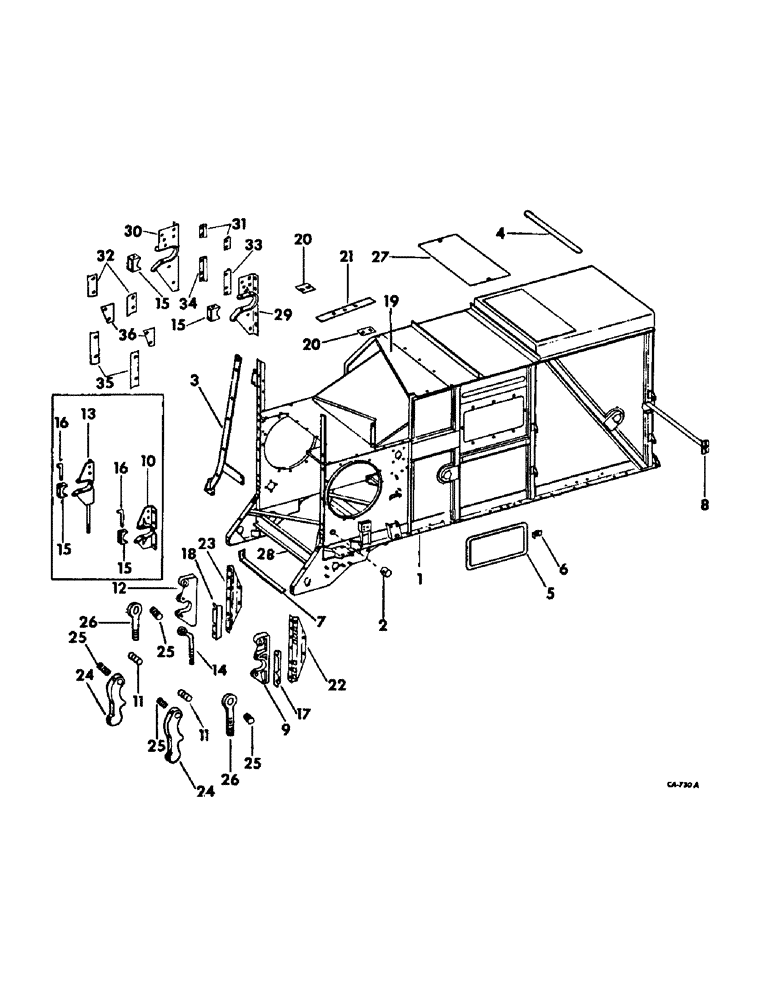

Запчасти Case IH 715 (20-02) - SEPARATOR, SEPARATOR AND RELATED PARTS Separation

1

171046C91

BODY ASSY, separator, includes ref. nos. 2 and 28, gasoline and diesel engine, belt drive

1шт.

1

171048C91

BODY ASSY, separator, includes ref. nos. 2 and 28, gasoline and diesel engine, hydrostatic drive

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 znd hex-hd mach

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

18268R1

BOLT, 3/8 x 4-3/4 znd hex-hd mach

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 hex-hd

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

475954R1

NUT

3/8 whiz lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex.

1шт.

21330R1

NUT,1/2"-13, G8

1/2 hex. type 8

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

21434R1

NUT,5/8"-11, G8

5/8 hex. type 8

1шт.

280954

NUT,3/4"-10, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 C-Z hex-hd tap type D

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 znd hex-hd cap

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8 x 1-3/4 znd hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

607895R1

WASHER

.53 x 1 x .12

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga C-Z

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

138561

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 int-tooth lock

1шт.

2

157560C1

BUSHING

cyl concave control shaft

2шт.

3

171856C1

BRACE ASSY, Serial Range: separator-axle

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

181416R1

SCREW, w/nylon pellet insert hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

4

167409C1

TAPE, separator top

7шт.

5

568807R1

DOOR, straw rack inspection

2шт.

6

565449R1

CLIP

straw rack inspection door

16шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

16шт.

935736R1

NUT, WING

NUT, 5/16 wing

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

7

589562R1

STIFFENER, transmission shift bracket lower

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

631201R91

TIE ASSY, separator rear cross

1шт.

9

170708C1

SUPPORT, feeder pivot left, not windrow special, serial no. 8000 and below

1шт.

21330R1

NUT,1/2"-13, G8

1/2 znd hex. type 8

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z whiz lock

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 znd hex-hd

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

10

628323R91

BRACKET ASSY, feeder pivot left, for windrow special, serial no. 8000 and below

1шт.

21330R1

NUT,1/2"-13, G8

1/2-20 znd hex. type 8

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 hex-hd cap type 8

4шт.

366864

WASHER, 1/2 quad rib lock

4шт.

11

170702C1

PIN, feeder pivot clamp, not windrow special, serial no. 8000 and below

2шт.

12

170709C1

SUPPORT, feeder pivot right, not windrow special, serial no. 8000 and below

1шт.

21330R1

NUT,1/2"-13, G8

1/2 znd hex. type 8

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z whiz lock

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 znd hex-hd

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

13

634200R91

BRACKET ASSY, feeder pivot right, for windrow special, serial no. 8000 and below

1шт.

21330R1

NUT,1/2"-13, G8

1/2 znd hex. type 8

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 hex-hd cap type 8

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

14

170705C1

BOLT, feeder pivot leveling, not windrow special, serial no. 8000 and below

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex. jam

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

15

628332R1

BLOCK

RETAINER, FDR piv SH, for windrow special, serial no. 8000 and below

2шт.

15

177413C1

RETAINER

feeder pivot, serial no. 8001 and above

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

SCREW, 5/8 x 5-1/2 hex-hd

2шт.

16

628846R1

PIN, for piv brkt, for windrow special

2шт.

520175R1

CLIP

PIN, QA cotter

2шт.

17

172261C1

SPACER

SEAL, for pivot plate left, serial no. 8000 and below

1шт.

18

172262C1

SPACER

SEAL, for pivot plate right, serial no. 8000 and below

1шт.

19

629843R1

EXTENSION

separator top

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

24272R1

SCREW, no. 10 x 1/2 slt-pan-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

629505R1

PLATE, cyl beater cover

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

629506R1

FILLER, left front separator side

1шт.

22

171547C1

REINFORCEMENT, left front post

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

23

171548C1

REINFORCEMENT, right front post

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

24

170706C1

CLAMP, feeder pivot, not windrow special, serial no. 8000 and below

2шт.

25

170703C1

SCREW, special set, not windrow special, serial no. 8000 and below

2шт.

26

170704C1

EYEBOLT, feeder pivot clamp, not windrow special, serial no. 8000 and below

2шт.

280954

NUT,3/4"-10, G5

2шт.

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x 10 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

27

170437C1

DOOR, separator top

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

629980R1

TIE, separator front cross

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

445957

INDICATOR

1/4 x 3/8 slt-pan-hd

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

29

177399C1

BRACKET

ASSY, feeder pivot LH, serial no. 8001 and above

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

21330R1

NUT,1/2"-13, G8

1/2 hex.

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

120657

SCREW

1/4 x 1 F-slt-hd

4шт.

27125R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2 x 1-1/2 hex-hd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

366864R1

WASHER, 1/2 rib lock

4шт.

30

177400C1

BRACKET ASSY, feeder pivot RH, serial no. 8001 and above

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

21330R1

NUT,1/2"-13, G8

1/2 hex.

4шт.

120657

SCREW

1/4 x 1 F-slt-hd

4шт.

27125R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2 x 1-1/2 hex-hd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

366864R1

WASHER, 1/2 rib lock

4шт.

31

177407C1

SEAL

pivot side upper, serial no. 8001 and above

2шт.

32

177408C1

RETAINER, pivot upper seal, serial no. 8001 and above

2шт.

33

177409C1

SEAL

feeder pivot lower LH, serial no. 8001 and above

1шт.

34

177410C1

SEAL

feeder pivot lower RH, serial no. 8001 and above

1шт.

35

177411C1

RETAINER

feeder seal, serial no. 8001 and above

2шт.

36

177412C1

STRIP, feeder pivot bracket and separator side seal, not windrow special, serial no. 8001 and above

1шт.
