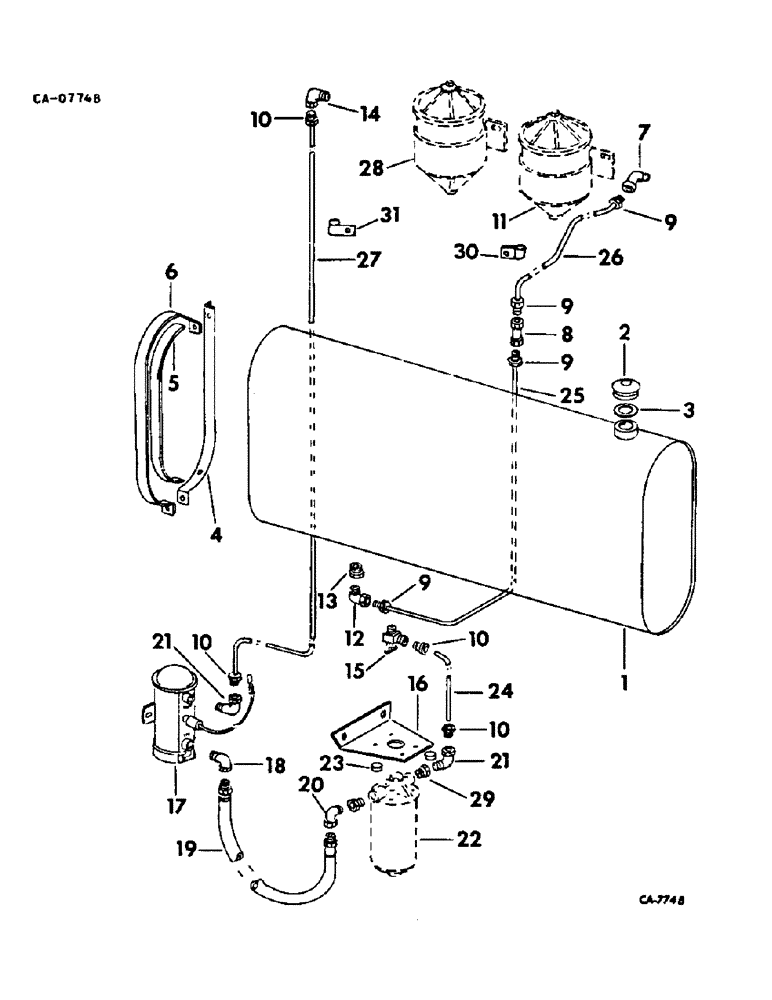

Запчасти Case IH 715 (12-16) - POWER, FUEL TANK, LINES AND PUMP, DIESEL ENGINE Power

1

631754R91

TANK ASSY, fuel 45 gal., includes ref nos 2 and 3

1шт.

2

23995DC

FILLER CAP

CAP, filler, includes ref no 3

1шт.

3

23997DC

GASKET, filler cap

1шт.

4

564529R1

SUPPORT, fuel tank

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

174608C1

BOLT,Hex, 3/8" x 1 1/2"

special mach

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

LINING, fuel tank, order cotton webbing from bulk stock 1 x 56 in. 2 ply

2шт.

6

569462R2

STRAP, fuel tank sprt

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

fuel upper return line

1шт.

8

50050D

UNION, fuel return line

1шт.

9

222-503

TUBE NUT,1/2"-20

NUT, fuel return line

4шт.

10

222-504

TUBE NUT,9/16"-20

NUT, fuel line

4шт.

11

FILTER ASSY, final fuel, refer to eng-5 parts catalog under section B

1шт.

12

36391D

ELBOW,90 Degree x 1/4" NPT x 1/2"-20

fuel tank lwr return line

1шт.

13

119931

REDUCER, 3/8 x 1/4 plain

1шт.

14

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

fuel line up

1шт.

15

307881R91

COCK

VALVE ASSY, fuel shut-off

1шт.

16

172108C1

SUPPORT, fuel filter

1шт.

17

170352C1

PUMP

ASSY, elect fuel

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4 x 5/8 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

118755

ELBOW

90 deg flared tube

1шт.

19

277041R91

PIPE CLAMP

HOSE ASSY, filter to fuel pump

1шт.

20

105423

ELBOW,90 Degree, 1/4" NPT Street

1/4 x 90 deg street

1шт.

21

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

fuel pump and filter

2шт.

22

FILTER ASSY, fuel, refer to this group under fuel filter

1шт.

23

M22657

SPACER, 3/8 x 3/4 std pipe

4шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 znd hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

24

TUBE, fuel tank to filter, use 22 in. of 3/8 in. O.D. copper tubing from 50-ft roll marked 995063R1 and two nuts 37165D

1шт.

25

TUBE, fuel return lower, use 66 in. of 5/16 in. O.D. copper tubing from 50-ft roll marked 995062R1 and two nuts 29899D

1шт.

26

TUBE, fuel return upper, use 45 in. of 5/16 O.D. copper tubing from 50-ft roll marked 995062R1 and two 29899D nuts

1шт.

27

TUBE, fuel pump to final fuel filter, use 84 in. of 3/8 in. O.D. copper tubing from 50-ft roll marked 995063R1 and two nuts 37165D

1шт.

28

FILTER ASSY, primary fuel, refer to eng-5 parts catalog under section B

1шт.

29

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

ADAPTER, reducing pipe

2шт.

30

633125R2

CLAMP

CLIP, fuel return upper

1шт.

30

589980R2

CLIP

return fuel line

1шт.

18788R1

BOLT

3/8 x 3/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

587501R2

CLAMP

CLIP, fuel pump to engine line

1шт.
