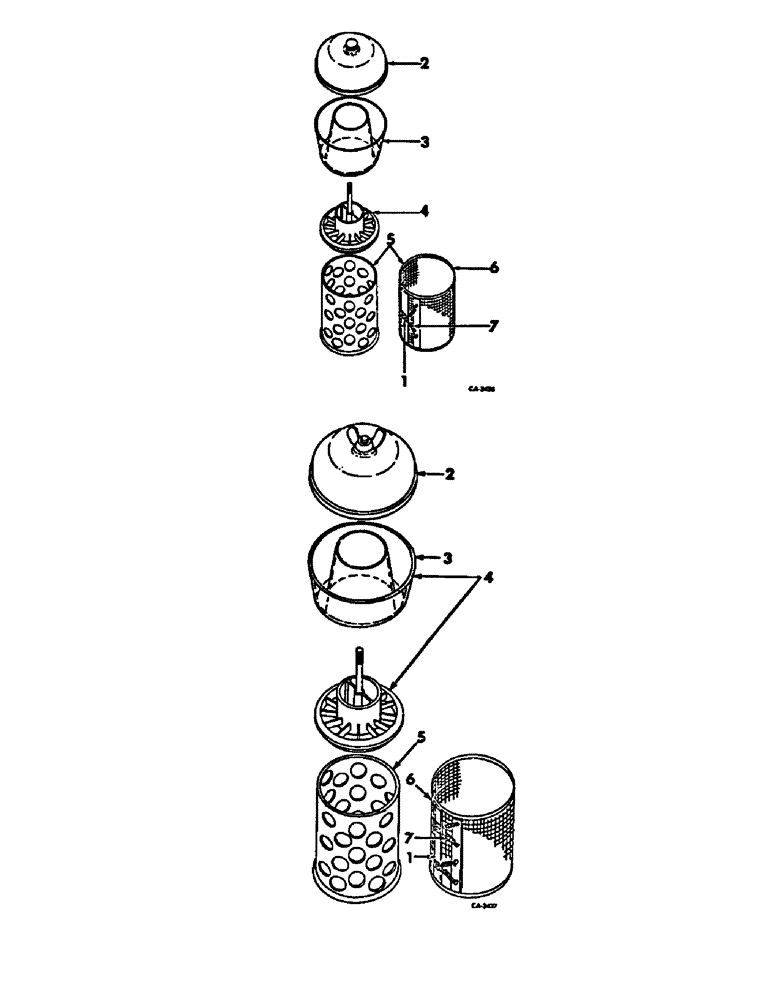

Запчасти Case IH 715 (12-10) - POWER, PRE-CLEANER, PRE-SCREENER, CARBURETED COMBINES Power

378802R91

CLEANER

PARTS ACCESSORY, pre-cleaner, pre-screener assy

1шт.

1

353758R1

CLIP

screen lock tension spring

1шт.

2

365412R91

COVER

ASSY, pre-cleaner

1шт.

3

365413R1

BOWL

BODY, pre-cleaner

1шт.

4

365415R91

SLEEVE

ASSY, pre-cleaner

1шт.

5

381601R91

BODY, pre-screener

1шт.

6

378724R91

SCREEN

W/TWO CLIPS, 353758R1 and two springs, 353639R1 assy, pre-screener

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.
