(12-10[1]) - POWER, PRE-CLEANER, PRE-SCREENER, DIESEL COMBINES

Запчасти Case IH 715 (12-10[1]) - POWER, PRE-CLEANER, PRE-SCREENER, DIESEL COMBINES Power

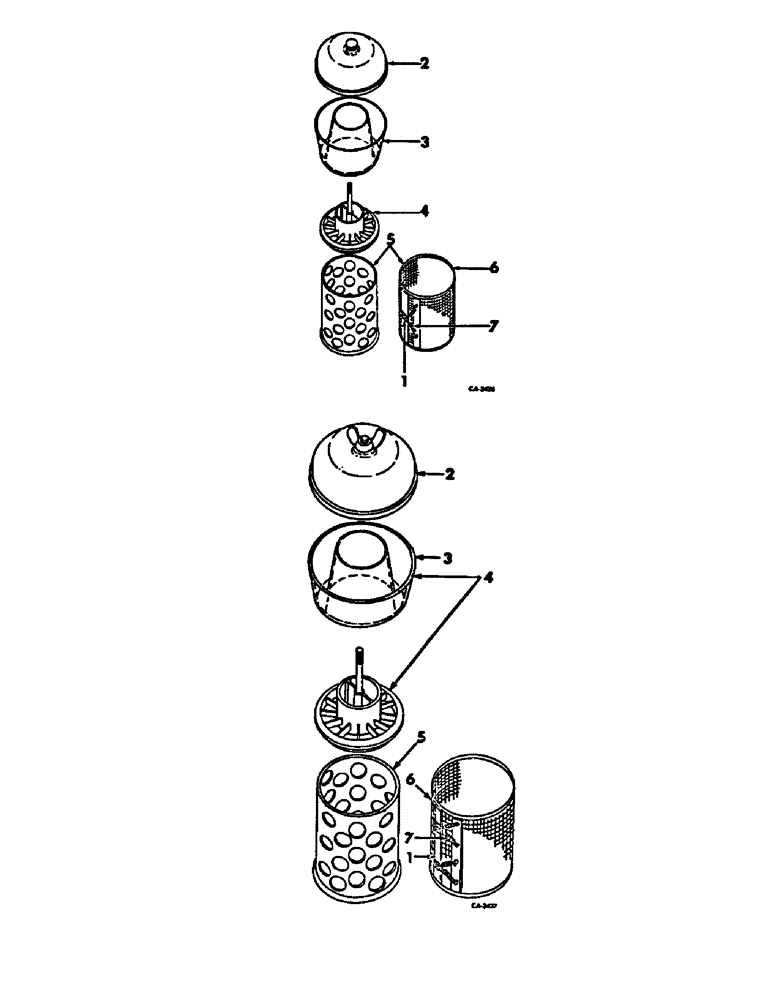

Схема запчастей Case IH 715 - (12-10[1]) - POWER, PRE-CLEANER, PRE-SCREENER, DIESEL COMBINES Power
6
6
4
7
7
2
1
5
3
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

384397R91

CLEANER

PARTS ACCESSORY, pre-cleaner, pre-screener assy

1шт.

1

353758R1

CLIP

screen lock tension spring

2шт.

2

COVER ASSY, pre-cleaner, on orders for cover furnish parts accessory 384397R91

1шт.

3

277377R1

FILTER BOWL

BODY, pre-cleaner

1шт.

4

277375R91

AIR PRE-CLEANER ASSY

SLEEVE ASSY, pre-cleaner

1шт.

5

384606R91

BODY, pre-screener

1шт.

6

384543R91

SCREEN

W/TWO CLIPS, 353758R1 and four springs, 353639R1 assy, pre-screener

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.
