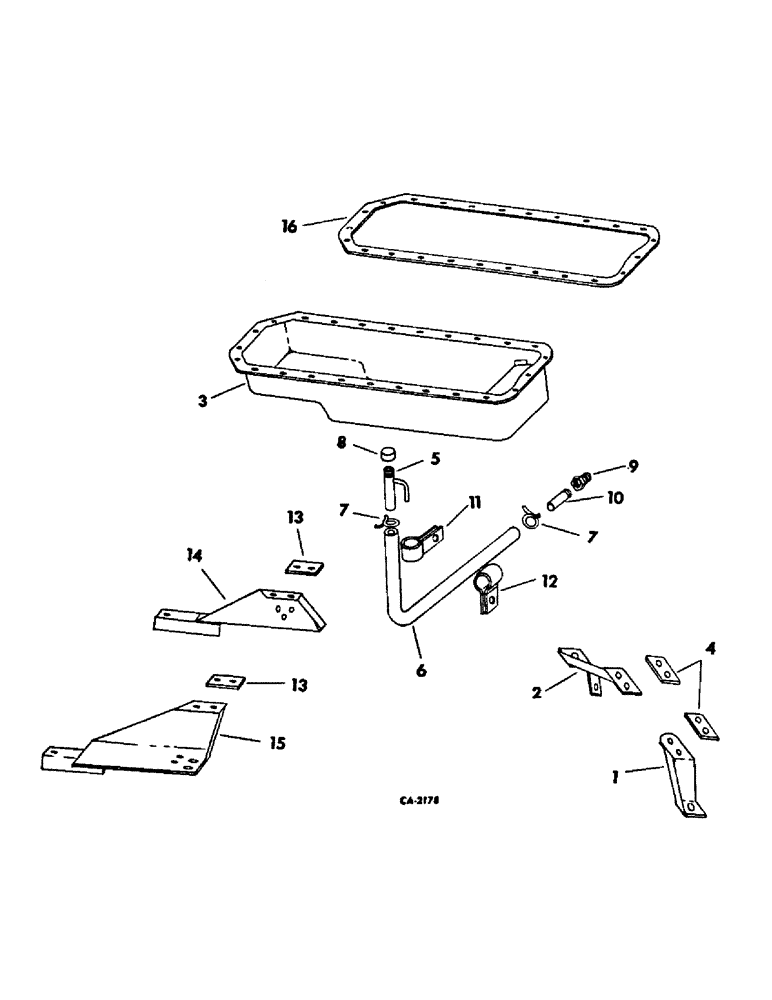

Запчасти Case IH 715 (12-07) - POWER, OIL DRAIN HOSE, CLAMP, CAP, PIPE AND ENGINE SUPPORTS Power

1

150849C91

SUPPORT ASSY, engine left rear

1шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2 ESNA lock

2шт.

2

172236C1

SUPPORT ASSY, engine right rear

1шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2 ESNA lock

2шт.

3

601380C12

PAN ASSY, crankcase oil

1шт.

444630

PLUG,Hex Hd, 1/2"-14

1/2-14 hex-hd pipe

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil pan Hex, 5/16"-18 x 3/4", G5, Full Thd

25шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

5шт.

4

936521R1

PAD

engine base mount rubber

2шт.

5

165203C91

FITTING

DRAIN ASSY, oil pan

1шт.

6

165202C1

HOSE,0.63" ID x 50.00"

Oil Drain 0.63" ID x 50.00"

1шт.

7

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

2шт.

8

221-1524

CAP,3/8" NPT

1/2 pipe zinc dull

1шт.

9

175778H1

ADAPTER

REDUCER, 1/2 to 3/8 pipe

1шт.

10

165204C1

PIPE, oil drain

1шт.

11

587501R2

CLAMP

CLIP, oil drain hose

1шт.

12

361656C1

CLAMP,1 3/16", Insul, 3/8" Bolt

CLIP, oil drain hose

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

13

385874R1

PAD

front cover engine

2шт.

14

533830R1

SUPPORT ASSY, front RH

1шт.

584434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 hex-hd cap

1шт.

15

533827R2

SUPPORT ASSY, front LH

1шт.

584434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 hex-hd cap

1шт.

16

369984R1

GASKET

oil pan

1шт.
