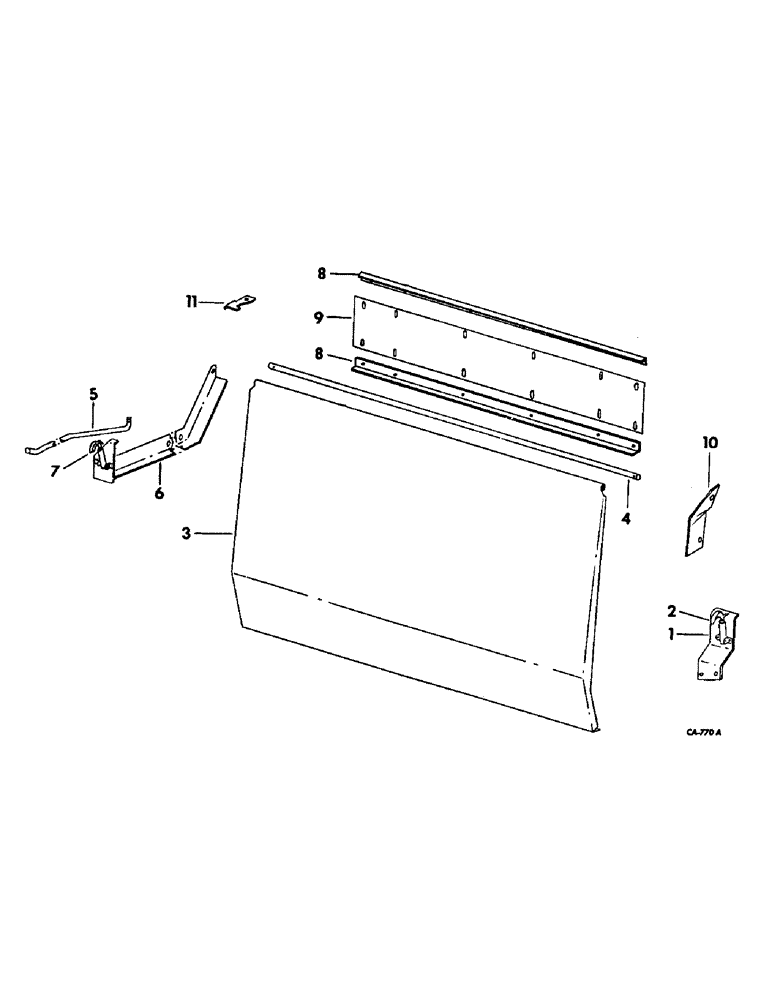

Запчасти Case IH 715 (12-05) - POWER, ENGINE COVER, GASOLINE ENGINE Power

!

171661C91

LATCH ASSY, engine cover RH rear, includes ref no. 2

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, engine cover

1шт.

104068

RIVET, 3/16 x 5/8 small button-hd But Hd, 3/16" x 5/8"

2шт.

3

173041C1

COVER ASSY, engine

1шт.

4

939521R1

ROD, engine cover hinge

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

5

634107R1

ROD, engine cover, not grain tank extension

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

6

171670C91

LATCH ASSY, engine cover LH, includes ref no. 7

1шт.

7

353443R91

LATCH ASSY.

LATCH ASSY, engine cover

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 button-hd

2шт.

8

654941R1

STIFFENER, engine cover hinge seal, grain tank

2шт.

9

654940R2

SEAL

engine cover hinge, grain tank

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

12шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

12шт.

10

172635C1

SUPPORT, engine cover hinge RH

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

172159C1

LOCK, engine cover, for grain tank extension

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 znd hex nylon insert lock

1шт.
