(12-03) - POWER, EXHAUST MUFFLER, DIESEL ENGINE COMBINES, SERIAL NO. 5328 AND BELOW

Запчасти Case IH 715 (12-03) - POWER, EXHAUST MUFFLER, DIESEL ENGINE COMBINES, SERIAL NO. 5328 AND BELOW Power

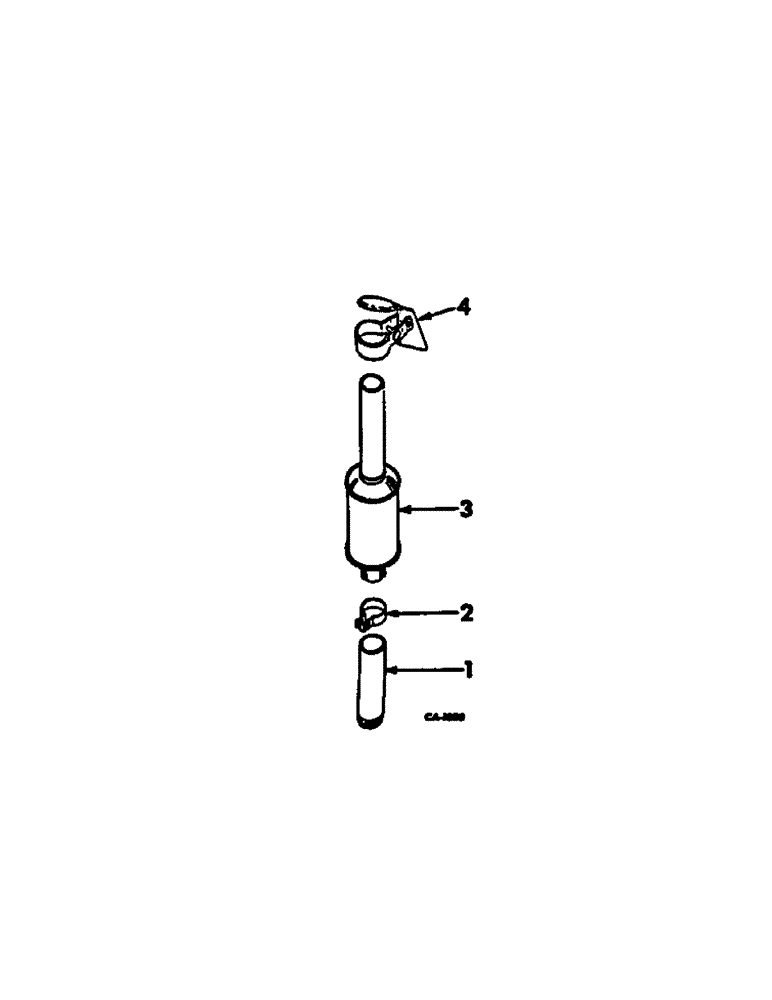

Схема запчастей Case IH 715 - (12-03) - POWER, EXHAUST MUFFLER, DIESEL ENGINE COMBINES, SERIAL NO. 5328 AND BELOW Power
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

664386R1

PIPE

exhaust

1шт.

2

350602R1

CLAMP

exhaust muffler

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 znd hex-hd cap

1шт.

3

384346R92

MUFFLER

exhaust

1шт.

4

283280R91

CAP

ASSY, weather, optional w/321574R91

1шт.

4

321574R91

PLUG

CAP ASSY, weather, optional w/283280R91

1шт.
