(12-02[1]) - POWER, EXHAUST SYSTEM, CARBURETED ENGINES, SERIAL NO. 5329 AND ABOVE

Запчасти Case IH 715 (12-02[1]) - POWER, EXHAUST SYSTEM, CARBURETED ENGINES, SERIAL NO. 5329 AND ABOVE Power

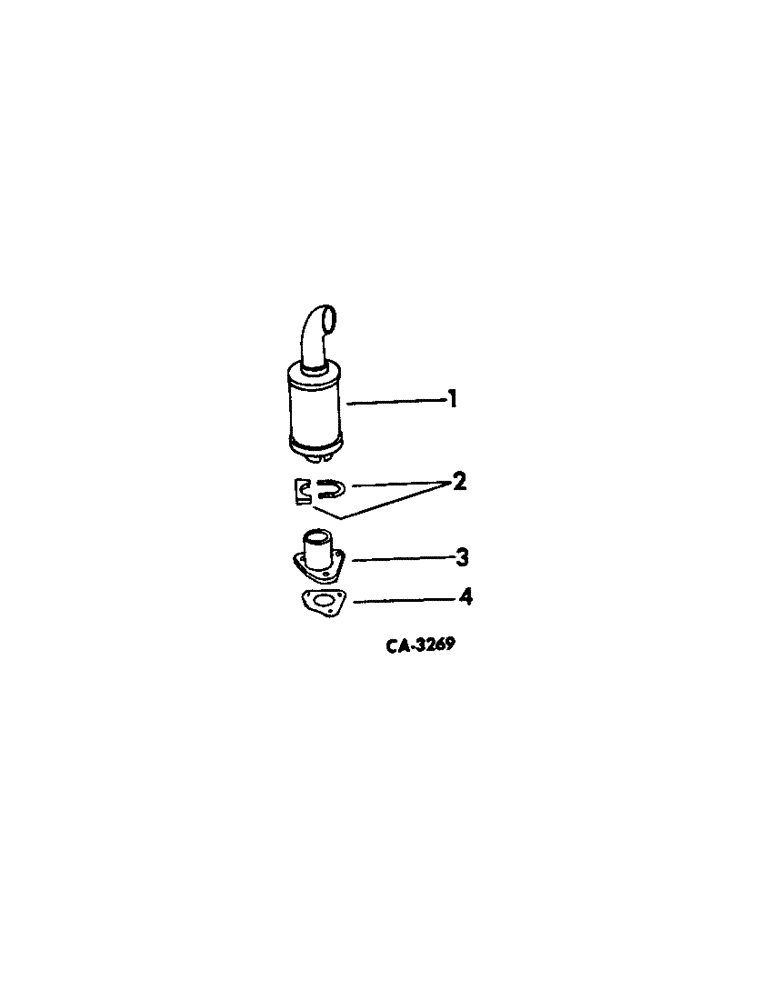

Схема запчастей Case IH 715 - (12-02[1]) - POWER, EXHAUST SYSTEM, CARBURETED ENGINES, SERIAL NO. 5329 AND ABOVE Power
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

548369R1

MUFFLER

exhaust, serial no. 8000 and below

1шт.

1

401776R1

MUFFLER

exhaust, serial no. 8001 and above

1шт.

2

68217C91

CLAMP

ASSY, exhaust muffler

1шт.

3

533815R1

FLANGE

exhaust

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

SCREW, 3/8-16 x 1 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

673352R1

GASKET

exhaust flange

1шт.
