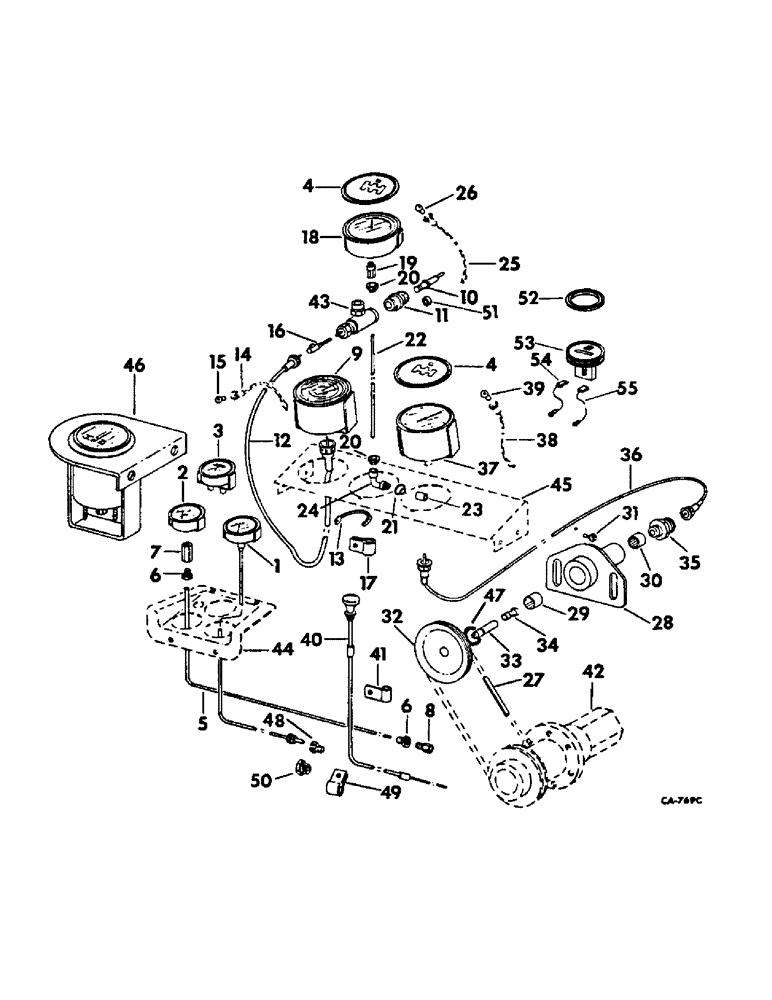

Запчасти Case IH 715 (11-02) - INSTRUMENTS, INSTRUMENTS AND GAUGES Instruments

170882C91

PARTS ACCESSORY, engine load indicator, incl ref. nos. 18 thru 26, not used w/diesel engine

1шт.

1

151726C91

GAUGE ASSY.

GAUGE ASSY, heat indicator

1шт.

2

393488R91

SWITCH

GAUGE ASSY, oil pressure

1шт.

3

154818C91

GAUGE ASSY.

GAUGE ASSY, charge indicator

1шт.

4

167008C1

PLUG, instrument panel, not used when cylinder tachometer and engine load indicator are installed

2шт.

5

TUBE, oil pressure gauge, use 108 in. of 1/8 in. OD copper tubing from 50 ft roll marked 995059R1

1шт.

6

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 hi-duty tube fitting

2шт.

7

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, 1/8 NPTF fem hi-duty tube fitting

1шт.

8

59939D

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR, 1/8 NPTF male hi-duty tube fitting

1шт.

9

161258C91

SPEEDOMETER ASSY, serial no. 3250 and below

1шт.

9

160700C91

SPEEDOMETER

ASSY, serial no. 3251 and above

1шт.

10

673050R91

SHAFT

TIP & WASHER ASSY, speedometer

1шт.

11

128584HX

SLEEVE

& SEAL ASSY, speedometer

1шт.

12

172207C1

CABLE

SHAFT ASSY, speedometer flexible

1шт.

13

702093C1

CABLE TIE

CLAMP, speedometer flexible shaft

4шт.

14

SOCKET ASSY, instrument light, refer to group 8 under wiring diagram

1шт.

15

BULB, instrument gauge, refer to group 8 under wiring diagram

1шт.

16

163617C1

PIN

TIP, angle joint drive

1шт.

17

589980R2

CLIP

speedometer flexible shaft angle

1шт.

18

168936C1

GAUGE ASSY, engine load indicator, not diesel engine

1шт.

19

165205C1

CONNECTOR, vacuum tube, not diesel engine

1шт.

20

165207C1

NUT

vacuum tube, not diesel engine

2шт.

21

389908R91

ADAPTER

ASSY, not diesel engine

1шт.

22

HOSE, engine indicator, not diesel, order 13-ft 2 in. of 1/8 OD nylon hose from 50-ft roll marked 628461R1

1шт.

23

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

REDUCER, 1/8 x 1/4 plain brass pipe connector, not diesel engine

1шт.

24

289970C91

FITTING

ELBOW, 1/8 pipe to 1/8 tube male 90 deg, not diesel engine

1шт.

25

SOCKET ASSY, instrument light, not diesel engine, refer to group 8 under wiring diagram

1шт.

26

BULB, instrument gauge no. 57, not diesel engine, refer to group 8 under wiring diagram

1шт.

27

171146C1

BELT,0.240" W x 44.28" L

V-BELT , Cyl speed indicator drive 0.240" W x 44.28" L

1шт.

28

171147C12

HOUSING

W/BRGS, tachometer jackshaft, includes ref nos 19 and 30

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga

2шт.

29

336180R91

NEEDLE BEARING

ASSY, tachometer jackshaft outer

1шт.

30

336180R91

NEEDLE BEARING

ASSY, tachometer jackshaft inner

1шт.

31

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg angle

1шт.

32

164887C1

PULLEY

tachometer driven, 4 in. O.D.

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

33

173582C91

SHAFT

JACKSHAFT ASSY, tachometer drive, includes ref no. 34

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

34

164892C1

BUSHING

drive

1шт.

35

164884C1

ADAPTER

UNION, tachometer flexible shaft

1шт.

36

164883C91

HOSE ASSY.

SHAFT ASSY, tachometer flexible

1шт.

37

159884C91

INDICATOR

TACHOMETER ASSY, cyl

1шт.

38

SOCKET ASSY, instrument light, refer to group 8 under wiring diagram

1шт.

39

BULB, instrument gauge no. 57, refer to group 8 under wiring diagram

1шт.

40

174488C1

CABLE

ASSY, choke, gasoline engine

1шт.

41

362127R1

CLIP

choke cable, gasoline engine

2шт.

42

HUB, cylinder driven, refer to group 21 under cylinder drive and slip clutch

1шт.

43

156233C91

JOINT ASSY, speedometer flexible shaft angle, 1. to .5 ratio, transmission w/15/40 gears rice belt drive w/23.1-34 main wheel tires, transmission w/27/28 gears for track, serial no. 3250 and below

1шт.

43

156233C91

JOINT ASSY, speedometer flexible shaft angle, 1. to .5 ratio, transmission w/21/34 gears rice w/23.1-26 main wheel tires, serial no. 3251 and above

1шт.

43

161276C1

JOINT ASSY, speedometer flexible shaft angle, 1. to .416 ratio, transmission w/15/40 gears rice belt w/23.1-26 main wheel tires, serial no. 3250 and below

1шт.

43

161276C1

JOINT ASSY, speedometer flexible shaft angle, 1. to .416 ratio, transmission w/15/40 gears rice belt w/23.1-26 and 23.1-34 main wheel tires, transmission w/27/28 gears and track, serial no. 3251 thru 12000

1шт.

43

160701C1

DRIVE

JOINT ASSY, speedometer flexible shaft angle, 1. to .866 ratio, transmission w/21/34 gears rice w/hydrostatic drive w/23.1-34 main wheel tires, serial no. 3250 and below

1шт.

43

160701C1

DRIVE

JOINT ASSY, speedometer flexible shaft angle, 1. to .866 ratio, transmission w/27/28 gears, grain and window special w/18.4-26 and 23.1-26 main wheel tires, serial no. 3251 and above

1шт.

43

156234C91

JOINT ASSY, speedometer flexible shaft angle, 1. to .75 ratio, transmission w/21/34 gears rice w/23.1-26 main wheel tires, serial no. 3250 and below

1шт.

43

156234C91

JOINT ASSY, speedometer flexible shaft angle, 1. to .75 ratio, transmission w/27/28 gears grain and window special w/16.9-26 main wheel tires, serial no. 3251 thru 12000

1шт.

43

156232C91

DRIVE

JOINT ASSY, speedometer flexible shaft angle, 1. to 1. ratio, transmission w/27/28 gears grain and window special, w/16.9-26, 18.4-26 and 23.1-26 main wheel tires, serial no. 3250 and below

1шт.

43

161275C1

JOINT ASSY, speedometer flexible shaft angle, 1. to .666 ratio, transmission w/21/34 gears rice belt w/23.1-26 main wheel tires, serial no. 3250 and below

1шт.

43

161275C1

JOINT ASSY, speedometer flexible shaft angle, 1. to .666 ratio, transmission w/21/34 gears rice w/23.1-34 main wheel tires, serial no. 3251 and above

1шт.

44

SUPPORT, operators instrument gauge, refer to group 13 under instrument panel, cover and control sheet

1шт.

45

COVER, instrument gauge panel, refer to group 13 under instrument panel, cover and control sheet

1шт.

46

407206R1

KIT

hour meter, parts accessory, serial no. 19000 and below

1шт.

47

324050R1

SNAP RING

tachometer jackshaft

1шт.

48

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

ADAPTER, 3/4-1/2 zid reducing pipe, diesel engine, serial no. 8001 and above

1шт.

49

140577

CLAMP, choke cable, gasoline engine

1шт.

50

537487R1

ADAPTER

water temperature gauge, for diesel engine, serial no. 8001 and above

1шт.

51

128585H

PACKING RING

SEAL, sleeve

1шт.

52

336181R91

SEAL

SEAL, oil

1шт.

53

389985R92

METER

HOURMETER, serial no. 19001 and above

1шт.

54

195786C1

CABLE, ground

1шт.

55

196501C1

CABLE, fuse, Serial Range: panel-hourmeter

1шт.
