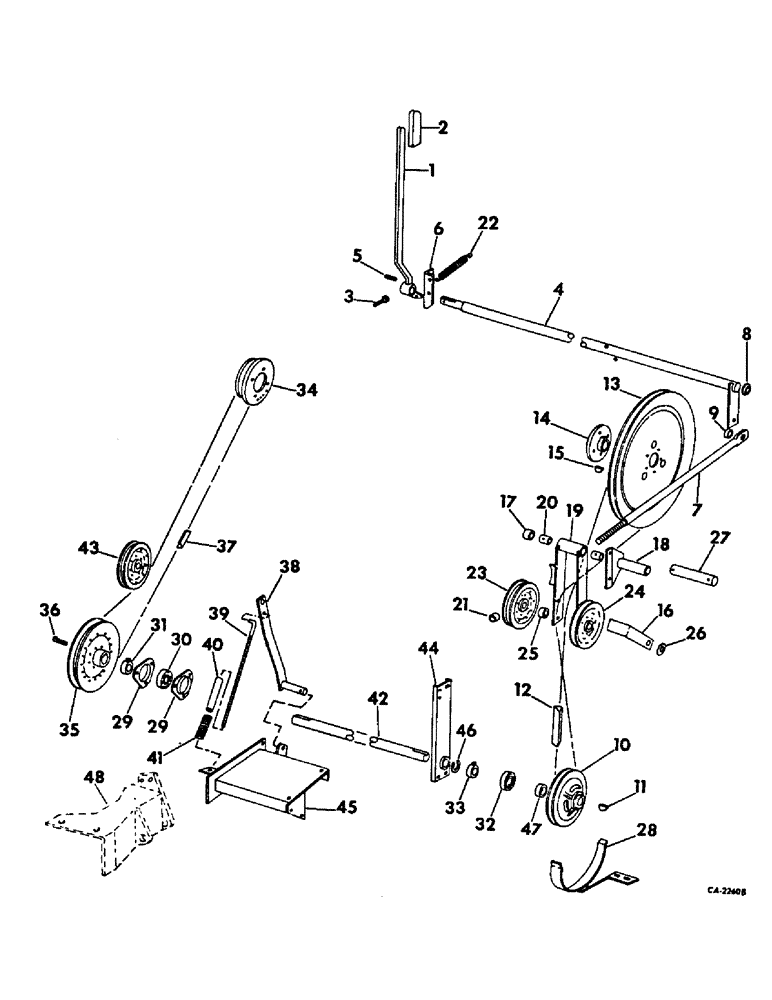

Запчасти Case IH 715 (26-14) - GRAIN TANK, GRAIN TANK UNLOADER DRIVE Grain Tank

1

938883R91

LEVER ASSY, unloader control

1шт.

2

938885R1

GRIP

unloader control lever

1шт.

3

632167R1

BOLT, unloader control lever stud

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

170997C1

PIPE ASSY, unloader front control

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga

1шт.

5

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1-1/4 sq parallel

1шт.

6

629561R1

BRACKET, front control pipe left

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

627909R91

PIPE ASSY, unloader control rear

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

8

170999C1

WASHER, pivot

1шт.

9

556587R1

SPACER

unloader control rear pipe

1шт.

10

627895R1

PULLEY

unloader drive, 6-5/8 in. OD, belt drive

1шт.

10

150669C1

PULLEY, unloader drive, 8-1/2 in. OD, hydrostatic drive, serial no. 5328 and below

1шт.

10

175542C1

PULLEY

unloader drive, 8.5 in. OD, hydrostatic drive, serial no. 5329 and above

1шт.

11

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 gib, hydostatic drive

1шт.

11

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hard, belt drive

1шт.

12

559064R1

V-BELT,0.88" W

Unloader drive, Belt drive 0.88" W

1шт.

12

165676C1

V-BELT,0.88" W x 153.99" L

Unloader Drive, Hydrostatic Drive 0.88" W x 153.99" L

1шт.

13

22784KA

PULLEY

ASSY, unloader driven, 21 in. OD

1шт.

14

632539R1

INTAKE ASSY

HUB, unloader driven pulley

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

15

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hard

1шт.

16

629542R1

SUPPORT, retainer

1шт.

17

583345R1

SPACER, tightener pulley pivot shaft

1шт.

18

174433C1

SHAFT ASSY, pivot idler

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

8шт.

19

171000C1

ARM ASSY, unloader tightener, includes ref no 20

1шт.

20

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

2шт.

21

576015R1

SPACER,7/8" Tube x 11/16"

control rod pivot arm

1шт.

22

580107R1

SPRING

unloader lever return

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

23

570265R91

PULLEY

ASSY, tightener inner, 7 in. OD

1шт.

24

154742C91

PULLEY

ASSY, tightener outer, 7 in. O.D.

1шт.

19678R1

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 2

5/8 x 5-1/4 hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

SCREW, 5/8 x 5-1/2 hex-hd cap

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

7шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

25

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

tightener pulley

1шт.

26

574237R1

WASHER, tightener pulley shaft

1шт.

27

631325R1

SHAFT, grain tank unloader drive idler pivot

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

28

171001C1

GUIDE ASSY, unloader belt lower, belt drive

1шт.

28

171004C1

GUIDE ASSY, unloader belt lower, hydrostatic drive

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

571425R1

FLANGED BEARING

unloader jackshaft LH bearing, hydrostatic drive

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

30

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

unloader jackshaft LH, hydrostatic drive

1шт.

Ref #30 & #32 - Should be for Hydrostatic or Belt Drive 11/16/95

1шт.

31

557115R11

COLLAR

COLLAR W/SET SCREW, locking, hydrostatic drive

1шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex soc-hd

1шт.

32

618210R91

BEARING

jackshaft RH, hydrostatic drive

1шт.

33

557115R11

COLLAR

COLLAR W/SET SCREW, locking, hydrostatic drive

1шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex soc-hd

1шт.

34

150624C1

PULLEY

unloader jackshaft drive, 5-3/4 in. OD, hydrostatic drive

1шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16 x 2-1/4 hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

35

626770R1

PULLEY, unloader jackshaft drive, 10-5/16 in. OD, hydrostatic drive, serial no. 5328 and below

1шт.

35

175544C1

PULLEY

unloader jackshaft driven, 11 in. OD, hydrostatic drive, serial no. 5329 and above

1шт.

36

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 gib, hydrostatic drive

1шт.

37

150670C1

V-BELT,0.63" W x 157.79" L

Unloader Jackshaft Drive, Hydrostatic Drive, Serial No. 5328 and Below 0.63" W x 157.79" L

1шт.

37

175545C1

BELT,0.630" W x 158.91" L

V-BELT , Unloader, Jackshaft drive, Hydrostatic drive, S/N 5329 and above 0.630" W x 158.91" L

1шт.

38

150677C91

ARM ASSY, unloader jackshaft drive belt tightener pulley, hydrostatic drive

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

39

150681R1

ROD, unloader jackshaft drive belt tightener pulley adjusting, hydrostatic drive

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

40

150682C1

SPACER, unloader jackshaft drive belt tightener pulley adjusting rod, hydrostatic drive

1шт.

41

V679

VALVE SPRING

SPRING, unloader jackshaft drive belt tightener pulley adjusting rod, hydrostatic drive

1шт.

42

150696C1

JACKSHAFT, grain tank unloader, serial no. 5328 and below

1шт.

42

175543C1

SHAFT

JACKSHAFT, grain tank unloader, serial no. 5329 and above, hydrostatic drive

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga

2шт.

43

570265R91

PULLEY

ASSY, unloader jackshaft drive belt tightener, 7 in. OD, hydrostatic drive

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

3шт.

44

171015C1

BRACE ASSY, propulsion jackshaft RH bearing

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-hd crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

45

150671C91

BRACKET ASSY, unloader jackshaft left, hydrostatic drive

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

46

360936R1

RING

unloader jackshaft RH bearing snap, hydrostatic drive

1шт.

47

150651C1

SPACER

unloader jackshaft RH, serial no. 5328 and below

1шт.

48

HANGER, propulsion jackshaft and fan dr, refer to group 7 under propulsion drive

1шт.
