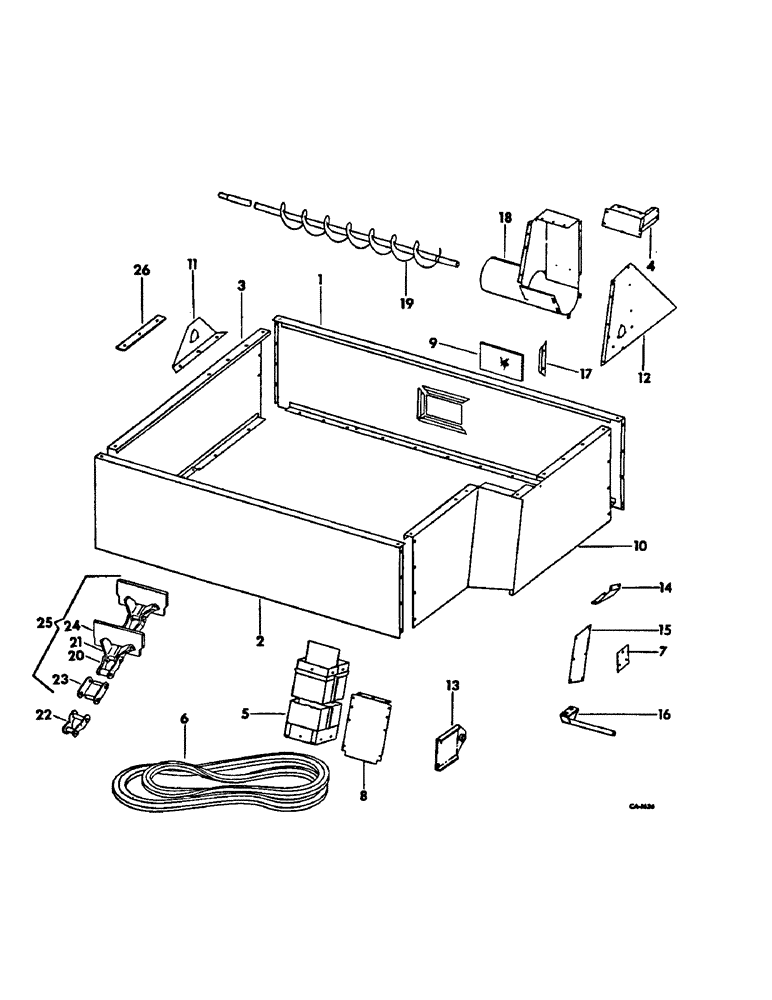

Запчасти Case IH 715 (26-08) - GRAIN TANK, GRAIN TANK EXTENSION W/RAISED LEVELING AUGER, 19-1/2 INCHES HIGH Grain Tank

1

172218C1

SIDE ASSY, gr tank extn front

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

22шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd type 1

2шт.

120376

NUT,5/16"-18, G5

22шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

935495R91

SIDE ASSY, gr tank extn rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

18шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd type 2

1шт.

120376

NUT,5/16"-18, G5

18шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

172216C1

SIDE ASSY, gr tank extn left

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

4

632061R91

COVER ASSY, spout

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2 C-Z slt-rd-hd mach

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

5

155128C91

HOUSING

EXTENSION ASSY, gr elev

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

150433C1

V-BELT,206.49" L

Elevator Drive 206.49" L

1шт.

7

626582R1

COVER

gr tank dist aug brg

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16-18 x 1/2 C-Z crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

8

632051R1

COVER, front filler

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 C-Z crg

8шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16-18 x 1/2 C-Z crg

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

120376

NUT,5/16"-18, G5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

WINDOW, grain tank, 5-1/2 x 9-3/8 in., procure locally

1шт.

10

935498R91

SIDE ASSY, gr tank extn right

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

935505R1

PANEL, gr tank level aug left

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8-16 x 3/4 C-Z hex-hd type 1

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

935506R91

PANEL ASSY, gr tank level aug right

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

935528R91

CHANNEL ASSY, grain tank unloader drive tightener shaft, serial no. 3250 and below

1шт.

13

174431C1

CHANNEL ASSY, grain tnk unloader drive tightener shaft, serial no. 3251 and above

1шт.

14

935526R1

BRACE, gr elev head sprt

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z crg

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1/2 C-Z hex-hd type 1

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

935871R1

BRACKET, elev sprt

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

629111R91

BRACE ASSY, gr elev lwr front

1шт.

17

172212C1

STRIP, grain tank extension window

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

654871R92

TUBE

ASSY, leveling auger

1шт.

19

654882R91

AUGER

ASSY, gr tank level

1шт.

20

631253R91

LINK

roller

1шт.

21

150722C91

LINK

attaching

1шт.

22

588562R91

CHAIN LINK

LINK, offset

1шт.

23

631254R91

DRAG LINK

LINK, connecting

1шт.

24

150717C91

RUBBER FLIGHT

FLIGHT W/ATTACHING AND ROLLER LINKS

1шт.

25

150707C91

CONVEYOR

CHAIN ASSY, grain elevator conveyor extn

1шт.

26

151299C1

STRAP, grain tank left side filler

1шт.
