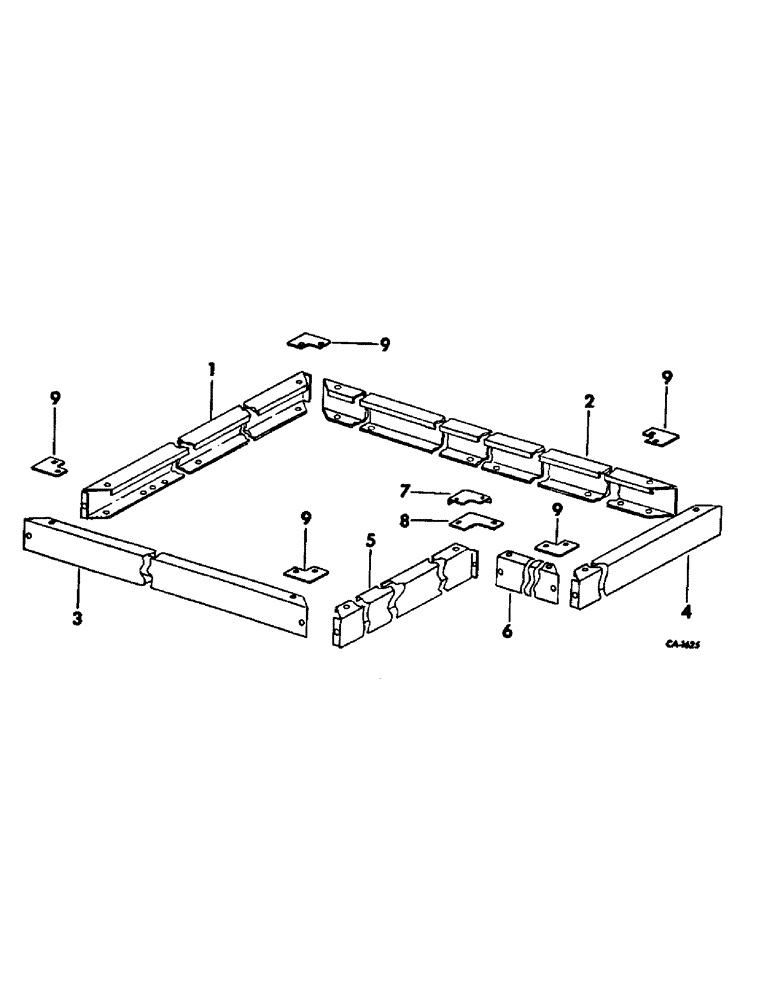

Запчасти Case IH 715 (26-06) - GRAIN TANK, GRAIN TANK EXTENSION, STANDARD FOR GRAIN AND WINDROW SPECIAL, 3 INCHES HIGH Grain Tank

1

171018C1

SIDE, extension LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

2

171019C1

SIDE, extension front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

3

171020C1

SIDE, extension rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

4

171021C1

SIDE, extension front RH

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

20701R1

SCREW, 1/4 x 1/2 C-Z slt-pan-hd mach

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

5

171022C1

SIDE, extension rear RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

6

171023C1

SIDE, extension center RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

7

171024C1

CORNER, extension inner RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

8

171025C1

CORNER, extension RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

9

627110R1

STIFFENER, conrer

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

1шт.
