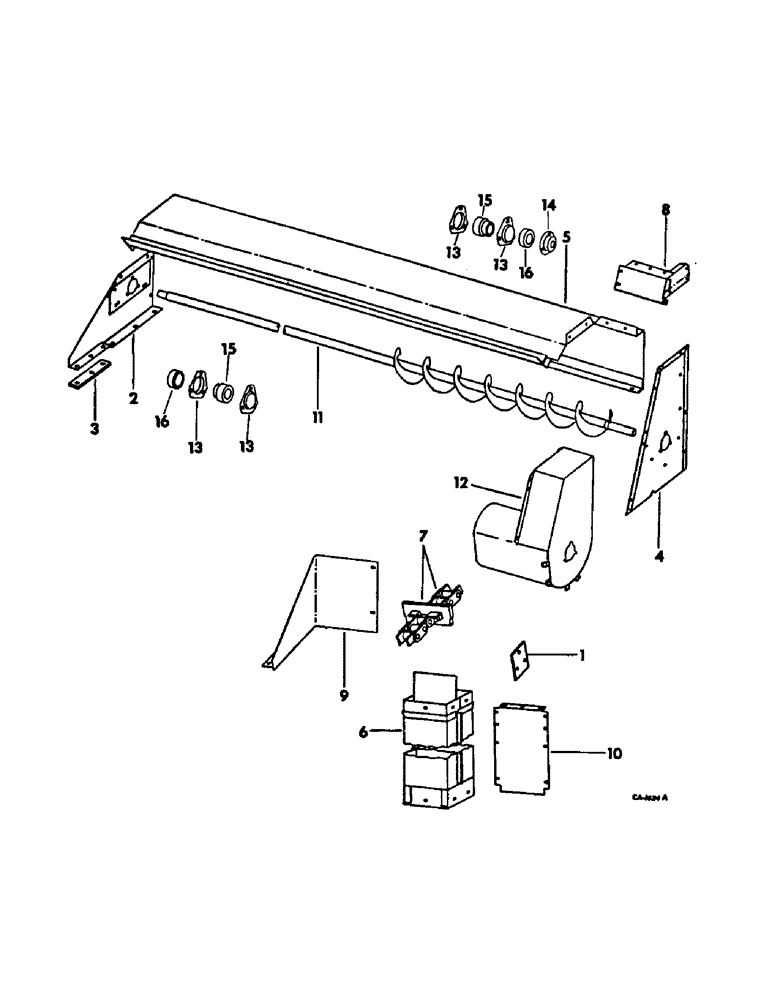

Запчасти Case IH 715 (26-04) - GRAIN TANK, GRAIN TANK RAISED LEVELING AUGER, STANDARD FOR RICE OPTIONAL FOR GRAIN Grain Tank

1

626582R1

COVER

leveling auger brg opening

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

654864R91

SUPPORT ASSY, leveling auger LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

151299C1

STRAP, LH support filler

1шт.

4

654868R91

SUPPORT ASSY, leveling auger RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

120376

NUT,5/16"-18, G5

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

654878R91

COVER ASSY, leveling auger

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

155129C91

HOUSING

EXTENSION ASSY, grain elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

150711C91

CONVEYOR

CHAIN ASSY, grain elevator conveyor extension

1шт.

7

150717C91

RUBBER FLIGHT

FLIGHT W/ATTACHING AND ROLLER LINK

1шт.

7

631253R91

LINK

plain roller

1шт.

7

150722C91

LINK

attaching

1шт.

7

631254R91

DRAG LINK

LINK, connecting

1шт.

7

588562R91

CHAIN LINK

LINK, offset

1шт.

8

632061R91

COVER ASSY, leveling tube

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 znd sq-nk crg

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-pan-hd

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

9

935429R91

SHEET ASSY, grain tank filler

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 sq-nk crg

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

632051R1

COVER, grain tank filler

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 znd sq-nk crg

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

11

654882R91

AUGER

ASSY, leveling

1шт.

12

654871R92

TUBE

ASSY, leveling auger

1шт.

13

571424R1

FLANGE

leveling auger bearing

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

120376R1

WASHER

NUT, 5/16 hex.

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

606695R1

COVER

SHIELD, leveling auger bearing

1шт.

15

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

leveling auger

2шт.

16

455102R11

COLLAR

W/SET SCREW, locking

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.
