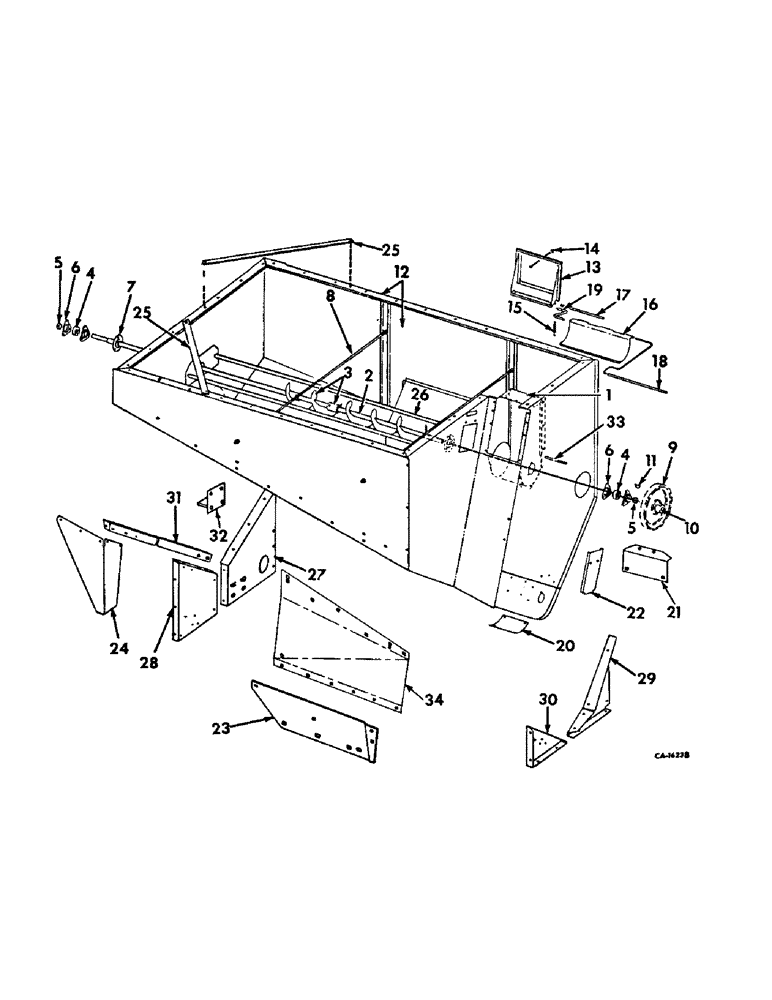

Запчасти Case IH 715 (26-02) - GRAIN TANK, GRAIN TANK AND SUPPORTS Grain Tank

1

629648R91

TUBE

ASSY, leveling auger, grain and windrow special

1шт.

2

627117R91

AUGER

ASSY, leveling, grain and windrow special

1шт.

3

627122R91

AUGER

EXTENSION ASSY, leveling auger, grain and windrow special

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16-14 C-Z hex. jam

2шт.

21228R1

SCREW, 7/16 x 3/4 C-Z sq-hd cup-pt set

2шт.

4

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

grain tank leveling auger

2шт.

5

455102R11

COLLAR

W/SET SCREW, lkg

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

6

571424R1

FLANGE

leveling auger brg

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

606695R1

COVER

SHIELD, leveling auger bearing

1шт.

8

631370R1

ROD, support

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

PULLEY ASSY, leveling auger driven, refer to group 25 under elevator drive

1шт.

10

HUB, leveling auger driven pulley, refer to group 25 under elevator drive

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 znd hex. jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd cup-pt set

2шт.

11

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff

1шт.

12

171254C1

TANK ASSY, grain, includes ref nos 13 thru 19

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 znd hex-hd mach

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

13шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mahc

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8 x 1 hex-hd

1шт.

21721R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 3/4", Gr 2

BOLT, 1/2 x 3/4 znd sq-nk crg

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z hex. whiz lock

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z hex. whiz lock

6шт.

475954R1

NUT

3/8 C-Z hex. whiz lock

34шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

7шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/8 C-Z slt-truss-hd

2шт.

21126R1

SCREW, 3/8 x 5/8 C-Z slt-pan-hd mach

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

13

633649R91

DOOR ASSY, tailings inspection, includes ref. no. 14

1шт.

633712R1

RIVET, inspection door

1шт.

14

587056R1

KNOB, inspection door

1шт.

15

Z1259

SPRING

tailings inspection door

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

1/4 x 1-1/4 znd sq-nk crg

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

16

633668R91

VALVE ASSY, tailings delivery

1шт.

17

634523R1

ROD, inspection door hinge

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18

633233R1

ROD, valve

1шт.

19

633230R1

ROD, auger valve control

1шт.

20

627116R1

COVER

DOOR, clean out

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

SCREW, 5/16 x 1/2 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

21

627125R1

DOOR, grain elevator tank

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 znd sq-nk crg

4шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

2шт.

445117

DIODE

1/4 spring

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 hex.

4шт.

564791R1

SPRING NUT

1/4 speed

3шт.

144824

SCREW, 1/4 x 3/4 C-Z slt-pan-hd tap

3шт.

22

629662R1

DOOR, grain elevator head shaft brg

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 hex.

2шт.

23

937924R1

SUPPORT, left rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

627124R1

BRACE, left support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25

939602R1

BRACE, grain tank

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

26

633463R1

PIPE, support rod

2шт.

27

172279C1

BRACKET ASSY, left front support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

28

629495R1

BRACKET, left rear support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

170987C11

BRACKET ASSY, right front support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

629497R1

BRACKET, right rear support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

31

173573C1

SUPPORT ASSY, grain tank bottom

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z hex. whiz lock

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8 x 1 znd hex-hd type D tap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

32

172270C1

SUPPORT ASSY, deck brace

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

33

627128R1

ROD, side support

2шт.

34

937926R1

SUPPORT, rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
