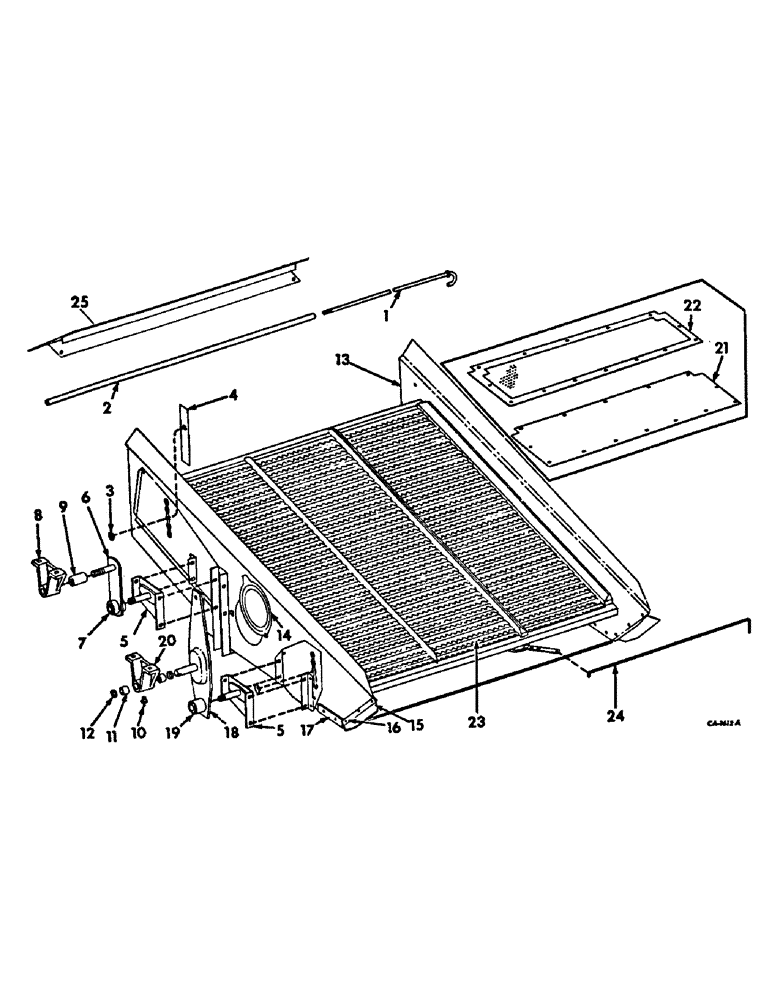

Запчасти Case IH 715 (23-08) - GRAIN PAN, SHOE AND SHOE SIEVE, SHOE AND SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

634349R1

BOLT,5/16" - 18 x 36.20"

shoe sieve adj

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

2

634350R1

PIPE

shoe sieve adj bolt spacer

2шт.

3

569946R1

WASHER

shoe sieve adj

4шт.

4

564207R1

BAR

SEAL, shoe sieve

4шт.

5

631478R91

HANGER

ASSY, shoe lower left

2шт.

631479R91

SUSPENSION BLOCK

HANGER ASSY, shoe lower right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z crg

16шт.

120376

NUT,5/16"-18, G5

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

4шт.

6

627720R91

CLAMP

ARM ASSY, shoe front hanger, includes ref no. 7

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21471R1

WASHER

21/32 1X x 2 ga

2шт.

7

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

arm hub

2шт.

8

627717R11

BRACKET ASSY, shoe hanger front LH, includes ref no 9

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

170953C11

BRACKET ASSY, shoe hanger front RH, includes ref no 9

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

1шт.

9

627719R91

COMPOSITE RING

BUSHING, shoe front hanger arm bracket

2шт.

10

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28NF str lub self tap

2шт.

11

629631R91

NEEDLE BEARING

BEARING, needle shoe rear hngr

4шт.

12

629632R91

RETAINER

SEAL, shoe rear hngr oil

4шт.

13

568616R91

SHOE

ASSY, includes ref nos 14, 15, 16 and 17, grain, maize, corn and soybean, not edible bean

1шт.

13

570878R91

SHOE ASSY, includes ref no. 14, 15, 16 and 17, for edible bean

1шт.

14

551104R1

FLAP

DOOR, shoe inspection

2шт.

15

564205R1

SEAL

side rear

2шт.

16

564206R1

STRIP, rear seal

2шт.

135330

SHIELD

RIVET, 1/4 x 7/16 truss-hd

1шт.

12291R1

RIVET, 9/64 x 5/16 ov-hd tubular

3шт.

Q3574

RIVET, 9/64 x 9/32 ov-hd tubular

4шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

17

564196R1

SEAL, lower rear

2шт.

18

627565R91

ARM

ASSY, grain pan and shoe rear hanger, includes ref no 19

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

22189R1

WASHER, 23/32 x 1 x 16 ga C-Z

4шт.

19

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

hanger arm hub

2шт.

20

629644R1

BRACKET

shoe hanger rear

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

570664R1

SCREEN, shoe bottom, edible bean

1шт.

110634

NUT, no. 10 sq

18шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

no. 10 x 1/2 rd-slt-hd mach

18шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

18шт.

615002R1

WASHER

13/64 x 1/2 x 16 ga

18шт.

22

570663R1

COVER, shoe bottom, edible bean

1шт.

23

159318C91

SIEVE

ASSY, shoe, 1-1/8 in. ajdusting, serial no. 8000 and below

1шт.

23

179103C1

GRILLE ASSY

SIEVE ASSY, shoe, 1-1/8 in. adjusting, serial no. 8001 and above

1шт.

23

569614R91

SIEVE ASSY, shoe, 1/2 in. rd hole, parts accessory

1шт.

23

569615R91

SIEVE ASSY, shoe, 1/10 in. rd hole, parts accessory

1шт.

23

569617R91

SIEVE ASSY, shoe, 1/16 in. rd hole, parts accessory

1шт.

23

570750R91

SIEVE ASSY, shoe, 7/32 in. rd hole, parts accessory

1шт.

23

570835R91

SIEVE

ASSY, shoe, 3/8 in. rd hole, parts accessory

1шт.

24

654222R1

ROD

shoe sieve adjusting, serial no. 8000 and below

1шт.

24

570642R1

ROD

shoe sieve adjusting, serial no. 8001 and above

1шт.

586591R1

COTTER PIN

PIN, quick attachable cotter

1шт.

25

179073C1

DEFLECTOR ASSY, shoe sieve front, serial no. 8001 and above

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.
