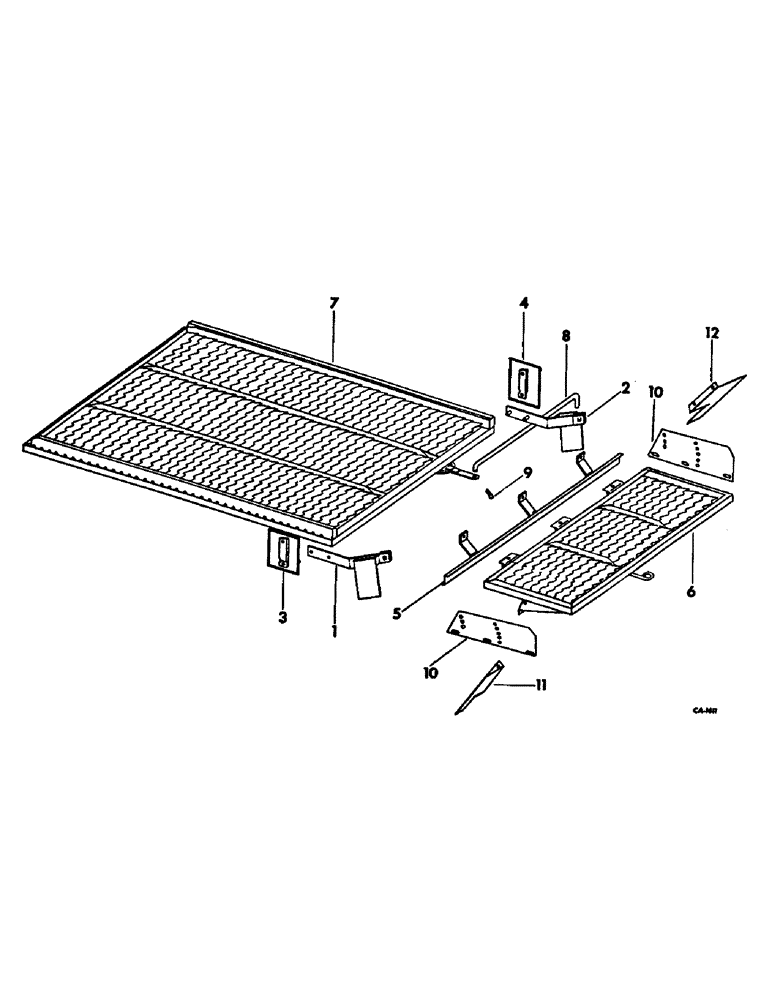

Запчасти Case IH 715 (23-07) - GRAIN PAN, SHOE AND SHOE SIEVE, CHAFFER SIEVE AND EXTENSION Grain Pan, Shoe & Shoe Sieve

1

627834R93

SUPPORT

BRACKET ASSY, chaffer sieve adj left

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 sq-nk crg

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 nylon prevailing torque

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21739R1

WASHER

11/32 x 9/16 x 16 ga

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

2

627835R93

BRACKET ASSY, chaffer sieve adj right

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 nylon prevailing torque

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21739R1

WASHER

11/32 x 9/16 x 16 ga

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

3

632728R1

BLOCK

chaffer sieve seal left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

632729R1

BOARD

BLOCK, chaffer sieve seal right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

159320C91

DEFLECTOR

ASSY, chaffer sieve blast, serial no. 8000 and below

1шт.

6

172221C1

DRIVE ASSY.

SIEVE ASSY, chaffer extension 1-1/8 in.

1шт.

6

172222C1

SIEVE

ASSY, chaffer extension, 1-5/8 for corn slat type

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

442809

NUT, 1/4 hug lock

3шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 slt-rd-hd

6шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1 slt-td-hd

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

6шт.

7

568631R93

SIEVE

ASSY, chaffer, standard

1шт.

7

574823R92

GRAIN SIEVE

SIEVE ASSY, chaffer, Petersen type

1шт.

7

936022R92

SIEVE ASSY, chaffer, 1-5/8 Cloz slat type

1шт.

7

936257R92

SIEVE

ASSY, chaffer, 1-5/8 corn slat type

1шт.

7

588399R91

SIEVE ASSY, chaffer sieve w/7/16 x 5/16 slots, parts accessory

1шт.

8

570642R1

ROD

chaffer sieve adjusting

1шт.

9

586591R1

COTTER PIN

PIN, QA cot.

1шт.

10

172636C1

SIDE ASSY.

SIDE, chaffer sieve extension

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

6шт.

11

172637C1

SEAL, chaffer sieve extension LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

12

172638C1

SEAL, chaffer sieve extension RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.
