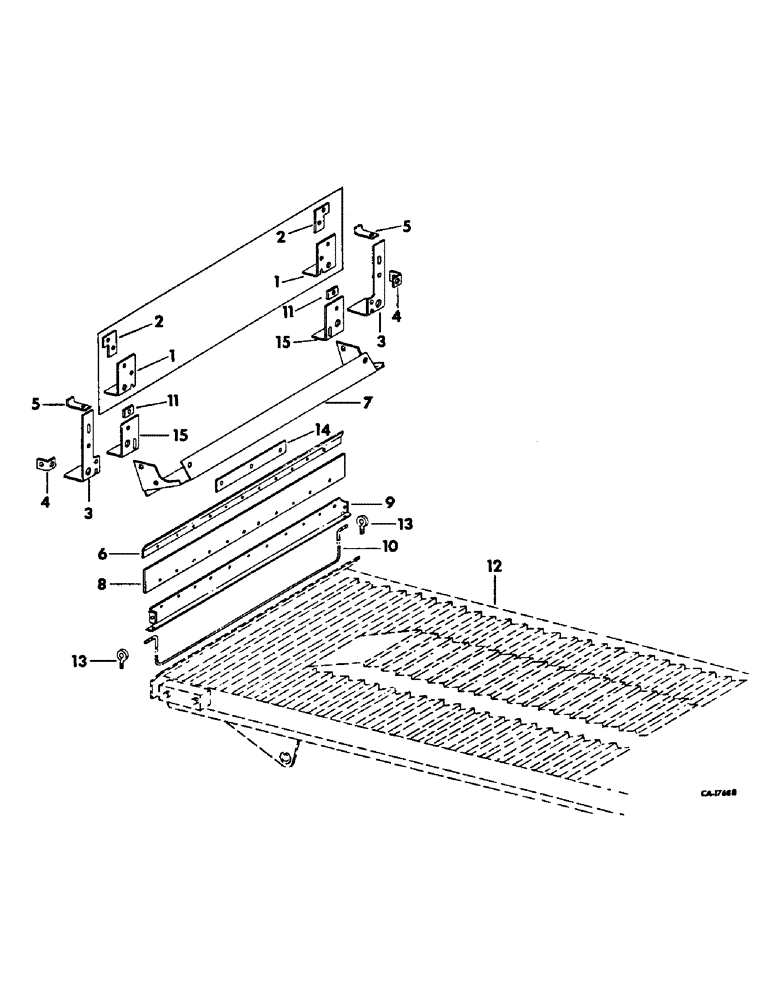

Запчасти Case IH 715 (23-05) - GRAIN PAN, SHOE AND SHOE SIEVE, CONCAVE SEAL AND GRAIN PAN RELATED PARTS Grain Pan, Shoe & Shoe Sieve

1

174541C1

SEAL

concave linkage, not stone retarder, serial no. 3250 and below, windrow special serial no. 3251 and above

1шт.

564266R1

NUT

5/16 C-Z weld

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

2

174542C1

RETAINER, concave linkage seal, not stone retarder, serial no. 3250 and below, windrow special serial no. 3251 and above

2шт.

3

174538C1

SEAL

concave linkage, for stone retarder

2шт.

564266R1

NUT

5/16 weld

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10-24 x 3/4 slt-pan-hd

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

8шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

4

174539C1

ANGLE

concave linkage seal, for stone retarder

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

174540C1

RETAINER

concave linkage seal, for stone retarder

2шт.

6

568599R1

STRAP

front seal

1шт.

NLS

NO LONGER SERVICED

1/4 spring

11шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd

11шт.

7

171565C1

PLATE

grain pan front seal

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

568598R1

SEAL

pan front

1шт.

9

629640R1

TIE, pan front cross

1шт.

135287

RIVET,Truss Hd, 3/16" x 9/16"

3/16 x 9/16 wgn-box-hd

4шт.

10

164299C1

ROD, grain pan seal support scrapper, for windrow special

1шт.

648002

KNIFE

1/8" x 3/4"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

11

559553R1

RETAINER

concave linkage, grain and rice not edible bean, serial no. 3251 and above

1шт.

12

PAN ASSY, grain, refer to this group under grain pan

1шт.

13

164298C1

BOLT, grain pan seal support spreader rod eye, windrow special

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

174604C1

STRIP, front seal reinforcement, not stone retarder, serial no. 8000 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

4шт.

15

174855C1

SEAL

concave linkage, grain and rice not edible bean, serial no. 3251 and above

1шт.

564266R1

NUT

5/16 tab weld

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss rd

2шт.
