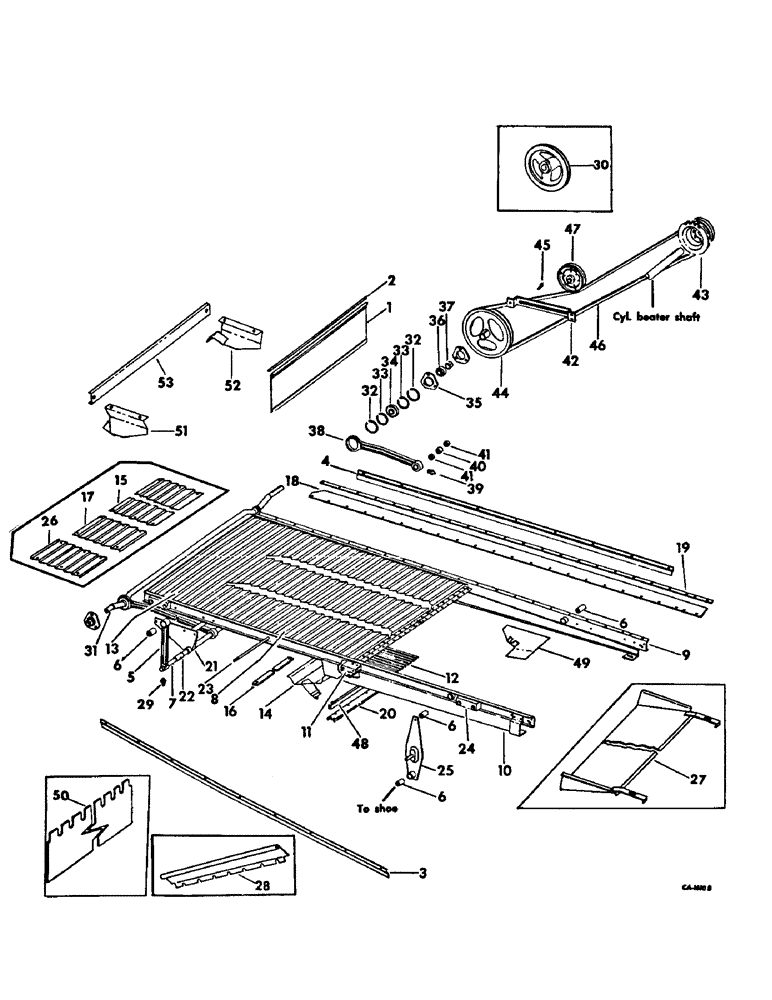

Запчасти Case IH 715 (23-02) - GRAIN PAN, SHOE AND SHOE SIEVE, GRAIN PAN, SHAKER SHAFT AND DRIVE Grain Pan, Shoe & Shoe Sieve

632514R91

PARTS ACCESSORY, fast speed shaker shaft drive, includes ref. nos. 40 and 46

1шт.

1

569109R21

CANVAS

FLAP ASSY, grain pan check

1шт.

2

569108R1

ROD

grain pan check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

3

627773R11

STRIP

ASSY, grain pan seal left

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

9шт.

4

171546C11

STRIP ASSY, grain pan seal right

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

9шт.

5

156063C11

ARM

ASSY, grain pan front hanger, includes ref no 6

2шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 znd hex-hd mach

2шт.

9413969

NUT,5/8"-11, GB

5/8-11 hex. torque lock

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

6

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

6шт.

7

627556R1

AXLE PIN

SHAFT, grain pan

1шт.

517843R1

COTTER PIN

PIN, 3/16 QA cotter

2шт.

21885R1

WASHER

1-1/32 x 2 x 16 ga C-Z

2шт.

8

155974C92

APRON

PAN ASSY, grain, not edible bean, serial no. 8000 and below, edible bean, serial no. 8001 and above

1шт.

8

172941C91

PAN ASSY, grain, edible bean, serial no. 8000 and below, includes ref nos 9 thru 24 and 26

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271750

WASHER

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

1шт.

619815R1

WASHER, 13/32 x 1 x 16 ga

1шт.

20511R1

WASHER, 5/8 C-Z med lock

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

9

629579R94

RAIL

ASSY, right side, includes ref no 6

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 hex-hd type 8

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

4шт.

21333R1

NUT,3/8"-16, G8

3/8-16 C-Z hex. type 8

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

10

629578R94

RAIL ASSY, left side, includes ref no. 6

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 hex-hd type 8

3шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

4шт.

21333R1

NUT,3/8"-16, G8

3/8-16 C-Z hex. type 8

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

271750

WASHER

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

11

632692R1

SUPPORT, finger

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

3шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 C-Z hex-hd tap

1шт.

120376

NUT,5/16"-18, G5

3шт.

172431

SCREW,Hex, 1/4" - 20 x 3/4"

1/4 x 1/2 C-Z hex-hd tap

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

155214C1

FINGER

grain pan

21шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 C-Z flange whiz lock

42шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

21шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

21шт.

13

632697R91

ASSEMBLY

BOTTOM ASSY, grain pan, not edible bean, serial no. 8000 and below, edible bean, serial no. 8001 and above

1шт.

13

632976R91

BOTTOM ASSY, grain pan, edible bean, serial no. 8000 and below

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 C-Z hex-hd mach

21шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

21шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

21шт.

14

631193R91

PLATE ASSY, pan center seal, edible bean

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 C-Z hex-hd tap

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

570682R1

COVER, pan bottom front, edible bean

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 znd hex-hd mach

12шт.

NLS

NO LONGER SERVICED

1/4 spring

12шт.

16

634606R1

FILLER, grain pan sieve stop

1шт.

17

570683R1

COVER, pan bottom rear center, edible bean

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd

1шт.

NLS

NO LONGER SERVICED

1/4 spring

1шт.

18

564132R1

SEAL

pan side rail

2шт.

19

568248R1

BAR

STRAP, side rail seal, rice special

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 hex-hd self tap

44шт.

20

626756R1

STIFFENER

sieve front

1шт.

21

654551R91

SUPPORT ASSY, gr pan front, includes ref no. 22

1шт.

22

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

front support hub

4шт.

23

568623R1

ROD

pan cross tie

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

552883R2

STOP

BLOCK, gr pan

4шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

25

627565R91

ARM

ASSY, gr pan & shoe rear hngr, includeds ref no. 6

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

22189R1

WASHER, 23/32 x 1-1/2 x 16 ga C-Z

8шт.

26

570684R1

COVER, pan bottom rear outer LH

1шт.

26

570685R1

COVER, pan bottom rear outer RH, edible bean

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 znd hex-hd mach

6шт.

NLS

NO LONGER SERVICED

1/4 spring

6шт.

27

159979C91

DEFLECTOR ASSY, chaffer sieve return pan, serial no. 12000 and below, parts accessory

1шт.

28

150162C1

EXTENSION, grain pan wind seal, serial no. 12000 and below, parts accessory

1шт.

29

16964R91

FITTING

1/4 90 deg lub

2шт.

30

632701R1

PULLEY, shaker shaft drive, 12 in. OD, fast speed

1шт.

31

196278C1

SHAFT, shaker

1шт.

32

359894R1

RING, SNAP

SNAP RING, grain pan pitman brg

4шт.

33

UA20551

RING

SNAP RING, grain pan pitman brg

4шт.

34

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft pitman ball

2шт.

35

571425R1

FLANGED BEARING

shaker shaft brg

4шт.

36

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

shaker shaft RH

1шт.

36

455960R91

BALL BEARING

BEARING, shaker shaft LH

1шт.

37

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 C-Z hex-soc-hd

2шт.

38

150830C11

PITMAN

W/BRG & OIL SEAL, shaker shaft, includes ref nos 40 and 41

2шт.

39

16964R91

FITTING

1/4-28 90 deg lub

2шт.

40

584164R91

NEEDLE BEARING

needle

2шт.

41

584912R91

OIL SEAL

OIL SEAL

4шт.

42

627701R1

SUPPORT, shaker shaft drive belt tightener pulley

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

43

170952C2

SPROCKET ASSY.

PULLEY AND SPROCKET, shaker drive, 7-3/4 in. OD

1шт.

44

175315C1

PULLEY

shaker shaft driven, 13 in OD, not edible bean

1шт.

44

632700R1

PULLEY, shaker shaft driven, 14 in. OD, edible bean

1шт.

45

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 5/16 x 1-3/4 gib

1шт.

46

564494R2

V-BELT,0.88" W

Shaker shaft drive, Not edible bean 0.88" W

1шт.

46

550950R1

V-BELT,0.88" W

Shaker shaft drive, For edible bean 0.88" W

1шт.

46

632702R1

V-BELT,0.88" W

Shaker shaft drive, Fast speed 0.88" W

1шт.

47

566519R91

PULLEY

ASSY, shaker shaft drive belt tightener, 6 in. OD

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

3шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

71/32 x 1-1/2 x 11 ga square hole

1шт.

48

568597R1

STOP, grain pan sieve front

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 8-hd

6шт.

22237R1

WASHER

13/64 x 3/4 x 16 ga C-Z

2шт.

49

564108R1

DEFLECTOR

grain pan left

2шт.

49

564109R1

DEFLECTOR

grain pan right

2шт.

50

654916R1

COVER, grain pan finger, parts accessory, serial no. 8000 and below

1шт.

51

179078C1

SUPPORT ASSY, sieve center deflector LH, serial no. 8001 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

2шт.

52

179079C1

SUPPORT ASSY, sieve center deflector RH, serial no. 8001 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

2шт.

53

179074C1

DEFLECTOR, sieve center, serial no. 8001 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

2шт.
