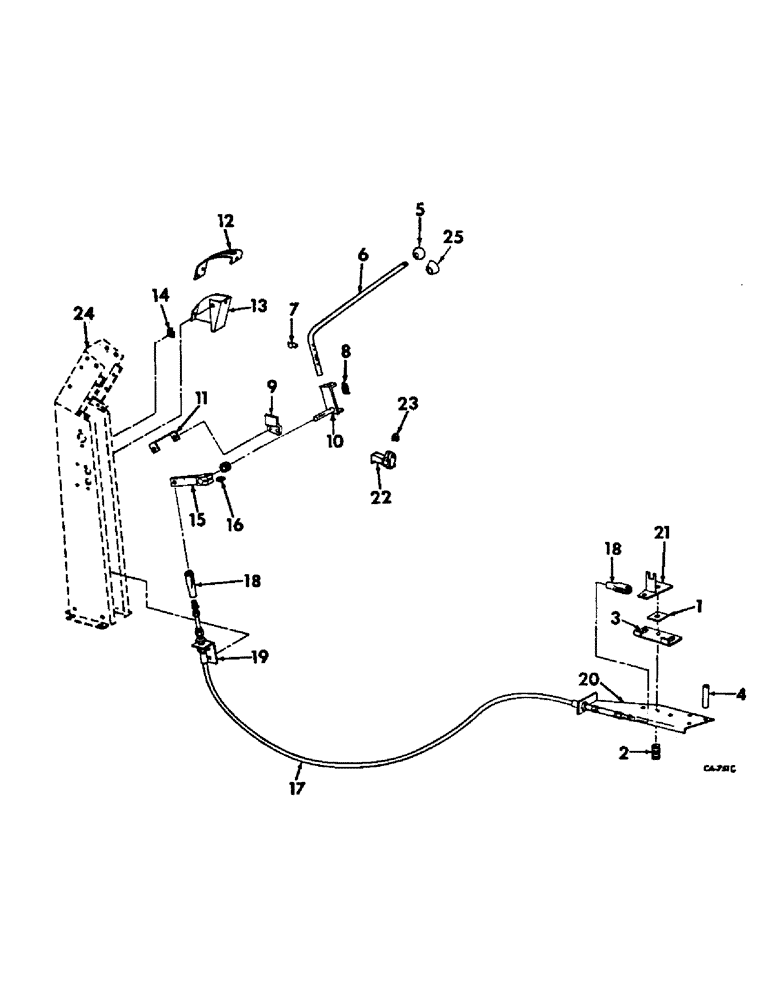

Запчасти Case IH 715 (07-28) - DRIVE TRAIN, PROPULSION CONTROL, HYDROSTATIC DRIVE Drive Train
№
Артикул
Название
Примечание
Количество
1
150627C1
FRICTION WASHER
pump control arm friction
1шт.
2
28395H
SPRING
pump control arm
1шт.
3
171890C1
PLATE
pump control arm stop
1шт.
18795R1
BOLT,Hex, 7/16"-14 x 1 1/4", G2
7/16 x 1-1/4 znd hex-hd mach
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16 znd hex.
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
607891R1
WASHER
15/32 x 1 x 16 ga C-Z
2шт.
4
573174R1
SPACER,5/8" Tube x 3"
pump control arm support plate
3шт.
5
163574C1
KNOB
ground speed control lever, serial no. 8000 and below
1шт.
6
155026C3
LEVER, ground speed control
1шт.
21796R1
WASHER
21/32 x 1 x 16 ga C-Z
1шт.
7
152215C1
STRIP, ground speed indicator
1шт.
134530
NUT,Hex, #6 - 32
1шт.
436668
SCREW, no. 6 x 7/8 C-Z pan hd
1шт.
492-11006
LOCK WASHER,#6
Lock, #6
1шт.
8
151924C1
SPRING
ground speed control lever
1шт.
18656R1
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2
1/4 x 1-1/4 hex-hd
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
21784R1
WASHER
17/64 x 1/2 x 16 ga C-Z
1шт.
9
171891C1
BRACKET, ground speed neutral stop
1шт.
18655R1
BOLT,Hex, 1/4"-20 x 1", G2
1/4 x 1 znd hex-hd mach
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
10
171893C1
BRACKET
ASSY, ground speed lever
1шт.
21796R1
WASHER
21/32 x 1 x 16 ga C-Z
2шт.
11
151925C1
CLEVIS, steering cover tie
1шт.
18655R1
BOLT,Hex, 1/4"-20 x 1", G2
1/4 x 1 znd hex-hd mach
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
12
151907C2
INDICATOR, ground speed
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
3шт.
453049
SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"
1/4 x 3/4 C-Z pan hd slt mach
3шт.
13
151908C2
COVER, ground speed control lever
1шт.
18653R1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
1/4 x 1/2 znd hex-hd mach
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
14
935612R1
BRACKET, ground speed control lever cover
1шт.
18653R1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
1/4 x 1/2 znd hex-hd mach
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
15
151915C91
ARM ASSY, ground speed control lever
1шт.
16
28459KA
WASHER
ground speed control lever arm
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 znd hex-hd cap
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
17
151909C91
CABLE PULLING GRIP
CABLE ASSY, ground speed control
1шт.
124824
NUT,Hex, 5/16" - 18
5/16 znd hex. jam
2шт.
18
144242
CLEVIS
5/16-24 C-Z adjusting rod end
2шт.
121224
SUPPORT
3/32" x 1"
2шт.
120690
PIN
5/16 x 31/32 C-Z rod end
2шт.
19
151914C1
ANGLE, cable anchor front
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 znd sq-nk crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
20
151911C91
BRACKET ASSY, pump control
1шт.
191163
BOLT,Hex, 3/8" - 16 x 4", Gr 5
SCREW, 3/8 x 4 znd hex-hd cap
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
21
151917C92
ARM
ASSY, pump control actuating
1шт.
18802R1
SCREW,Hex, 7/16"-14 x 3", G8
BOLT, 7/16 x 3 znd hex-hd mach
1шт.
231-4117
LOCK NUT,7/16"-14, GB
NUT, 7/16 prevailing torque
1шт.
607891R1
WASHER
15/32 x 1 x 16 ga C-Z
1шт.
22
155025C1
PAWL, ground speed control lever
1шт.
18779R1
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
3/8 x 1-1/2 znd hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
23
28459KA
WASHER
ground speed control lever pawl
1шт.
24
COLUMN ASSY, steering, refer to group 5 under steering column, wheel and steer cylinder
1шт.
25
178599C1
KNOB, ground speed control lever, serial no. 8001 and above
1шт.
