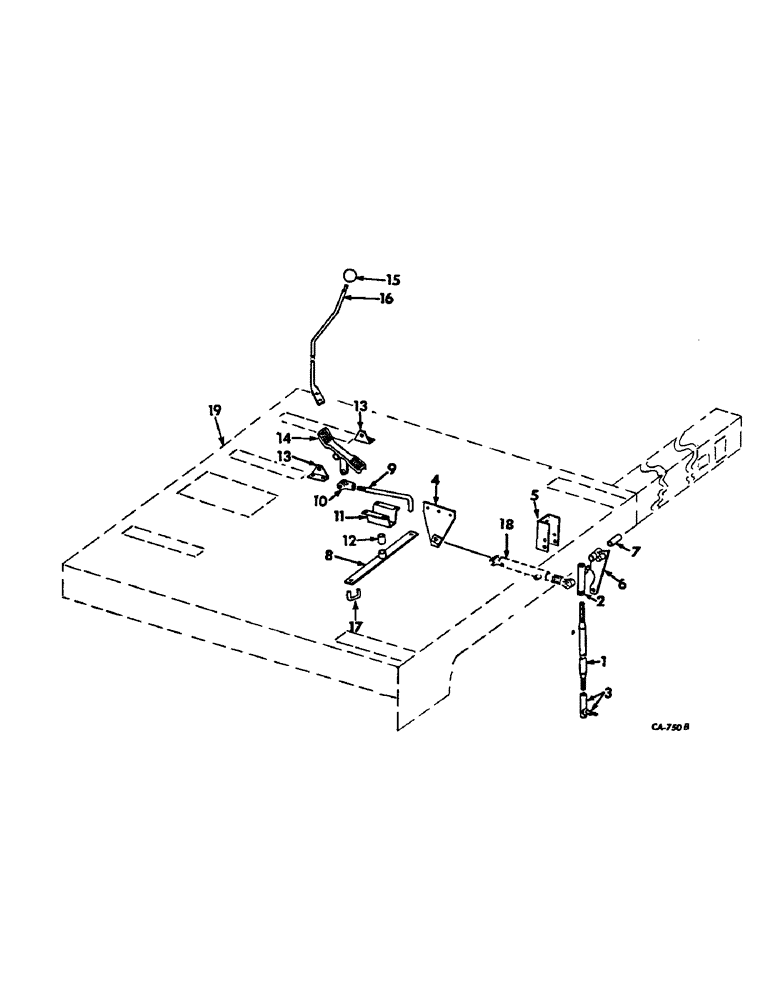

Запчасти Case IH 715 (07-26) - DRIVE TRAIN, PROPULSION CONTROL, BELT DRIVE Drive Train

1

936606R2

TURNBUCKLE

ROD, propulsion drive control

1шт.

120371

NUT,1/2"-20, G5

1шт.

280963

NUT,Nut, 1/2-20 GR 5 ZND

1/2-20 znd hex. LH thrd

1шт.

2

936613R91

SOCKET

BALL JOINT ASSY, propulsion drive control rod LH thd

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

936614R91

STEERING KNUCKLE

BALL JOINT ASSY, propulsion drive control rod

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

627419R1

ANCHOR, propulsion cyl

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

171895C1

BRACKET ASSY, bellcrank mount

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

20281R1

BOLT,Hex, 1/2"-13 x 3 3/4", G2

1/2 x 3-3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

936609R91

LEVER ASSY, propulsion control, includes ref no 7

1шт.

7

580184R1

BUSHING, bellcrank tube

1шт.

8

627425R91

BAR ASSY, speed control pivot

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372

WASHER, 13/32 x 1-1/4 x 16 ga C-Z

1шт.

9

938295R1

ROD, front control

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

10

144243

CLEVIS

3/8-24 adjusting rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

11

627429R1

SUPPORT, speed control pivot bar

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

12

574464R1

BUSHING, speed control pivot bar

1шт.

13

574471R1

BRACKET, foot control pivot

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

23455R1

PIN, 7/16 x 2-7/8 C-Z std hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z stl-truss hd

4шт.

14

631486R1

PEDAL, foot control

1шт.

15

163574C1

KNOB

propulsion drive control lever, serial no. 8000 and below

1шт.

16

939245R1

LEVER, propulsion drive control, serial no. 8000 and below

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

633673R1

ROD, propulsion rear control

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

18

CYLINDER ASSY, propulsion control, refer to group 10 under propulsion control cylinder

1шт.

19

PLATFORM ASSY, operators, refer to group 13 under operators platform and ladder

1шт.
