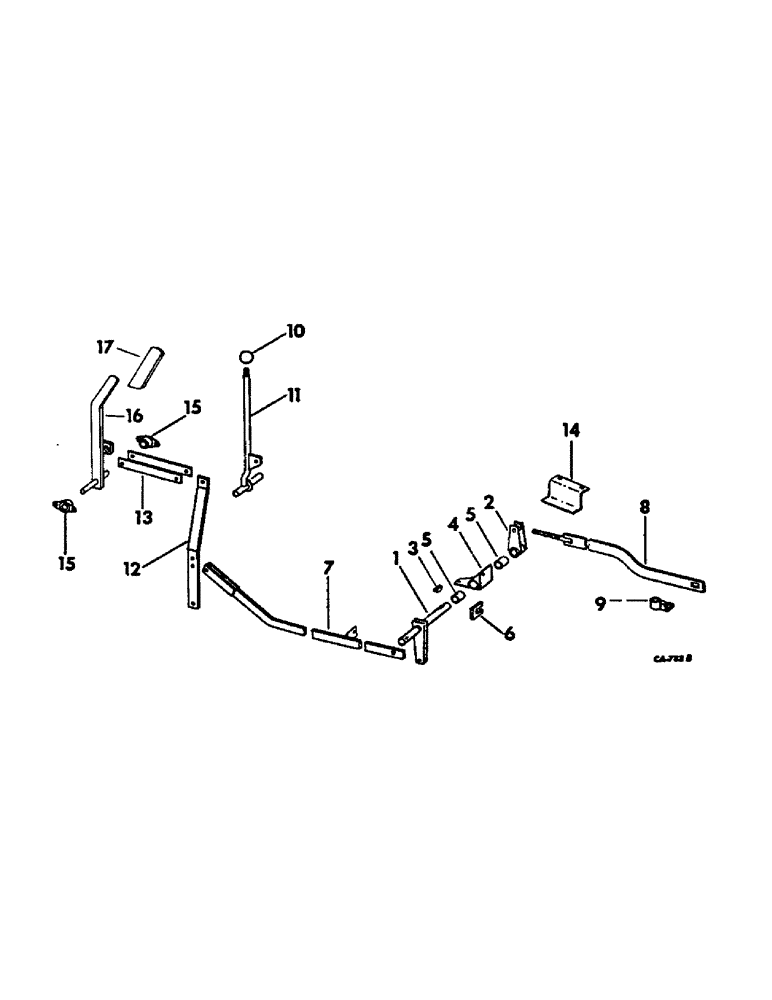

Запчасти Case IH 715 (07-25) - DRIVE TRAIN, SEPARATOR DRIVE CLUTCH CONTROL Drive Train

1

171221C1

SHAFT

ASSY, clutch control pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

17шт.

2

631204R91

ARM

ASSY, clutch control pivot upper

1шт.

3

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

4

172251C1

PIVOT

ASSY, clutch control, includes ref no 5

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

5

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

2шт.

6

589713R1

SHIM

bolt

1шт.

7

171981C1

BAR ASSY, clutch front control

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

8

629897R91

BAR

ASSY, separator drive clutch rear

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

9

155644C1

LEVER

separator clutch pivot

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

163574C1

KNOB

SEPARATOR DRIVE CLUTCH LEVER, serial no. 5328 and below

1шт.

11

171223C2

LEVER ASSY, separator drive clutch, serial no. 5328 and below

1шт.

12

938818R1

STRAP SEPARATOR DRIVE CLUTCH LEVER

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

13

938817R1

STRAP, separator drive clutch lever connector

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

14

171982C2

BRACKET, separator control stop

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, feeder drive lever

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 stl-truss-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

175438C1

LEVER ASSY, separator drive clutch, serial no. 5329 and above

1шт.

17

938885R1

GRIP

separator drive clutch lever, serial no. 5329 and above

1шт.
