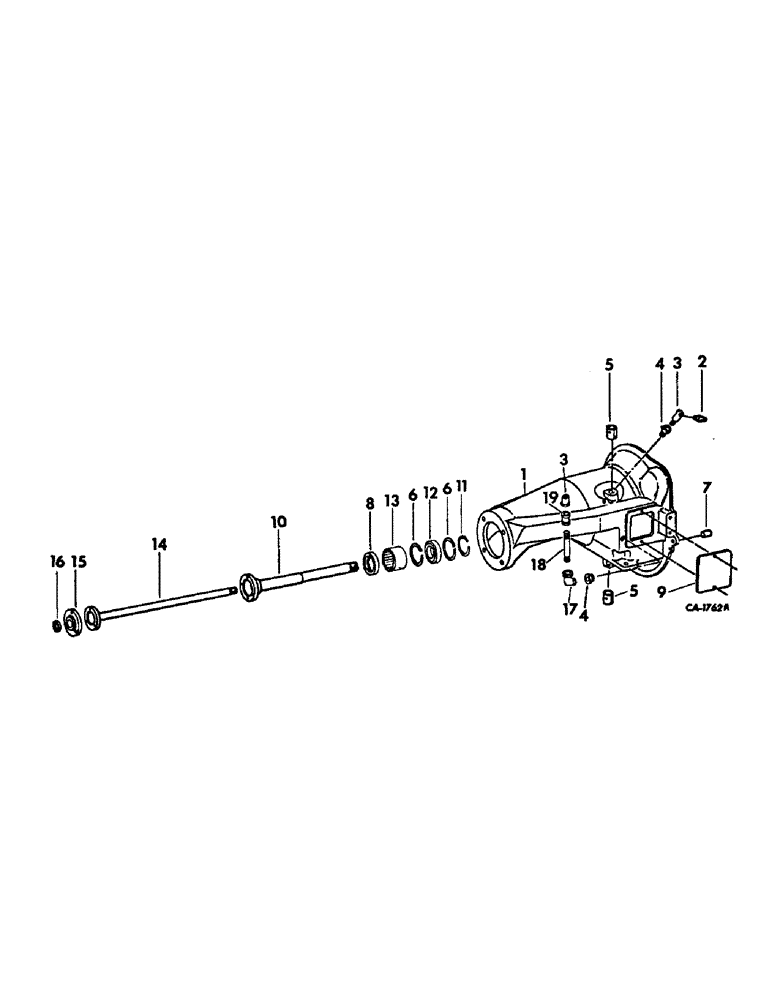

Запчасти Case IH 715 (07-24) - DRIVE TRAIN, SEPARATOR CLUTCH HOUSING, HYDROSTATIC DRIVE Drive Train

1

150789C21

HOUSING

ASSY, separator clutch, includes ref no. 5

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

SCREW, 1/4-20 x 1-3/4 znd hex-hd cap

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

2

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 30 deg angle lub

1шт.

3

62022R91

FITTING

pressure relief

1шт.

4

NLS

NO LONGER SERVICED

REDUCER, 1/2 x 1/8, brass

1шт.

5

450263R1

BUSHING

separator clutch

2шт.

6

163648C1

SNAP RING,#334, 3.590", Int

separator clutch housing

2шт.

7

159851C1

DOWEL, separator clutch housing

2шт.

8

631713R91

OIL SEAL

OIL SEAL, separator clutch housing

1шт.

9

150625C1

COVER, separator clutch housing

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

629836R1

TUBE

separator drive

1шт.

11

631255R1

SNAP RING,#177, Ext

Ring, Snap, , drive shaft bearing #177, Ext

1шт.

12

113568R91

BALL BEARING,1.7712" ID x 3.35" OD x 0.75"

BEARING, drive shaft ball

1шт.

13

631306R91

ROLLER BEARING,1.9685" ID x 3.5433" OD x 0.7874"

separator clutch housing roller

1шт.

14

150621C1

SHAFT

pump drive

1шт.

15

150622C1

SPACER

pump drive shaft

1шт.

16

150623C1

WASHER

pump drive shaft

1шт.

17

127960

ELBOW

1/8 x 90 deg street, for use w/straw chopper

1шт.

18

192415

PIPE,Nipple, 1/8" NPT x 3 1/2"

NIPPLE, 1/8 x 3-1/2 pipe, for use w/straw chopper

1шт.

19

144067

COUPLING,1/8" NPT, Fem

1/8 pipe, for use w/straw chopper

1шт.
