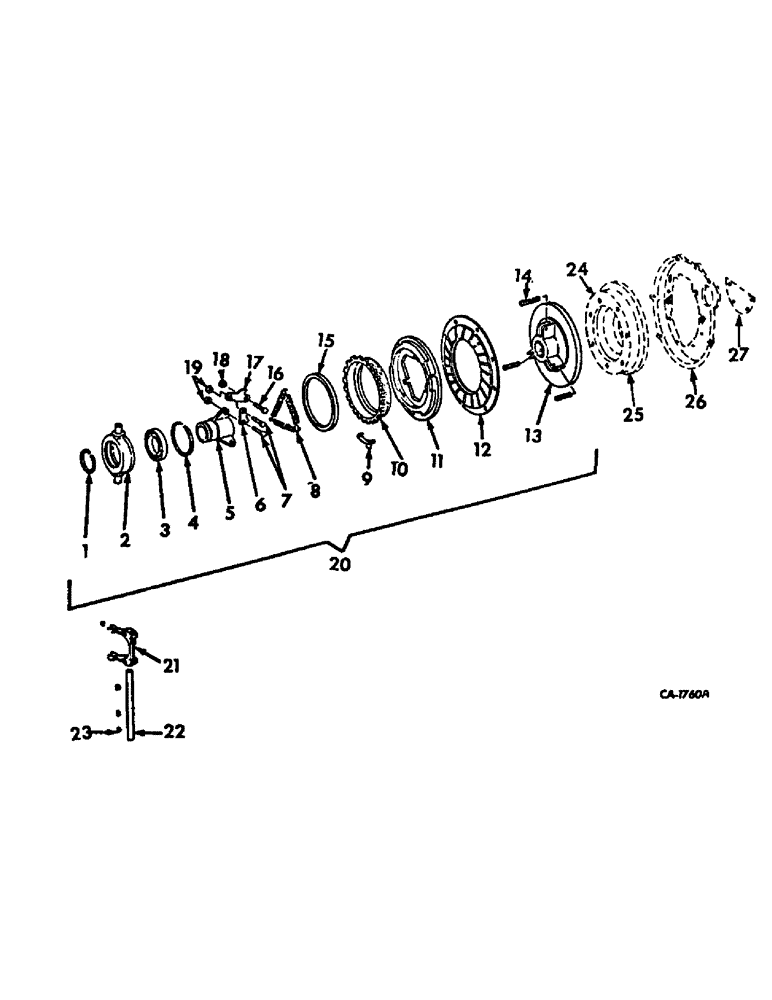

Запчасти Case IH 715 (07-22) - DRIVE TRAIN, SEPARATOR CLUTCH Drive Train

1

29780D

RING

SNAP RING, external

1шт.

2

155471C1

BEARING CARRIER

CARRIER, bearing

1шт.

3

633704R91

BEARING ASSY,2.3622" ID x 3.7402" OD x 0.7087"

ball

1шт.

4

304780R1

RING, SNAP

SNAP RING, internal

1шт.

5

161167C11

SLEEVE

W/BUSHING, release

1шт.

6

266696R1

DRAG LINK

LINK, connecting

6шт.

7

266697R1

AXLE PIN

PIN, clevis

6шт.

8

268865R91

VALVE SPRING

SPRING, lever

1шт.

9

319531R1

STOP

LOCK, adjusting

1шт.

19559R1

SCREW, 1/4-20 x 3/8 hex-hd

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

10

347871R1

NUT

adjusting

1шт.

11

268958R91

PLATE ASSY.

KIT ASSY, pressure plate, incl ref. no. 9

1шт.

12

154759C91

CLUTCH DISC

PLATE AND FACE ASSY, drive

1шт.

13

161166C1

CLUTCH ASSEMBLY

BODY, clutch

1шт.

14

266704R1

VALVE SPRING

SPRING, separator

6шт.

15

347872R1

LARGE PLATE

RING, plate adjusting

1шт.

16

266694R1

AXLE PIN

PIN, clevis

3шт.

17

268866R1

LEVER

3шт.

18

255395R1

RING

retaining

3шт.

19

266698R1

RING

retaining

6шт.

20

161165C91

CLUTCH ASSEMBLY

CLUTCH ASSY, 10 in. incl ref. nos. 1 thru 19

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

21

266664R91

CLEVIS COUPLING

YOKE ASSY, clutch

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

7шт.

22

159945C1

SHAFT

clutch pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

7шт.

23

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

24

FLYWHEEL ASSY, refer to eng-2 parts catalog section E and eng-5 parts catalog section B

1шт.

25

GEAR, flywheel ring, refer to eng-2 parts catalog section E and eng-5 parts catalog section B

1шт.

26

ADAPTER, clutch housing, refer to eng-2 parts catalog section E and eng-5 parts catalog section B

1шт.

27

SEAL, housing adapter dust, refer to eng-2 parts catalog section E and eng-5 parts catalog section B

1шт.
