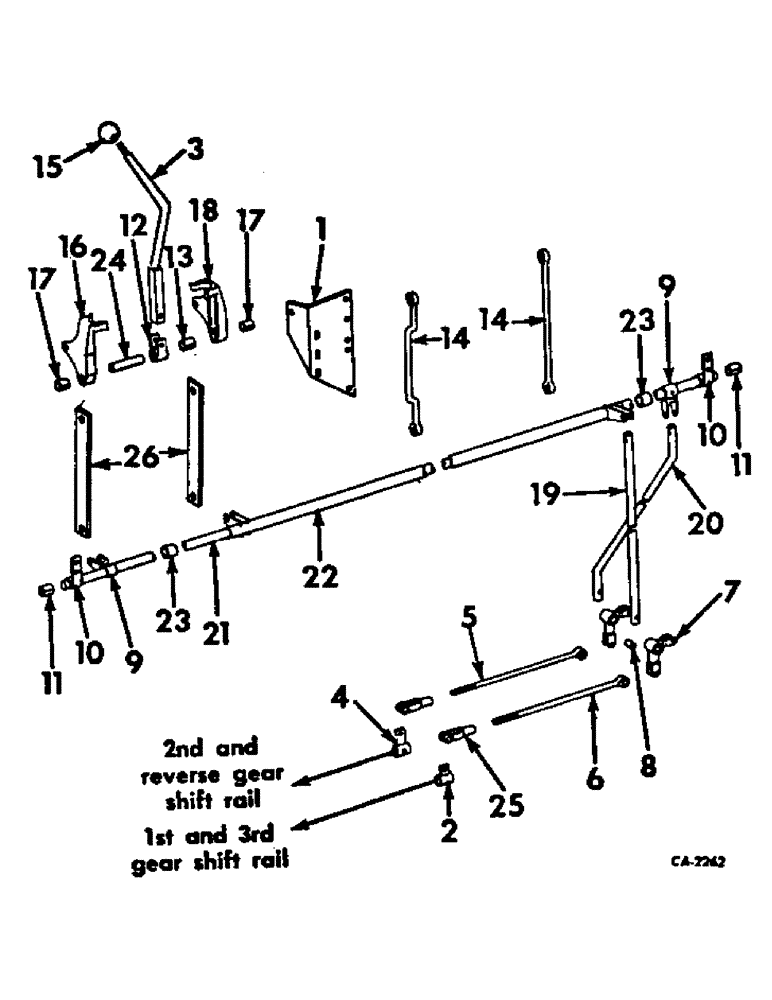

Запчасти Case IH 715 (07-21) - DRIVE TRAIN, TRANSMISSION GEAR SHIFT AND LINKAGE Drive Train
№
Артикул
Название
Примечание
Количество
1
938829R91
SUPPORT ASSY, shift lever
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 znd hex-hd mach
1шт.
18788R1
BOLT
3/8 x 4-1/2 hex-hd
1шт.
18794R1
BOLT,Hex, 7/16" - 14 x 1", Gr 2
7/16 x 1 C-Z hex-hd mach
2шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
271501
SOCKET
NUT, 7/16-14 C-Z hex.
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
2
175960C1
ARM ASSY, 1st & 3rd gear shift rail
1шт.
576485R1
LOCK PIN,1/4" x 1 1/4", Slotted
1шт.
3
938848R91
LEVER ASSY, shift
1шт.
17244R1
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, 5/16" x 1 1/4", Slotted
1шт.
4
175963C1
ARM ASSY, 2nd & reverse gear shift rail
1шт.
576485R1
LOCK PIN,1/4" x 1 1/4", Slotted
1шт.
5
583249R1
ROD, gear shift lower front, serial no. 5328 and below
1шт.
5
175965C1
ROD, gear shift lower front, serial no. 5329 and above
1шт.
425-157
JAM NUT,Jam, 7/16"-20, G5
1шт.
6
169325C1
ROD, gear shift lower rear, serial no. 5328 and below
1шт.
6
175965C1
ROD, gear shift lower rear, serial no. 5329 and above
1шт.
425-157
JAM NUT,Jam, 7/16"-20, G5
1шт.
7
170905C2
BELLCRANK, gear shift connector lower, serial no. 5328 and below
2шт.
7
175966C1
LEVER
BELLCRANK, gear shift connect lower, serial no. 5329 and above
2шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 straight lub
2шт.
18608R1
LOCK PIN,7.92mm OD x 25.4mm L, Coiled
Pin, 5/16" x 1", Slotted
2шт.
17244R1
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, 5/16" x 1 1/4", Slotted
2шт.
589068R1
WASHER
21/32 x 1-1/4 x 11 ga
1шт.
8
583250R1
BUSHING, gear shift connector lower
1шт.
9
564526R1
CRANK, gear shift connector shaft
2шт.
265923R1
LOCK PIN,3/16" x 1 1/4", Slotted
Pin, 3/16" x 1 1/4", Slotted
3шт.
137258
COTTER PIN
3/16" x 1 3/4"
2шт.
17244R1
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, 5/16" x 1 1/4", Slotted
4шт.
21496R1
WASHER
11/32 x 3/4 x 11 ga C-Z
2шт.
10
631647R91
BRACKET
SUPPORT ASSY, gear shift conn sft brg, includes ref no 11
2шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
12
564520R11
PIVOT
ASSY, gear shift lever, serial no. 5328 and below
1шт.
12
157360C11
ARM
PIVOT ASSY, gear shift lever, serial no. 5329 and above, includes ref no 13
1шт.
13
568920R1
BUSHING
1шт.
14
564521R1
ROD, gear shifter arm, serial no. 5328 and below
2шт.
15
163574C1
KNOB
gear shift lever
1шт.
16
626608R11
ARM ASSY, gear shift left, includes ref no. 17
1шт.
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
18608R1
LOCK PIN,7.92mm OD x 25.4mm L, Coiled
Pin, 5/16" x 1", Slotted
1шт.
17
568921R1
BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L
gear shift arm
2шт.
18
626609R11
ARM ASSY, gear shift right, includes ref no 17
1шт.
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
18608R1
LOCK PIN,7.92mm OD x 25.4mm L, Coiled
Pin, 5/16" x 1", Slotted
1шт.
19
627450R1
CONNECTOR, shift 1st & 3rd
1шт.
20
627451R2
CONNECTOR, shift 2nd and reverse
1шт.
21
569344R1
SHAFT, gear shift connector
1шт.
178375R1
WASHER
25/32 x 1-1/4 x 16 ga C-Z
8шт.
22
569345R91
TUBE ASSY, gear shift connector, includes ref no 23
1шт.
265923R1
LOCK PIN,3/16" x 1 1/4", Slotted
Pin, 3/16" x 1 1/4", Slotted
2шт.
137258
COTTER PIN
3/16" x 1 3/4"
1шт.
18608R1
LOCK PIN,7.92mm OD x 25.4mm L, Coiled
Pin, 5/16" x 1", Slotted
1шт.
17244R1
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, 5/16" x 1 1/4", Slotted
2шт.
24
564519R1
SPACER, gear shift lever pivot
1шт.
608701R1
WASHER
21/32 x 1-1/4 x 16 ga C-Z
2шт.
25
117825
CLEVIS, gear shift rod
2шт.
121224
SUPPORT
3/32" x 1"
4шт.
138085
AXLE PIN,7/16" x 1.190"
PIN, 7/16 x 1-15/64 C-Z rod end
4шт.
607891R1
WASHER
15/32 x 1 x 16 ga C-Z
2шт.
26
177133C1
LINK, gear shifter arm, serial no. 5329 and above
2шт.
Выбрано товаров: 66
