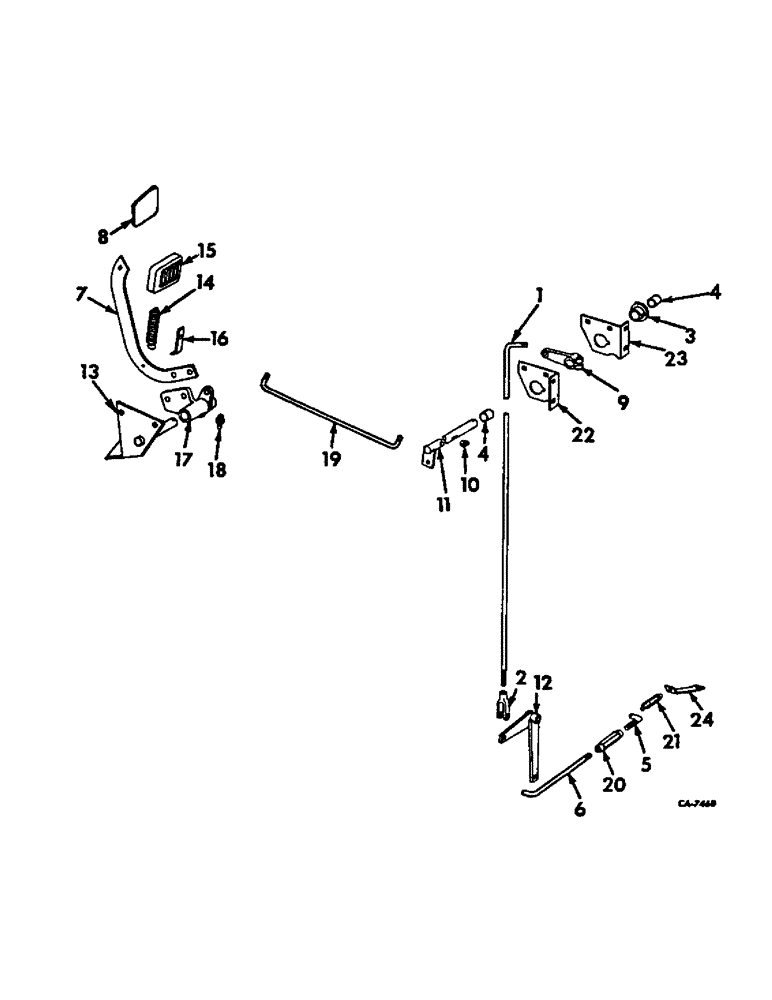

Запчасти Case IH 715 (07-19) - DRIVE TRAIN, CLUTCH PEDAL AND LINKAGE, BELT DRIVE Drive Train

1

155976C1

ROD, transmission clutch

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

2

144243

CLEVIS

adjusting rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

3

579464R11

BEARING ASSY, trans clutch shaft, includes ref no 4

2шт.

4

561905R1

BUSHING

2шт.

5

565582R1

ROD, trans clutch lower inner control

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

6

936462R1

ROD, trans clutch outer horizontal

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

7

163429C1

LEVER, transmission clutch

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 hex-hd

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

163425C1

PEDAL

transmission clutch

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

1шт.

9

172967C1

ARM, transmission clutch rear shaft

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

28459KA

WASHER

transmission clutch rear shaft arm

1шт.

11

627460R91

SHAFT ASSY, transmission clutch rear

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

5шт.

12

568815R91

BELLCRANK ASSY, transmission clutch, serial no. 8000 and below

1шт.

12

177481C1

LEVER ASSY, transmission clutch, serial no. 8001 and above

1шт.

13

174807C2

PIVOT ASSY, transmission clutch

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

14

228

SPRING

transmission clutch arm return

1шт.

15

863426R1

PAD

transmission clutch pedal

1шт.

16

938869R1

STRIP, transmission clutch lever stop

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

938870R1

PIVOT, transmission clutch pedal arm

1шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

19

173839C1

ROD

transmission clutch upper

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

20

MA3973

TURNBUCKLE, transmission horizontal control

1шт.

21

165

SPRING

transmission clutch return

1шт.

22

633283R1

BRACKET, transmission clutch rear shaft left

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

23

633284R1

BRACKET, transmission clutch rear shaft right

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

24

633701R1

BRACKET, transmission clutch return spring

1шт.
