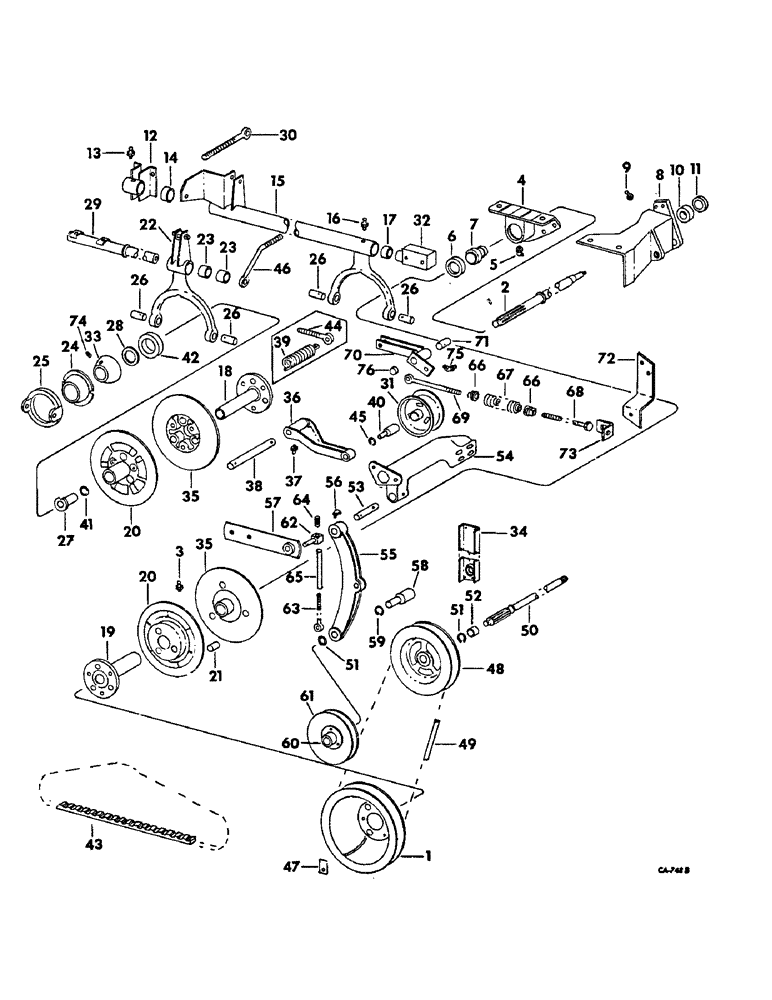

Запчасти Case IH 715 (07-16) - DRIVE TRAIN, PROPULSION DRIVE, BELT DRIVE Drive Train

1

633354R1

PULLEY, propulsion jackshaft driven, 16-1/8 in. OD

1шт.

2

627541R11

SHAFT

JACKSHAFT ASSY, propulsion

1шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2-20 C-Z slt. hex.

1шт.

219760

BACK-UP RING

1-14 C-Z hex. jam

1шт.

119120

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32 x 1 1/4"

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga C-Z

1шт.

21102R1

WASHER

1-1/32 x 2-1/4 x 11 ga C-Z

1шт.

22822R1

WASHER

1-21/32 x 2-1/2 x 16 ga C-Z

3шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

4

627545R11

SUPPORT ASSY, propulsion jackshaft left brg

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

6

631705R91

SEAL

propulsion jackshaft left brg

1шт.

7

631986R91

BALL BEARING,1.6255" ID x 85 mm OD x 1.6875"

ball propulsion jackshaft left

1шт.

8

170901C2

HANGER, propulsion jackshaft & fan drive

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.

10

632034R91

BALL BEARING,30 mm ID x 62 mm OD x 24 mm

ball propulsion jackshaft right

1шт.

11

632033R91

OIL SEAL

propulsion jackshaft right brg

1шт.

12

565352R91

SUPPORT

BRACKET ASSY, propulsion puller support post, includes ref no 14

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NF str lub

1шт.

14

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

2шт.

15

936601R91

LEVER ASSY, propulsion, includes ref no 17

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21955R1

HEADED PIN,1/2" x 1 5/8"

PIN, 1/2 x 1-5/8 C-Z std-hd

1шт.

22801R1

WASHER

1-17/32 x 2 x 16 ga C-Z

3шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga C-Z

3шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NF str lub

1шт.

17

936743R1

BUSHING

2шт.

18

633350R1

HUB

SLEEVE, drive pulley frt

1шт.

271748

SNAP RING

SCREW, 5/8-18 x 2 C-Z hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

19

633351R1

SLEEVE

drive pulley rear

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

20

633352R11

PULLEY

ASSY, propulsion drive, includes ref no 21, 14 in. OD

2шт.

21

633433R1

BEARING

BUSHING

6шт.

22

565410R91

ARM ASSY, propulsion pulley adj pivot, includes ref no 23

1шт.

23

565414R1

BUSHING

2шт.

24

565366R1

OIL SEAL

RING, propulsion variable speed pulley adj outer

2шт.

25

565367R1

SHOE, propulsion variable speed pulley adj outer

2шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

4шт.

26

565345R1

SHAFT

adj arm pivot

4шт.

27

574257R1

STOP

transmission shaft

1шт.

28

565371R1

WASHER

adj ring felt

2шт.

29

565416R91

SHAFT ASSY, propulsion pulley outer pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga C-Z

2шт.

126A

WASHER

1-17/32 x 2 x 11 ga

1шт.

22801R1

WASHER

1-17/32 x 2 x 16 ga C-Z

11шт.

30

565415R1

BOLT,1/2" - 20 x 8"

propulsion pulley adj arm connecting

1шт.

120371

NUT,1/2"-20, G5

2шт.

31

569963R1

PULLEY

propulsion drive belt tightener, 7-5/8 in. OD

1шт.

32

936749R1

SUPPORT, propulsion pulley pivot shaft

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

33

564797R1

OIL SEAL

RING, adj inner

2шт.

34

171015C1

BRACE ASSY, propulsion jackshaft RH bearing support, grain tank

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

35

633353R11

PULLEY

W/PINS, propulsion driven adjusting half, 14 in. OD

2шт.

36

629519R1

ARM, propulsion belt tightener, for use w/torsion spring, serial no. 8000 and below

1шт.

432482

PLUG,5/8"

5/8 button

1шт.

36

174580C1

ARM, propulsion belt tightener, for use w/extension spring

1шт.

37

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

38

629520R1

SHAFT

propulsion belt tightener pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

10шт.

39

629521R1

SPRING

propulsion belt tightener, for use w/torsion spring, serial no. 8000 and below

1шт.

40

ST634

BEARING ASSY

BEARING, propulsion belt tightener ball, serial no. 8000 and below

1шт.

40

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

propulsion belt tightener ball, serial no. 8001 and above

1шт.

41

382432R1

O-RING,1.984" ID x 0.139" Width

2 x 2-1/4 x 1/8

4шт.

42

559156R91

BEARING

propulsion pulley adj ring

2шт.

43

173110C1

BELT,1.50" W x 98.98" L

V-BELT , Propulsion drive 1.50" W x 98.98" L

1шт.

44

559017R1

BOLT,Eye, 1/2" - 13 x 4 1/8", Full Thd

propulsion belt tightener spring, for use w/torsion spring, serial no. 8000 and below

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

45

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, propulsion belt tightener snap

1шт.

46

935916R1

BOLT,Eye, 5/8" - 11 x 274.32mm, Bent

BRACE, propulsion pulley pivot shaft

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

21882R1

WASHER, 21/32 x 2 x 16 ga C-Z

1шт.

47

633349R1

LOCKING PLATE

KEEPER, propulsion jackshaft lock nut

1шт.

48

627732R1

PULLEY, propulsion jackshaft drive, 12-1/4 in. OD, gasoline engine

1шт.

48

172231C1

PULLEY, propulsion jackshaft drive, 11-1/2 in. OD, diesel engine

1шт.

49

937931R1

V-BELT

Propulsion jackshaft drive, Gasoline engine

1шт.

49

172230C1

BELT,1.259" W x 174.73" L

V-BELT , Propulsion jackshaft drive, Diesel engine 1.259" W x 174.73" L

1шт.

50

629838R1

SHAFT

propulsion drive

1шт.

543386R1

LOCK NUT,7/8"-14, G5

NUT, 7/8-14 hex. lock type NTU

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

51

659380R1

SNAP RING,#137, Ext

Ring, Snap, , propulsion drive shaft brg #137, Ext

1шт.

52

658135R91

BEARING

propulsion drive shaft ball

1шт.

53

628292R1

SHAFT

propulsion jackshaft drive belt tightener arm pivot

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8-16 x 1 C-Z sq-hd cup-pt

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

5шт.

54

627548R1

SUPPORT, propulsion jackshaft drive belt tightener

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 C-Z hex-hd cap

4шт.

180160

SCREW,Hex, 7/16" - 14 x 3"

7/16 x 3 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

4шт.

55

564765R1

ARM

propulsion jackshaft drive belt tightener

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1-3/4 C-Z std-hd

1шт.

56

16964R91

FITTING

1/4-28NS 90 deg angle lub

1шт.

57

569456R91

BRACKET

ASSY, propulsion jackshaft drive belt tightener adjusting

1шт.

58

ST634

BEARING ASSY

BEARING, propulsion jackshaft drive belt tightener ball, serial no. 8000 and below

1шт.

58

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

propulsion jackshaft dr belt tightener ball, serial no. 8001 and above

1шт.

59

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, propulsion jackshaft drive belt tightener sheave hub snap

1шт.

60

564729R1

HUB, propulsion jackshaft drive belt tightener pulley

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

61

569193R11

PULLEY

ASSY, propulsion jackshaft drive belt tightener, 7-5/8 in. OD

1шт.

62

564731R1

TRUNNION

propulsion jackshaft drive belt tightener adj bolt

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

63

585455R1

BOLT

DRAWBOLT, propulsion jackshaft drive belt tightener adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

64

VC682

VALVE SPRING

SPRING, propulsion jackshaft drive belt tightener drawbolt

1шт.

65

569199R1

SPACER

SLEEVE, propulsion jackshaft drive belt tightener drawbolt

1шт.

66

PO2327

PLUG

propulsion belt tightener spring, for use w/extension spring

2шт.

67

174567C91

SPRING

W/PLUGS, propulsion belt tightener, includes ref no. 66, for use w/extension spring

1шт.

68

174569C1

BOLT, propulsion belt tightener spring front, for use w/extension spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

69

629176R1

BOLT, propulsion belt tightener spring rear, for use w/extension spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

70

174570C91

ARM

ASSY, tightener control, includes ref. nos. 71 and 76, for use w/extension spring

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

456273R1

PIN, 3/8 x 1-3/8 znd std-hd

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 znd std-hd hts

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

71

584150R1

BUSHING

tightener control arm hub, for use w/extension spring, serial no. 8000 and below

1шт.

72

174574C1

BRACKET, spring anchor, for use w/extension spring

1шт.

73

174575C1

ANGLE, spring anchor, for use w/extension spring

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

74

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8 sq-hd pipe

2шт.

75

19625R1

FITTING, 1/4-28 taper self tap

1шт.

76

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

tightener control arm hub, serial no. 8001 and above

2шт.
