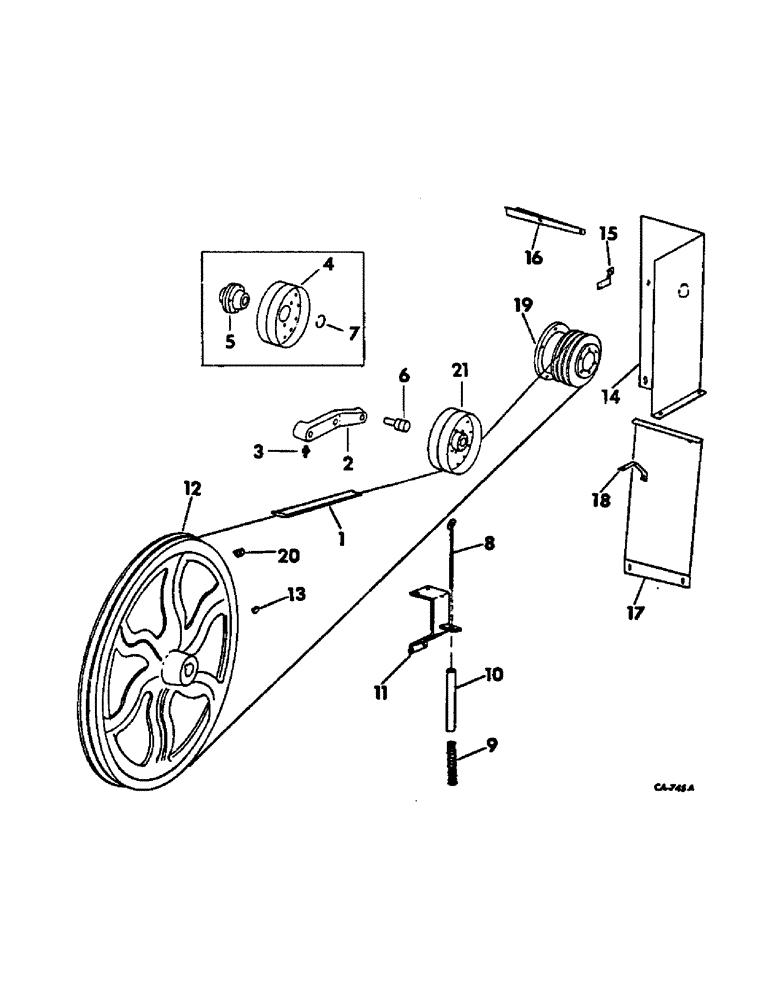

Запчасти Case IH 715 (07-14) - DRIVE TRAIN, SEPARATOR DRIVE Drive Train

1

171226C1

BELT,0.630" W x 171.99" L, 3 Ribs

V-BELT , Separator drive 0.630" W x 171.99" L, 3 Ribs

1шт.

2

171227C1

LEVER

separator drive belt idler pulley

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1-3/4 C-Z std-hd

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

4

171228C11

PULLEY

ASSY, separator drive belt idler, 8 in. OD, serial no 3250 and below

1шт.

5

171675C1

HUB, separator drive idler pulley, serial no 3250 and below

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

ASSY, separator drive idler pulley

1шт.

7

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, idler pulley snap, serial no. 3250 and below

1шт.

8

164770C1

BOLT, separator drive tightener pulley draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga

1шт.

9

523267R1

SPRING

separator drive belt idler pulley draw bolt

1шт.

10

159273C1

TUBE,.531" ID, .625" OD, 6.6" Length

separator drive belt idler pulley draw bolt spring

1шт.

11

171229C1

BRACKET ASSY, separator drive draw bolt

1шт.

12

171232C1

PULLEY, separator driven, 33 in. OD

1шт.

13

218216

WOODRUFF KEY,#V, 1/2" x 2 3/4", HT

KEY, 1/2 x 2-3/4 Woodruff hard

1шт.

14

172152C1

SHIELD, PTO belt drive, belt drive

1шт.

18657R1

BOLT,Hex, 1/4"-20 x 1-1/2", G2

1/4 x 1-1/2 hex-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

4шт.

15

172148C1

STRAP, PTO shield support, belt drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

16

172150C1

ANGLE, PTO shield support, belt drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

17

172153C1

SHIELD, PTO drive, hydrostatic drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

18

172151C1

STRAP, PTO shield support, hydrostatic drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

19

172228C1

PULLEY, separator drive, 7-1/2 in. OD, gasoline engine

1шт.

19

172229C1

PULLEY, separator drive, 6-1/2 in. OD, diesel engine

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

20

166876C1

WEIGHT

balance

1шт.

654859R1

SELF-TAP SCREW,1/4" - 20 x 1 1/2"

SCREW, 1/4 x 1-1/2 hex-hd self tapping

5шт.

21

174756C1

PULLEY

ASSY, separator drive belt idler, 8 in. OD, serial no. 3251 and above

1шт.
