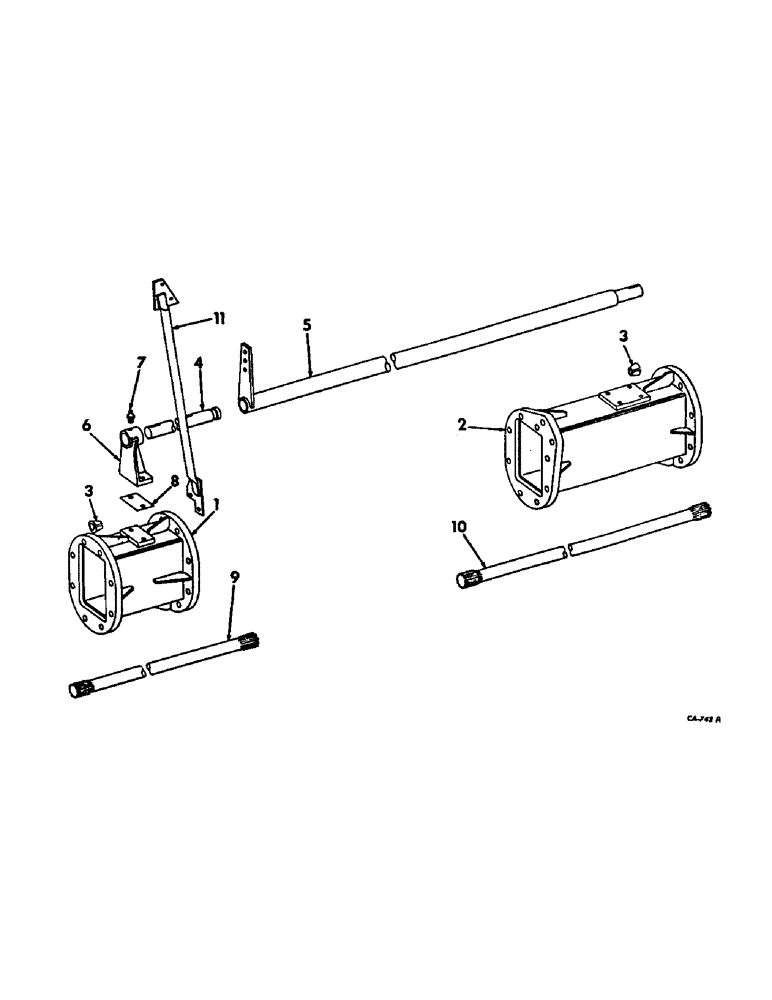

Запчасти Case IH 715 (07-12) - DRIVE TRAIN, MAIN AXLE 120 IN. TREAD EXTENSION, FOR USE W/ OPERATORS PLAT. EXTENSION Drive Train

1

173227C1

EXTENSION ASSY, main axle LH, for 18.4-26 main wheel tires

1шт.

1

173229C1

EXTENSION ASSY, main axle LH, for 23.1-26 main wheel tires

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 hex-hd type 8

5шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 hex-hd type 8

2шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex. type 8

7шт.

366866C1

LOCK WASHER,5/8"

5/8"

7шт.

138557

WASHER,Int Tooth, 5/8"

5/8 znd int-tooth lock

4шт.

2

173228C1

EXTENSION ASSY, main axle RH, for 18.4-26 main wheel tires

1шт.

2

173230C1

EXTENSION ASSY, main axle RH, for 23.1-26 main wheel tires

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 hex-hd type 8

6шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 hex-hd type 8

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex

2шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex type 8

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

366866R1

RING

WASHER, 5/8 znd rib lock

8шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int-tooth lock

1шт.

3

54700R1

DOWEL

main axle extension

8шт.

4

151248C1

SHAFT, wheel brake LH, for 18.4-26 main wheel tires

1шт.

4

150426C1

SHAFT, main axle extension LH, for 23.1-26 main wheel tires

1шт.

5

151246C91

PIPE ASSY, wheel brake RH torque, for 18.4-26 main wheel tires

1шт.

5

165934C91

PIPE ASSY, wheel brake RH torque, for 23.1-26 main wheel tires

1шт.

6

150428C1

HOUSING, wheel brake LH pivot

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NF str lub

1шт.

8

150427C1

STRAP, wheel brake LH pivot housing

4шт.

9

173167C1

SHAFT, axle drive LH, for 18.4-26 main wheel tires

1шт.

9

173166C1

SHAFT, axle drive LH, for 23.1-26 main wheel tires

1шт.

10

173171C1

SHAFT, axle drive RH, for 18.4-26 main wheel tires

1шт.

10

173170C1

SHAFT, axle drive RH, for 23.1-26 main wheel tires

1шт.

11

173165C1

BRACE ASSY, main axle extension, serial no. 8000 and below

1шт.

11

177483C1

BRACE ASSY, main axle extension, serial no. 8001 and above

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk-crg

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex. type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22264R1

WASHER

.406 x 1 x 7 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22245R1

WASHER, .531 x 1 x 7 ga

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.
