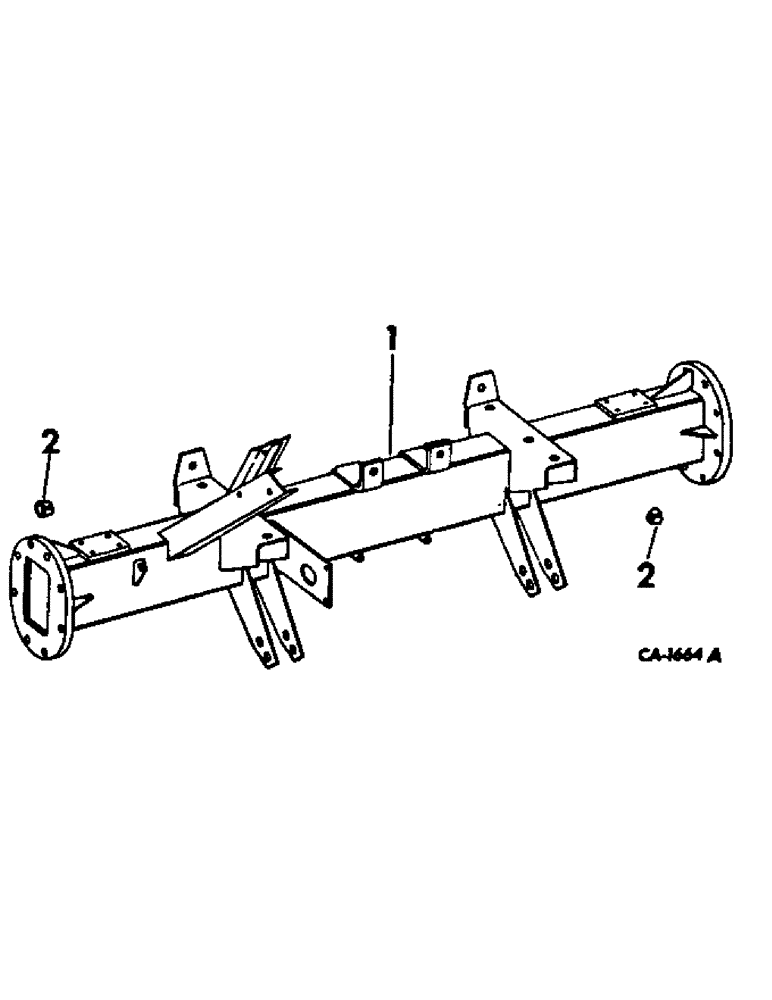

Запчасти Case IH 715 (07-11) - DRIVE TRAIN, MAIN AXLE Drive Train

1

171972C3

AXLE ASSY, belt drive and rubber tires

1шт.

1

171973C2

AXLE ASSY, belt drive and track, serial no. 8000 and below

1шт.

1

171974C3

AXLE ASSY, hydrostatic drive and rubber tires

1шт.

1

171975C2

AXLE ASSY, hydrostatic drive and track, serial no. 8000 and below

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 C-Z hex-hd type B

2шт.

18821R1

BOLT

5/8 x 1-1/4 znd hex-hd mach

4шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex type 5

14шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 znd std-hd DLD

1шт.

9406829

HEX SOC SCREW,1/2" - 13 x 3 1/2"

SCREW, 1/2 x 3-1/2 C-Z hex-soc-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga

4шт.

178373

WASHER, 17/32 x 1 x 16 ga C-Z

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

138502

WASHER,Ext Tooth, 5/8"

5/8 ext-tooth lock

2шт.

2

54700R1

DOWEL

main axle

4шт.
