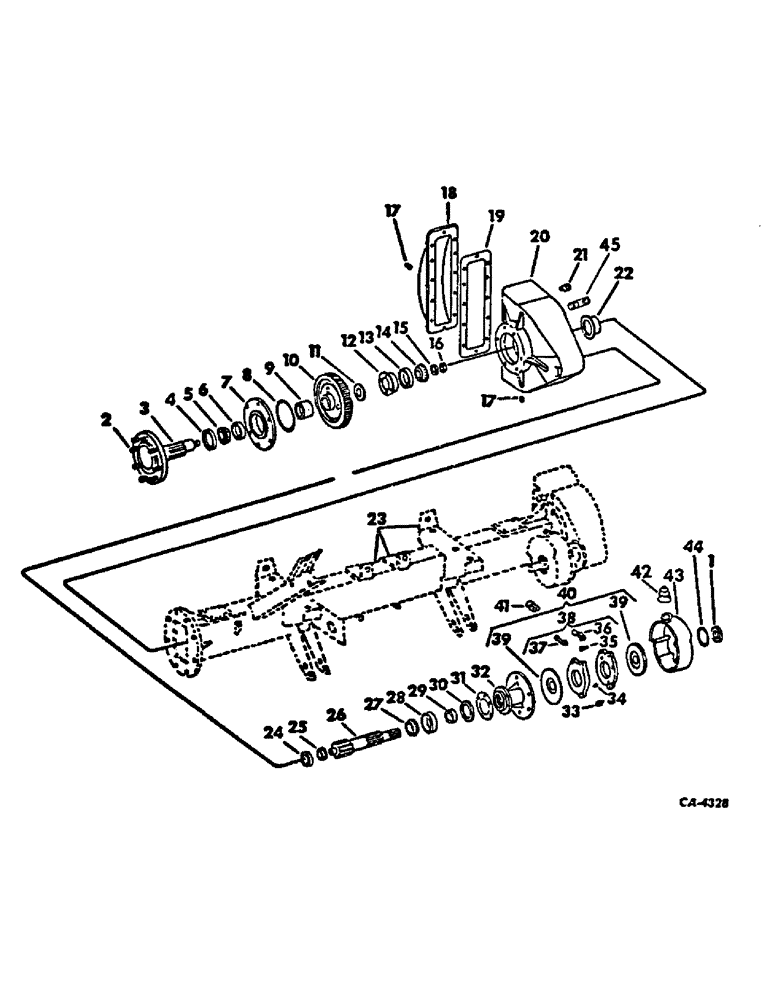

Запчасти Case IH 715 (07-06) - DRIVE TRAIN, FINAL DRIVE AND WHEEL BRAKES, SERIAL NO. 5959 AND BELOW Drive Train

1

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

brake housing dirt

2шт.

2

379510R2

BOLT,5/8" - 18 x 3 1/16"

wheel

16шт.

369621C1

NUT

5/8-18 wheel bolt, not used w/track

16шт.

554480R1

WHEEL NUT

5/8-18 wheel bolt, used w/track

16шт.

2

174280C91

PACKAGE

main wheel stud, consists of (1) stud 174197C1 (NSS) (1) nut 274639

1шт.

3

404070R1

SHAFT, final drive

2шт.

4

404489R91

OIL SEAL,83.57mm ID x 127.1mm OD x 11.89mm Thk

OIL SEAL, final drive outer bearing cage

2шт.

5

ST2157

TAPERED BEARING,3.035" ID x 4.8126" OD x 1.3"

BEARING ASSY, final drive shaft outer cone

2шт.

6

ST985

CUP

BEARING, final drive shaft outer cup

2шт.

7

404077R1

CAGE, final drive outer bearing

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

8

606922C1

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

5-3/4 x 6 x 1/8, final drive housing

2шт.

9

404071R1

BUSHING

SPACER, final drive shaft outer

2шт.

10

384101R91

GEAR ASSY, final drive

2шт.

373109R1

RIVET, final drive gear

12шт.

11

404074R1

SPACER

SPACER, final drive gear inner

2шт.

12

404075R1

RETAINER, final drive inner bearing

2шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

8шт.

13

ST863

BEARING CUP,93.22mm OD x 23.81mm W

BEARING, final drive shaft inner cup

2шт.

14

ST2122

BEARING ASSY,52.39mm ID x 30.16mm W

final drive shaft inner cone

2шт.

15

404076R1

WASHER

final drive shaft

2шт.

16

528935R1

NUT

final drive shaft

2шт.

103391

COTTER PIN,1/8" x 2 1/2"

Pin, Split (Cotter), 1/8" x 2 1/2"

2шт.

17

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 auto. sq-hd pipe

4шт.

18

587078R91

PAN ASSY.

PAN ASSY, final drive housing

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

19

587655R1

GASKET

final drive housing pan

2шт.

20

379500R1

HOUSING, final drive LH

1шт.

20

379501R1

HOUSING, final drive RH

1шт.

441553R1

STUD

5/8-11 x 2.75 tap. end

12шт.

21

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

final drive housing oil, replaces 61991R91

2шт.

22

404158R1

CAP

final drive shaft

2шт.

23

AXLE ASSY, transmission, refer to this group under main axle

1шт.

24

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Final drive pinion shaft outer

2шт.

25

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, final drive pinion shaft outer cone

2шт.

26

376461R2

SHAFT

final drive pinion, 13 teeth

2шт.

27

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

ASSY, final drive pinion shaft inner cone

2шт.

28

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING, final drive pinion shaft inner cup

2шт.

29

380186R92

OIL SEAL

OIL SEAL, brake adapter

2шт.

30

317923R1

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 3-7/8 x 1/8, brake adapter

2шт.

31

376467R1

SHIM

brake adapter, .007

1шт.

31

405627R1

SHIM

brake adapter, .003

1шт.

32

379506R1

ADAPTER, brake

2шт.

141279

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

2шт.

376814R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5, W/ Nylon Pellet

SCREW, 7/16-14 x 1-1/8 hex-hd nylok

10шт.

33

619731C1

SPRING

6шт.

34

16028R1

BALL

7/8 diameter chrome steel

10шт.

35

354642R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

36

357114R91

LINK

actuating

2шт.

37

357113R1

LINK

actuating plain

2шт.

38

366182R92

BRAKE DISC

DISC ASSY, actuating

2шт.

39

321162R91

DISC

ASSY, middle

4шт.

40

321163R91

BRAKE ASSY, wheel

2шт.

41

357043R1

CLEVIS,3/8" - 24

YOKE, brake operating

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, 7/16 x 1-15/16 drilled

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

42

381699R1

BOOT

wheel brake

2шт.

43

574914R2

HOUSING

wheel brake

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

10шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

8шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, 7/16-14 x 4-1/4 hex-hd cap

2шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

10шт.

496-21047

WASHER

.469 x .92 x .051 znd

4шт.

44

(Not used in this application)

1шт.

45

441553R1

STUD

5/8-11 x 2.75 tap. end

12шт.

403876R91

1шт.

PARTS ACCESSORY, heavy duty final drive, consists of (1) bearing ST985, (1) bearing assy ST2157, (8) bolt 566206R2, (1) cage 404077R1, (1) instruction 1083724R1 (NSS), (1) nut 528935R1, (1) o-ring 606922C1, (1) pin 103391, (1) retainer 404075R1, (1) seal 404489R91, (1) shaft 404070R1, (1) spacer 404071R1, (1) spacer 404074R1, (1) washer 404076R1

1шт.
