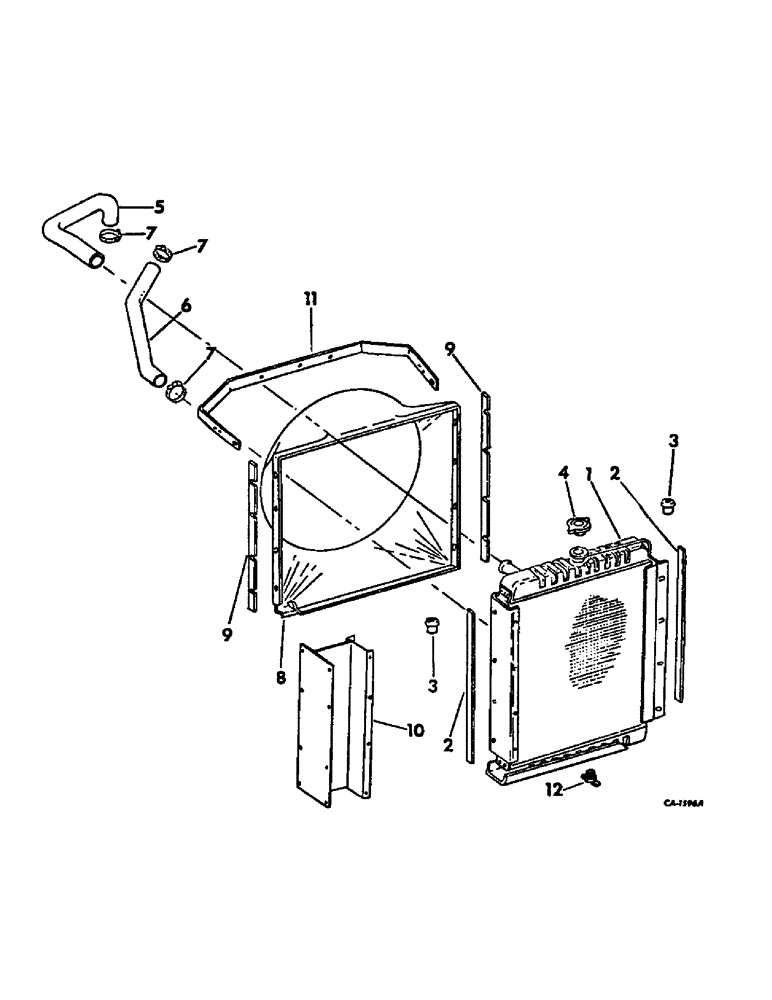

Запчасти Case IH 715 (06-04) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

400734R3

RADIATOR

ASSY, less pressure cap

1шт.

86982771

VALVE

COCK, 1/4 drain

1шт.

2

400143R1

GASKET

radiator baffle

2шт.

3

400159R1

BUMPER

MOUNT, radiator vibration

2шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16-18 x 2-1/4 znd sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, , ESNA 7/16"-14, GB

2шт.

20609R1

WASHER

15/32 x 1-3/4 x 11 ga C-Z

4шт.

4

530874R1

CAP

radiator pressure

1шт.

5

533820R1

RADIATOR HOSE,2.00" ID x 13.20"

50.80 mm ID X 335.28 mm, SAE 20R GRADE 1A, Inlet Elbow

1шт.

6

400133R1

RADIATOR HOSE,2.00" ID x 16.00", SAE 20R4 CLASS R GRADE 1A

Radiator outlet elbow 2.00" ID x 16.00", SAE 20R4 CLASS R GRADE 1A

1шт.

7

39205H

CLAMP

radiator hose

4шт.

8

400134R1

SHROUD

fan

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

6шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga

6шт.

9

405719R1

SHIM, radiator fan shroud, serial no. 8000 and below

1шт.

10

533816R1

SPACER ASSY, radiator, combines w/belt drive

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

8шт.

11

533836R1

BRACE, radiator, used w/D-301 engines and C-301 engines having fan adjusters

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

SCREW, 7/16-14 x 2.0 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

178571

LOCK WASHER,Ext-Int Tooth, 7/16"

WASHER, 7/16 ext-int tooth lock

2шт.

11

533821R1

BRACE, radiator, used w/C-301 engines not having fan adjuster

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd

1шт.

12

86982771

VALVE

COCK, radiator drain

1шт.
