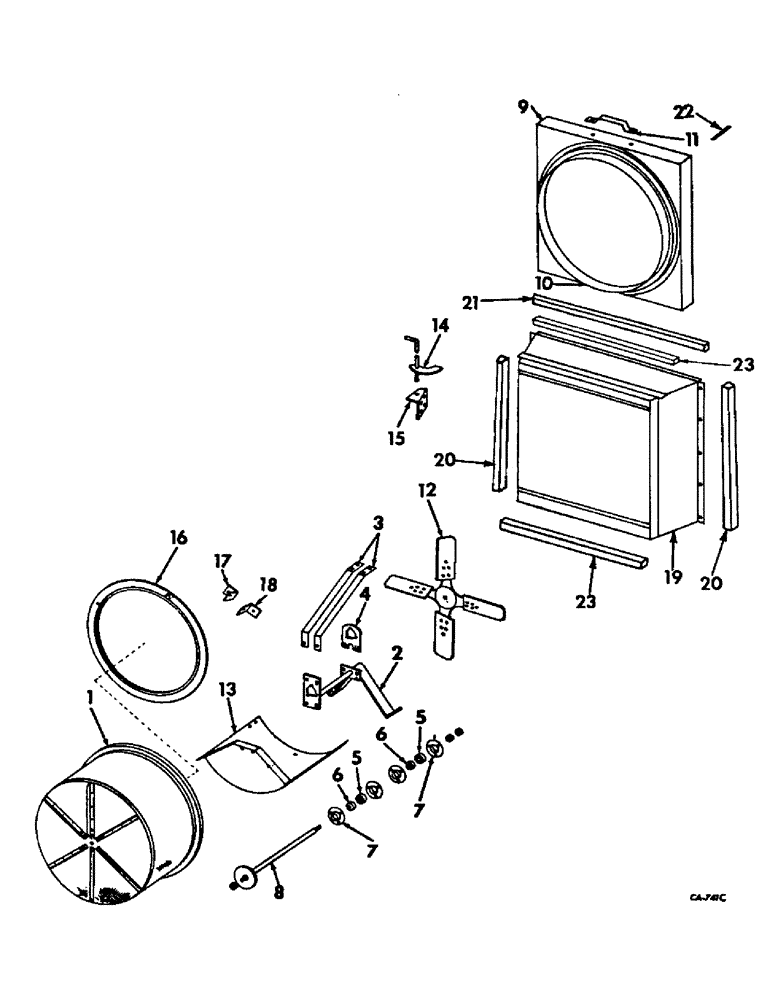

Запчасти Case IH 715 (06-02) - COOLING, ROTARY SCREEN Cooling

1

159702C91

SCREEN

SIEVE ASSY, radiator rotating fan

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

12шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 truss-hd semi-tubular

18шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-trus-hd

12шт.

2

152806C91

SUPPORT ASSY, radiator screen brg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

3

154885C1

BRACE

radiator screen brg support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

4

153570C1

BRACKET

radiator screen brg support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING ASSY, radiator rotary sieve ball

2шт.

6

468391R11

COLLAR

W/SET SCREW LKG

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

7

661147R1

FLANGED BEARING

rotating sieve brg

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

159703C91

ROD

ASSY, radiator rotating sieve

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 C-Z int tooth lock

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

9

161419C91

SHROUD ASSY, rotary air screen, includes ref no. 10

1шт.

10

161420C1

RING

rotary screen brush

1шт.

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW, rotating screen brush ring

8шт.

11

614920R1

HANDLE, shroud

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

161207C91

FAN

ASSY, 4 blade

2шт.

13

152909C91

DEFLECTOR ASSY, radiator screen

1шт.

14

154139C91

LEVER

ASSY, rotating fan support

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex-hd jam

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

15

154137C1

ANGLE, rotating fan support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

161010C91

BRUSH ASSY.

BRUSH ASSY, rotary screen, includes ref. nos. 17 and 18

1шт.

17

164616C1

ANGLE

CLIP, rotary screen brush short

1шт.

18

164617C1

ANGLE

CLIP, rotary screen brush long

1шт.

19910R1

LOCK NUT

no 10-24 C-Z lock

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no 10-24 x 1 C-Z pan hd sltd

1шт.

19

170900C1

ADAPTER ASSY, rotary screen, includes ref. nos. 20, 21 and 23

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

20

318106R1

SEAL, sta-foam sealing, 28 in. long x 1 in. wide x .38 in. thick

2шт.

21

400143R1

GASKET

SEAL, sta-foam sealing, serial no. 8000 and below, 35.4 in. long x 3/4 in. wide x 1/2 in. thick

1шт.

22

461678R1

SEAL

TAPE, .060 thick x 3/8 wide x 8 in. long

5шт.

23

155771C1

SEAL

sta-foam, 36 in. long, 1 in. wide x 1 in. thick

2шт.
