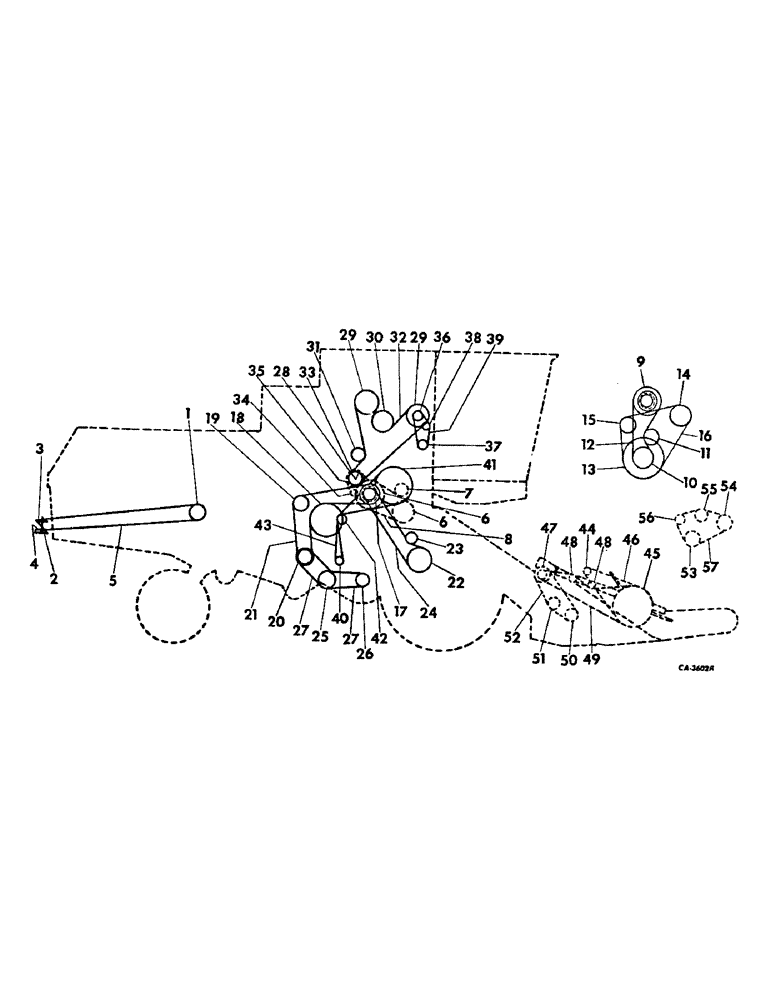

Запчасти Case IH 715 (02-11) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, RIGHT SIDE, S/N 8001 AND ABOVE Accessories & Attachments / Miscellaneous

1

936706R1

PULLEY

straw spreader drive, 6-3/4 in. OD, refer to group 20 under straw spreader

1шт.

2

21712K

PULLEY ASSY.

PULLEY ASSY, straw spreader driven, 5-3/4 in. OD, refer to group 20 under straw spreader

1шт.

3

17876K

PULLEY ASSY.

PULLEY ASSY, straw spreader drive belt idler, 5-1/8 in. OD, refer to group 20 under straw spreader

1шт.

4

48252K

PULLEY ASSY.

PULLEY ASSY, straw spreader drive belt tightener, 4-3/4 in. OD, refer to group 20 under straw spreader

1шт.

5

589622R1

V-BELT,0.63" W

Straw spreader drive, Refer to group 20 under straw spreader 0.63" W

1шт.

6

171191C1

SPROCKET, cylinder 25-T, double, chain drive

1шт.

6

158418C1

DRIVE SPROCKET

SPROCKET, cylinder 30-T, double, chain drive

1шт.

6

158421C1

SPROCKET, cylinder 48-T, double, chain drive

1шт.

6

171133C1

SPROCKET, cylinder 22-T, double, standard

1шт.

6

160121C1

SPROCKET ASSY.

SPROCKET, cylinder 35-T, double, parts accessory

1шт.

6

158420C1

SPROCKET, cylinder 54-T, double, parts accessory, chain drive, for edible bean

1шт.

6

179106C1

SPROCKET, cylinder, 75 T, chain drive, edible bean, refer to group 21 under cylinder chain drive and slip clutch

1шт.

7

172076C91

SPROCKET ASSY, cylinder drive chain tightener 20-T, double, refer to group 21 under cylidner chain drive and slip clutch

1шт.

8

CHAIN ASSY, cylinder drive double roller

1шт.

8

CHAIN ASSY, clyinder drive double roller extension, chain drive, for edible bean, refer to group 21 under cylinder chain drive and slip clutch

1шт.

9

171100C1

PULLEY, cylinder jackshaft drive, 14 in. OD

1шт.

9

171112C1

PULLEY, variable cylinder drive, 11.15 in. OD

1шт.

9

174991C1

PULLEY, jackshaft drive, 5-27/32 in. OD, slow speed or edible bean

1шт.

9

174992C1

PULLEY, jackshaft drive, 8-3/4 in. OD, edible bean or slow speed, refer to group 21 under variable cylinder drive

1шт.

10

171112C1

PULLEY, variable cylinder driven, 11.15 in. OD

1шт.

10

171100C1

PULLEY, cylinder jackshaft driven, 14 in. OD

1шт.

10

174339C1

PULLEY, variable cylinder driven, 9-1/4 in. OD, fast speed

1шт.

10

174994C1

PULLEY, variable cylinder driven, 17-13/32 in. OD, slow speed or edible bean, refer to group 21 under variable cylinder drive

1шт.

11

174757C1

PULLEY

ASSY, primary cylinder drive belt tightener, 8 in. OD, refer to group 21 under variable cylinder drive

1шт.

12

171101C2

BELT,0.630" W x 98.00" L, 4 Ribs

V-BELT , Variable speed cyl dr primary, Refer to group 21 under variable cylinder drive 0.630" W x 98.00" L, 4 Ribs

1шт.

13

172712C11

PULLEY

ASSY, variable cylinder drive, 20 in. OD, refer to group 21 under variable cylinder drive

1шт.

14

171097C11

PULLEY, variable cyl adjustable half dr, 18.5 in. OD

1шт.

14

171098C11

PULLEY

variable cyl fixed half drive, 18.5 in. OD, refer to group 21 under variable cylinder drive

1шт.

15

174756C1

PULLEY

ASSY, variable cylinder drive belt tightener, 8 in. OD, refer to group 21 under variable cylinder drive

1шт.

16

171130C1

BELT,2.00" W x 114.98" L

V-BELT , Variable speed cylinder drive, Refer to group 21 under variable cylinder drive 2.00" W x 114.98" L

1шт.

17

170952C2

SPROCKET ASSY.

PULLEY AND SPROCKET, elevator jackshaft drive sprocket, 7-3/4 in. OD and 38 teeth, refer to group 22 under straw walker drive, refer to group 23 under grain pan, shaker shaft and drive, refer to group 25 under elevator drive

1шт.

18

170944C1

PULLEY, straw walker driven, 17 in. OD

1шт.

18

171339C1

PULLEY, straw walker driven, 19 in. OD, slow speed, refer to group 22 under straw walker drive

1шт.

19

170945C1

PULLEY

straw walker drive idler, 7 in. OD, refer to group 22 under straw walker drive

1шт.

20

170951C11

PULLEY

ASSY, straw walker idler and fan drive, 7 and 8 in. OD, refer to group 22 under straw walker drive, also refer to group 24 under variable fan drive

1шт.

21

170948C1

BELT,0.490" W x 116.29" L, 2 Ribs

V-BELT , Straw walker and fan jackshaft 0.490" W x 116.29" L, 2 Ribs

1шт.

21

171338C1

BELT

straw walker and fan jackshaft, slow speed, refer to group 22 under straw walker drive

1шт.

22

175315C1

PULLEY

shaker shaft driven, 13 in. OD

1шт.

22

632701R1

PULLEY, shaker shaft driven, 11.7 in. OD, fast speed, refer to group 23 under grain pan, shaker shaft and drive

1шт.

23

566519R91

PULLEY

ASSY, shaker shaft drive belt tightner 6 in. OD, refer to group 23 under grain pan, shaker shaft and drive

1шт.

24

564494R2

V-BELT,0.88" W

Shaker shaft drive 0.88" W

1шт.

24

632702R1

V-BELT,0.88" W

Shaker shaft drive, Fast speed, Refer to group 23 under grain pan, shaker shaft and drive 0.88" W

1шт.

25

174975C1

PULLEY

fan drive outer, 9-7/8 in. OD

2шт.

25

174976C1

PULLEY

fan drive center, 9-7/8 in. OD, refer to group 24 under variable fan drive

1шт.

26

170969C1

PULLEY

fan driven, 7 in. OD

1шт.

26

178937C1

PULLEY, fan driven, 10 in. OD, slow speed, parts accessories, refer to group 24 under variable fan drive

1шт.

27

170954C11

V-BELT,1.00" W x 63.73" L

Fan drive, Matched pair 1.00" W x 63.73" L

1шт.

27

178936C1

BELT,1.00" W x 68.43" L

V-BELT , Fan drive, Slow speed, Parts accessories, Refer to group 24 under variable fan drive 1.00" W x 68.43" L

1шт.

28

172614C1

PULLEY, elevator drive, 8 in. OD

1шт.

28

178938C1

PULLEY, elevator drive, 6.50 in. OD, slow speed, refer to group 25 under elevator drive

1шт.

29

174733C1

PULLEY

ASSY, elevator driven, 10-1/2 in. OD, refer to group 25 under elevator drive

1шт.

30

174734C1

PULLEY

ASSY, leveling auger driven, 10-1/2 in. OD, refer to group 25 under elevator drive

1шт.

31

154742C91

PULLEY

ASSY, elevator drive belt tightener, 7-1/4 in. OD, refer to group 25 under elevator drive

1шт.

32

937928R1

V-BELT

Elevator drive, Not raised leveling auger

1шт.

32

937929R1

V-BELT

Elevator drive, For raised leveling auger, Refer to group 25 under elevator drive

1шт.

32

150433C1

V-BELT,206.49" L

Elevator Drive, for Raised Leveling Auger, Refer to Group 26 Under Grain Tank Extension with Raised Leveling Auger 206.49" L

1шт.

33

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven 38-T, refer to group 25 under elevator drive

1шт.

34

565442R91

SPROCKET

ASSY, elevator jackshaft drive chain tightener 17-T, refer to group 25 under elevator drive

1шт.

35

CHAIN ASSY, elevator jackshaft drive roller, refer to group 25 under elevator drive

1шт.

36

632830R1

PULLEY

tailings delivery auger, 4-3/4 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

37

633282R1

SHEAVE

PULLEY, tailings delivery auger driven, 4 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

38

161430C91

PULLEY

ASSY, tailings delivery auger drive belt tightener, 4-3/8 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

39

627297R1

V-BELT,0.63" W

Tailings delivery auger drive, Refer to group 25 under tailings delivery auger drive and downspout 0.63" W

1шт.

40

627895R1

PULLEY

unloader drive, 6-5/8 in. OD, belt drive

1шт.

40

175542C1

PULLEY

unloader drive, 8-1/2 in. OD, hydrostatic drive, refer to group 26 under grain tank unloader drive and controls

1шт.

41

22784KA

PULLEY

ASSY, unloader driven, 21 in. OD, refer to group 26 under grain tank unloader drive and controls

1шт.

42

570265R1

PULLEY ASSY, tightener inner, 7 in. OD

1шт.

42

154742R91

PULLEY ASSY, tightener outer, 7 in. OD, refer to group 26 under grain tank unloader drive and controls

1шт.

43

559064C1

BELT, unloader drive, belt drive

1шт.

43

165676C1

V-BELT,0.88" W x 153.99" L

Unloader Drive, Hydrostatic Drive, Refer to Group 26 Under Grain Tank Unloader Drive and Controls 0.88" W x 153.99" L

1шт.

44

164961C2

SPROCKET ASSY.

SPROCKET, reel drive, 7 T, refer to PFM-1 parts catalog section E under hydraulic reel dr

1шт.

45

174536C1

SPROCKET ASSY.

SPROCKET ASSY, reel driven, 100 T, refer to PFM-1 parts catalog section E under hydraulic reel dr

1шт.

45

570032R1

SPROCKET ASSY.

SPROCKET, reel shaft driven, 29 T, refer to PFM-1 parts catalog section E under mechanical reel dr

1шт.

46

CHAIN ASSY, reel drive, refer to PFM-1 parts catalog section E under hydraulic reel dr

1шт.

47

179034C1

SPROCKET W/BUSHINGS, jackshaft drive, refer to PFM-1 parts catalog section E under mechanical reel dr

1шт.

48

559168R91

PTO

PULLEY, chain idler, 3-1/2 in. OD, refer to PFM-1 parts catalog section E under mechanical reel dr

1шт.

49

CHAIN ASSY, reel drive, refer to PFM-1 parts catalog section E under mechanical reel dr

1шт.

50

177659C1

RETAINER

SPROCKET W/RETAINER, 18 T, refer to PFM-1 parts catalog section E under header auger and drive

1шт.

51

565442R91

SPROCKET

idler bearing, 17 T, refer to PFM-1 parts catalog section E under mechanical reel dr

1шт.

52

CHAIN ASSY, jackshaft drive, refer to PFM-1 parts catalog section E under mechanical reel dr

1шт.

53

634545R91

SPROCKET ASSY.

SPROCKET ASSY, feed beater drive, 35 T, refer to group 21 under feed beater, drive and stone retarder

1шт.

54

177608C1

SPROCKET ASSY.

SPROCKET ASSY, feeder pivot drn, 34 T, refer to group 21 under feed beater, drive and stone retarder

1шт.

55

634191R1

SPROCKET ASSY, feed beater driven, 22 T, refer to group 21 under feed beater, drive and stone retarder

1шт.

56

582389R91

DRIVE SPROCKET

SPROCKET, feed beater dr chain tight, 15T, refer to group 21 under feed beater, drive and stone retarder

1шт.

57

CHAIN ASSY, feed beater drive, refer to group 21 under feed beater, drive and stone retarder

1шт.
