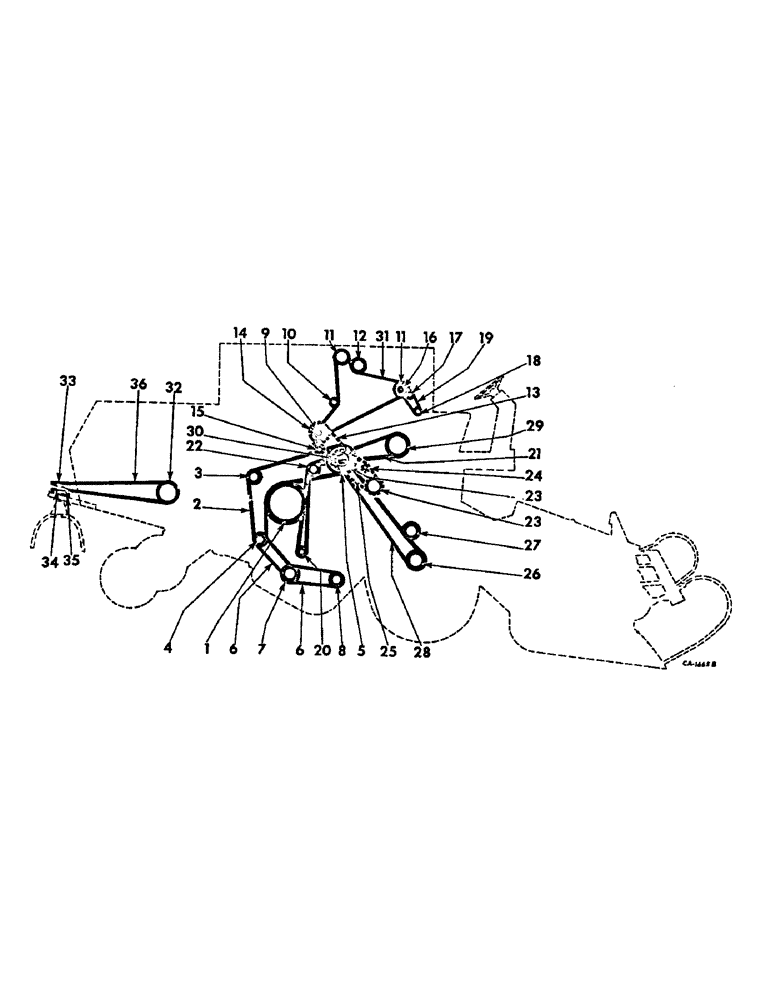

Запчасти Case IH 715 (02-08) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, RIGHT SIDE, S/N 8000 AND BELOW Accessories & Attachments / Miscellaneous

1

170944C1

PULLEY, straw rack driven, 17 in. OD, not edible bean, refer to group 22 under straw rack drive

1шт.

1

171339C1

PULLEY, straw rack driven, 19 in. OD, for edible bean and slow speed, refer to group 22 under straw rack drive

1шт.

2

170948C1

BELT,0.490" W x 116.29" L, 2 Ribs

V-BELT , Straw rack and fan jackshaft, Not edible bean, Refer to group 22 under straw rack drive 0.490" W x 116.29" L, 2 Ribs

1шт.

2

171338C1

BELT

straw rack and fan jackshaft, edible bean and slow speed, refer to group 22 under straw rack drive

1шт.

3

170945C1

PULLEY

straw rack drive idler, 7 in. OD, refer to group 22 under straw rack drive

1шт.

4

170951C11

PULLEY

ASSY, straw rack idler and fan drive, 7 and 8 in. OD, refer to group 22 under straw rack drive, also refer to group 24 under variable fan drive

1шт.

5

170952C2

SPROCKET ASSY.

PULLEY AND SPROCKET, elevator jackshaft drive sprocket, 7-3/4 in. OD and 38 teeth, shaker shaft and fan and straw rack drive, refer to group 22 under straw rack drive, refer to group 23 under grain pan, shaker shaft and drive

1шт.

6

170954C11

V-BELT,1.00" W x 63.73" L

Fan drive, Matched pair, Refer to group 24 under variable fan drive 1.00" W x 63.73" L

1шт.

7

164223C1

PULLEY

fan drive outer, 9-7/8 in. OD, serial no. 5322 and below

1шт.

7

174975C1

PULLEY

fan drive outer, 9-7/8 in. OD, serial no. 5323 and above

2шт.

7

164221C1

PULLEY

fan drive center, 7-1/4 in. OD, serial no. 5322 and below

1шт.

7

174976C1

PULLEY

fan drive center, 7-1/4 in. OD, serial no. 5323 and above

1шт.

7

164222C1

PULLEY

fan drive inner, 9-7/8 in. OD, serial no. 5322 and below

1шт.

7

174975C1

PULLEY

fan drive inner, 9-7/8 in. OD, serial no. 5323 and above

1шт.

8

170969C1

PULLEY

fan driven, 7 in. OD, refer to group 24 under variable fan drive

1шт.

9

172614C1

PULLEY, elevator drive, 8 in. OD, refer to group 25 under elevator drive

1шт.

10

154742C91

PULLEY

ASSY, elevator drive belt tightener, 7-1/4 in. OD, refer to group 25 under elevator drive

1шт.

11

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, 10-1/2 in. OD, refer to group 25 under elevator drive

1шт.

12

174734C1

PULLEY

ASSY, leveling auger driven, 10-1/2 in. OD, refer to group 26 under grain tank and supports

1шт.

13

CHAIN ASSY, elevator jackshaft drive roller, use 71 links from 10-ft roll marked 1791D and one connecting link 1310D, refer to group 25 under elevator drive

1шт.

14

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven 38-T, refer to group 25 under elevator drive

1шт.

15

565442R91

SPROCKET

ASSY, elevator jackshaft drive chain tightener 17-T, refer to group 25 under elevator drive

1шт.

16

632830R1

PULLEY

tailings delivery auger, 4-3/4 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

17

161430C91

PULLEY

ASSY, tailings delivery auger drive belt tightener, 4-3/8 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

18

633282R1

SHEAVE

PULLEY, tailings deliveyr auger driven, 4 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

19

627297R1

V-BELT,0.63" W

Tailings delivery auger drive, Refer to group 25 under tailings delivery auger drive and downspout 0.63" W

1шт.

20

627895R1

PULLEY

unloader drive, 6-5/8 in. OD, belt drive, refer to group 26 under grain tank unloader drive and controls

1шт.

20

150669C1

PULLEY, unloader drive, 8-1/2 in. OD, hydrostatic drive, serial no. 5322 and below

1шт.

20

175542C1

PULLEY

unloader drive, 8-1/2 in. OD, hydrostatic drive, serial no. 5323 and above, refer to group 26 under grain tank unloader drive and controls

1шт.

21

559064C1

BELT, unloader drive, belt drive

1шт.

21

165676C1

V-BELT,0.88" W x 153.99" L

Unloader Drive, Hydrostatic Drive, Refer to Group 26 Under Grain Tank Unloader Drive and Controls 0.88" W x 153.99" L

1шт.

22

570265R1

PULLEY ASSY, tightener inner, 7 in. OD, refer to group 26 under grain tank unloader drive and controls

1шт.

22

154742R91

PULLEY ASSY, tightener outer, 5 in. OD, refer to group 26 under grain tank unloader drive and controls

1шт.

23

171191C1

SPROCKET, cylinder 25-T, double, standard, chain drive, refer to group 21 under cylinder drive and slip clutch

1шт.

23

158418C1

DRIVE SPROCKET

SPROCKET, cylinder 30-T, double, chain drive, standard, refer to group 21 under cylinder drive and slip clutch

1шт.

23

158421C1

SPROCKET, cylinder 48-T, double, chain drive, standard, refer to group 21 under cylinder drive and slip clutch

1шт.

23

171133C1

SPROCKET, cylinder 22-T, double, chain drive, standard for grain, maize and window special, refer to group 21 under cylinder drive and slip clutch

1шт.

23

160121C1

SPROCKET ASSY.

SPROCKET, cylinder 35-T, double, chain drive, parts accessory, refer to group 21 under cylinder drive and slip clutch

1шт.

23

158420C1

SPROCKET, cylinder, 54-T, double, chain drive, parts acessory, refer to group 21 under cylidner drive and slip clutch

1шт.

24

172076C91

SPROCKET ASSY, cylinder drive chain tightener 20-T, double, refer to group 21 under cylinder drive and slip clutch

1шт.

25

CHAIN ASSY, cylinder drive double roller, chain drive, order 79 links from 10 ft. roll marked 1355D one offset link 570988R91, four connecting links 569206R91 and two roller links 1316D

1шт.

25

CHAIN ASSY, cylinder drive double roller extension, corn soybean, chain drive, use 5 links from 10-ft roll marked 1355D, three connecting links 569206R91 one two pitch combination offset connecting links 570988R91 and two roller links 1316D

1шт.

26

175315C1

PULLEY

shaker shaft driven, 13 in. OD

1шт.

26

632700R1

PULLEY, shaker shaft driven, 14 in. OD, edible bean, refer to group 23 under grain pan, shaker shaft and drive

1шт.

27

566519R91

PULLEY

ASSY, shaker shaft drive belt tightener 6 in. OD, refer to group 23 under grain pan, shaker shaft and drive

1шт.

28

564494R2

V-BELT,0.88" W

Shaker shaft drive, Not edible bean, Refer to group 23 under grain pan, shaker shaft and drive 0.88" W

1шт.

28

550950R1

V-BELT,0.88" W

Shaker shaft drive, For edible bean, Refer to group 23 under grain pan, shaker shaft and drive 0.88" W

1шт.

28

632702R1

V-BELT,0.88" W

Shaker shaft drive, Fast speed, Refer to group 23 under grain pan, shaker shaft and drive 0.88" W

1шт.

29

22784KA

PULLEY

ASSY, unloader driven, 21 in. OD., refer to group 24 under grain tank unloader drive and controls

1шт.

30

170952C2

SPROCKET ASSY.

PULLEY AND SPROCKET, shaker shaft drive, 7-3/4 in. OD, refer to group 23 under grain pan, shaker shaft and drive

1шт.

31

937928R1

V-BELT

Elevator drive, Not raised leveling auger

1шт.

31

937929R1

V-BELT

Elevator drive, For raised leveling auger, Refer to group 25 under elevator drive

1шт.

32

936706R1

PULLEY

straw spreader drive, 6-3/4 in. OD, refer to group 20 under straw spreader

1шт.

33

17876K

PULLEY ASSY.

PULLEY ASSY, straw spreader drive belt idler, 5-1/8 in. OD, refer to group 20 under straw spreader

1шт.

34

48252K

PULLEY ASSY.

PULLEY ASSY, straw spreader drive belt tightner, 4-3/4 in. OD, refer to group 20 under straw spreader

1шт.

35

217125

PULLEY ASSY, straw spreader driven, 5-3/4 in. OD, refer to group 20 under straw spreader

1шт.

36

589622R1

V-BELT,0.63" W

Straw spreader drive, Refer to group 20 under straw speader 0.63" W

1шт.
