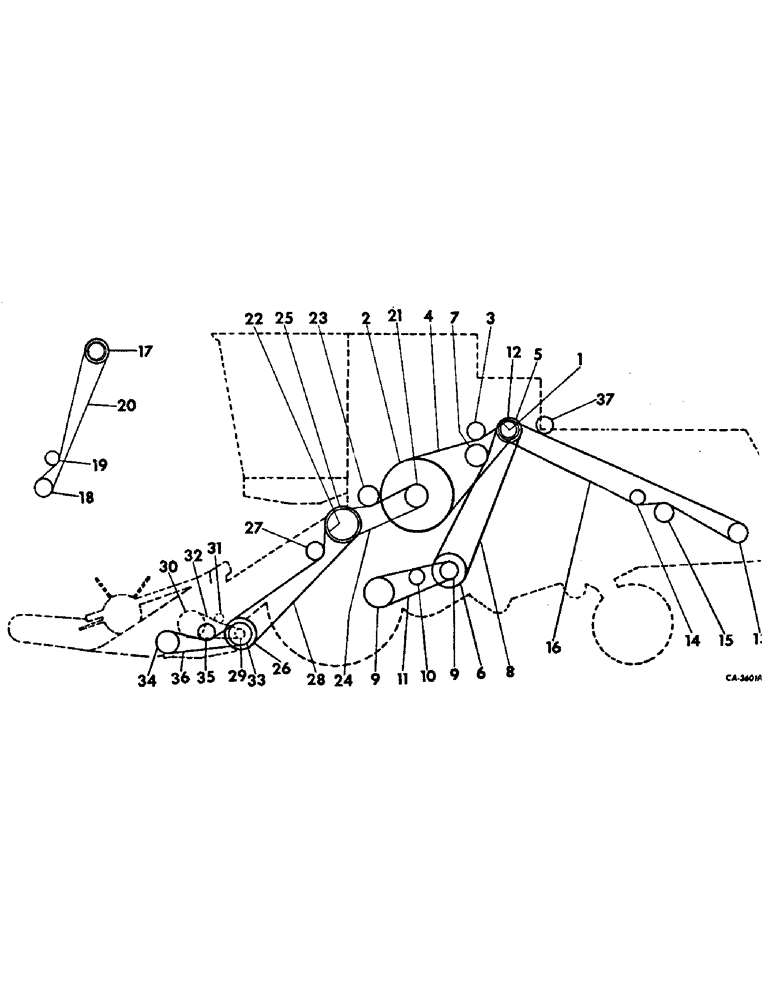

Запчасти Case IH 715 (02-05) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, LEFT SIDE, S/N 8001 AND ABOVE Accessories & Attachments / Miscellaneous

1

172228C1

PULLEY, separator drive, 7.11 in. OD, gasoline engine

1шт.

1

172229C1

PULLEY, separator drive, 6-1/2 in. OD, diesel engine, refer to group 7 under separator drive

1шт.

2

171232C1

PULLEY, separator driven, 33 in. OD, refer to group 7 under separator drive

1шт.

3

174756C1

PULLEY

ASSY, separator drive belt idler, 8 in. OD, refer to group 7 under separator drive

1шт.

4

171226C1

BELT,0.630" W x 171.99" L, 3 Ribs

V-BELT , Separator drive, Refer to group 7 under separator drive 0.630" W x 171.99" L, 3 Ribs

1шт.

5

627732R1

PULLEY, propulsion jackshaft drive, 12-1/4 in. OD, gasoline engine, belt drive

1шт.

5

172231C1

PULLEY, propulsion jackshaft drive, 11-1/2 in. OD, diesel engine, belt drive, refer to group 7 under propulsion drive

1шт.

6

633354R1

PULLEY, propulsion jackshaft driven, 16-1/8 in. OD, belt drive, refer to group 7 under propulsion drive

1шт.

7

569193R11

PULLEY

ASSY, propulsion jackshaft drive belt tightener, 10.0 in. OD, belt drive, refer to group 7 under propulsion drive

1шт.

8

937931R1

V-BELT

Propulsion jackshaft drive, Gasoline engine

1шт.

8

172230C1

BELT,1.259" W x 174.73" L

V-BELT , Propulsion jackshaft drive, Diesel engine, Refer to group 7 under propulsion drive, Belt drive 1.259" W x 174.73" L

1шт.

9

633352R11

PULLEY

ASSY, propulsion drive, 14 in. OD

2шт.

9

633353R11

PULLEY

ASSY, propulsion drive, 14 in. OD, belt drive, refer to group 7 under propulsion drive

1шт.

10

569963R1

PULLEY

propulsion drive belt tightener, 7-5/8 in. OD, belt drive, refer to group 7 under propulsion drive

1шт.

11

173110C1

BELT,1.50" W x 98.98" L

V-BELT , Propulsion drive, Belt drive, Refer to group 7 under propulsion drive 1.50" W x 98.98" L

1шт.

12

936161R1

PULLEY, drive, 10-1/4 in. OD, gasoline engine

1шт.

12

936162R1

PULLEY, drive, 9-1/2 in. OD, diesel engine, refer to group 20 under straw chopper drive

1шт.

13

171261C11

PULLEY

ASSY, rotor driven, 9-3/4 in. OD, refer to group 20 under straw chopper drive

1шт.

14

574097R91

PULLEY

ASSY, idler, 7-5/16 inc. OD, refer to group 20 under straw chopper drive

1шт.

15

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, tightener, 8-3/4 in. OD, refer to group 20 under straw chopper drive

1шт.

16

174614C1

BELT

straw chopper drive, refer to group 20 under straw chopper drive

1шт.

17

150624C1

PULLEY

unloader jackshaft drive, 5-3/4 in. OD, hydrostatic drive, refer to group 26 under grain tank unloader drive

1шт.

18

175544C1

PULLEY

unloader jackshaft driven, 11 in. OD, hydrostatic drive, refer to group 26 under grain tank unloader drive

1шт.

19

570265R91

PULLEY

ASSY, unloader jackshaft drive belt tightener, 7 in. OD, hydrostatic drive, refer to group 26 under grain tank unloader drive

1шт.

20

175545C1

BELT,0.630" W x 158.91" L

V-BELT , Unloader, Jackshaft drive, Hydrostatic drive, Refer to group 26 under grain tank unloader drive 0.630" W x 158.91" L

1шт.

21

150493C11

PULLEY ASSY, feeder drive, 11.81 in. OD

1шт.

21

588984R1

PULLEY, feeder drive, 10-1/4 in. OD, slow speed, refer to group 33 under feeder drive belt type

1шт.

21

170691C1

SPROCKET ASSY.

SPROCKET ASSY, feeder drive, 23-T, refer to group 33 under feeder drive electric clutch

1шт.

22

179492C1

PULLEY, feeder driven, 15 in. OD, not window special

1шт.

22

568937R21

PULLEY

feeder driven, 15.44 in. OD, for window special, refer to group 33 under feeder drive belt type

1шт.

22

175972C1

SPROCKET ASSY.

SPROCKET, feeder driven, 32 T, not window special

1шт.

22

170690C1

SPROCKET, feeder driven, 33 T, not window special

1шт.

22

935867R1

SPROCKET, feeder driven, 38 T, slow speed, edible bean, refer to group 33 under feeder drive electric clutch

1шт.

23

568941R11

PULLEY

ASSY, feeder drive tightener, 9-1/2 in. OD, refer to group 33 under feeder drive belt type

1шт.

23

589538R91

SPROCKET ASSY.

SPROCKET ASSY, feeder drive chain tightener, 17 T, refer to group 33 under feeder drive electric clutch

1шт.

24

937932R1

BELT

V-BELT, Feeder drive, Not window special

1шт.

24

156062C1

V-BELT,1.26" W x 114.48" L

Feeder Drive, For Windrow Special 1.26" W x 114.48" L

1шт.

24

589145R1

V-BELT 1.26" W, Feeder drive, Slow speed, Not window special, Refer to group 33 under feeder drive belt type 1.26" W

1шт.

24

CHAIN ASSY, feeder drive, refer to group 33 under feeder drive electric clutch

1шт.

25

176564C1

PULLEY

feeder jackshaft drive, 16-3/4 in. OD, single belt

1шт.

25

176574C1

PULLEY

feeder jackshaft drive, 16-3/4 in. OD, double belt, refer to group 33 under feeder jackshaft drive

1шт.

26

176562C1

PULLEY

feeder jackshaft driven, 13-1/2 in. OD, single belt

1шт.

26

176572C1

PULLEY

feeder jackshaft driven, 13-1/2 in. OD, double belt, refer to group 33 under feeder jackshaft drive

1шт.

27

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, feeder jackshaft drive tightener, single belt

1шт.

27

176579C1

IDLER

ASSY, feeder jackshaft drive tightener, double belt, refer to group 33 under feeder jackshaft drive

1шт.

28

176565C1

BELT,0.879" W x 174.99" L

V-BELT , Feeder jackshaft drive, Single belt, Not rice w/34 in. main wheels 0.879" W x 174.99" L

1шт.

28

176576C1

BELT,0.879" W x 195.99" L

V-BELT , Feeder jackshaft drive, Single belt, For rice w/34 in. main wheels 0.879" W x 195.99" L

1шт.

28

176566C1

BELT

V-BELT, Feeder jackshaft drive, Double belt, Refer to group 33 under feeder jackshaft drive

1шт.

29

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18 T, refer to PFM-1 parts catalog section E under header auger and drive

1шт.

30

177966C1

SPROCKET ASSY.

SPROCKET W/BUSHING, auger driven, 47 T, refer to PFM-1 parts catalog section E under header auger and drive

1шт.

31

571441R1

SPROCKET, idler, 15 T, refer to PFM-1 parts catalog section E under header auger and drive

1шт.

32

CHAIN ASSY, auger drive, refer to PFM-1 parts catalog section E under header auger and drive

1шт.

33

939241R11

PULLEY ASSY.

PULLEY ASSY, drive, 10-1/2 in. OD, refer to PFM-1 parts catalog section E under knife and knife drive

1шт.

34

178032C1

PULLEY

rotory, 10-1/2 in. OD, refer to PFM-1 parts catalog section E under knife and knife drive

1шт.

35

565441R91

BEARING

PULLEY W/BEARING, idler, 8-3/4 in. OD, refer to PFM-1 parts catalog section E under knife and knife drive

1шт.

36

178019C1

BELT,0.879" W x 102.74" L

V-BELT , Drive, Refer to PFM-1 parts catalog section E under knife and knife drive 0.879" W x 102.74" L

1шт.

37

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, idler, 8-3/4 in. OD, hydrostatic drive, refer to group 20 under straw chopper drive

1шт.
