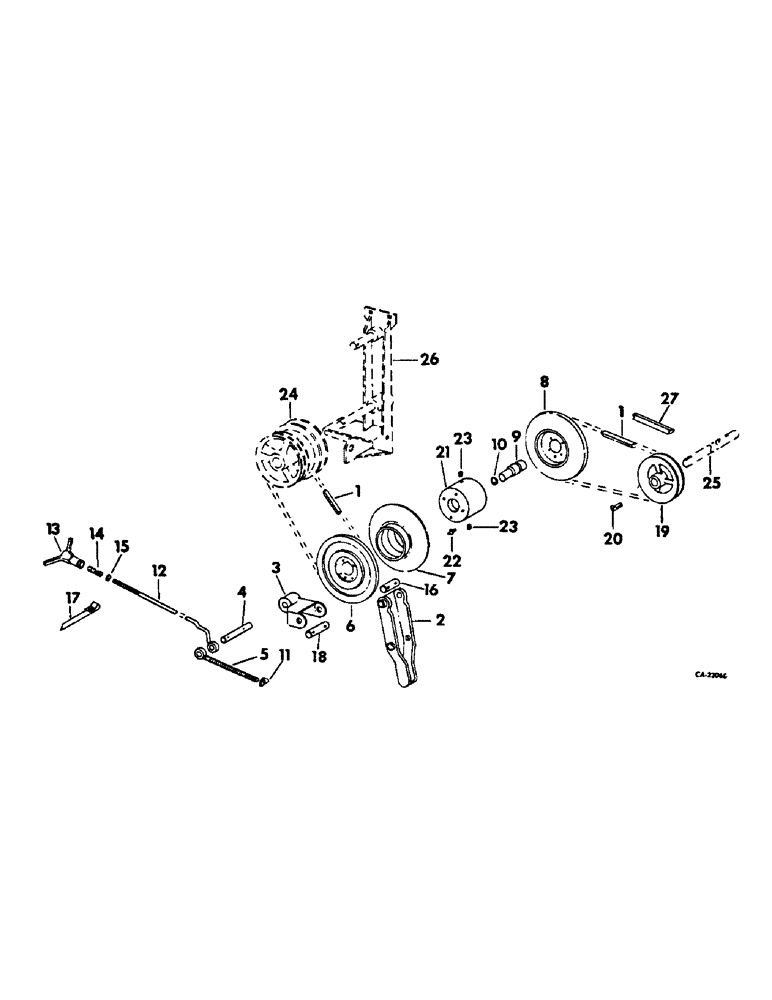

Запчасти Case IH 715 (24-06) - CLEANING FAN, VARIABLE FAN DRIVE, SERIAL NO. 5329 AND ABOVE (15) - CLEANING

1

170954C11

V-BELT,1.00" W x 63.73" L

Fan drive matched pair, Consists of 2 belts, Must be serviced in pairs 1.00" W x 63.73" L

1шт.

1

178936C1

BELT,1.00" W x 68.43" L

V-BELT , Fan drive, Slow speed, Parts accessory 1.00" W x 68.43" L

1шт.

2

174972C1

SUPPORT, variator upper

1шт.

3

174973C1

SUPPORT, variator lower

1шт.

4

174974C1

STUD

variable pulley bearing support

1шт.

426099

NUT,3/4"-16, G5

3/4 hex

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Split (Cotter), 1/4" x 2 1/2"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

5

170958C1

BOLT, fan drive variator draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 hex jam

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

6

174975C1

PULLEY

fan drive outer, 9-7/8 in. OD

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

174976C1

PULLEY

fan drive center, 7-1/4 in. OD

1шт.

8

174975C1

PULLEY

fan drive inner, 9-7/8 in. OD

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

9

343768R91

BEARING

ASSY, variator pulley

1шт.

10

359306R1

RING

variator pulley bearing snap

1шт.

11

173879C1

WASHER, fan drawbolt

1шт.

12

174977C1

BOLT, fan speed control

1шт.

13

169705C1

HANDLE

fan speed control

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

14

12209D

SPRING

fan speed control rod

1шт.

15

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan speed control handle #100, Ext

1шт.

16

173882C1

PIN

variator upper support pivot

1шт.

30340R1

PIN, 1/4 x 1-1/2 cotter

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

4шт.

17

175306C1

STRAP, fan speed indicator

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

173883C1

PIN, variator lower support pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga

4шт.

19

170969C1

PULLEY

fan driven, 7 in OD

1шт.

19

178937C1

PULLEY, fan driven, 10 in. OD, slow speed, parts accessory, serial no. 8001 and above

1шт.

20

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 gib

1шт.

21

174978C1

HUB

fan drive pulley

1шт.

22

126131

FITTING

1/4-28NF str lub

1шт.

23

617077R1

WICK

lubricating

2шт.

24

PULLEY ASSY, straw walker idler and fan drive, 7 in. OD, refer to group 22 under straw walker drive

1шт.

25

SHAFT, fan, refer to this group under fan wind deflector and separator fan rotary screen

1шт.

26

SUPPORT W/SHAFT, straw walker drive idler, refer to group 22 under straw walker drive

1шт.

27

(Not used in this application)

1шт.
