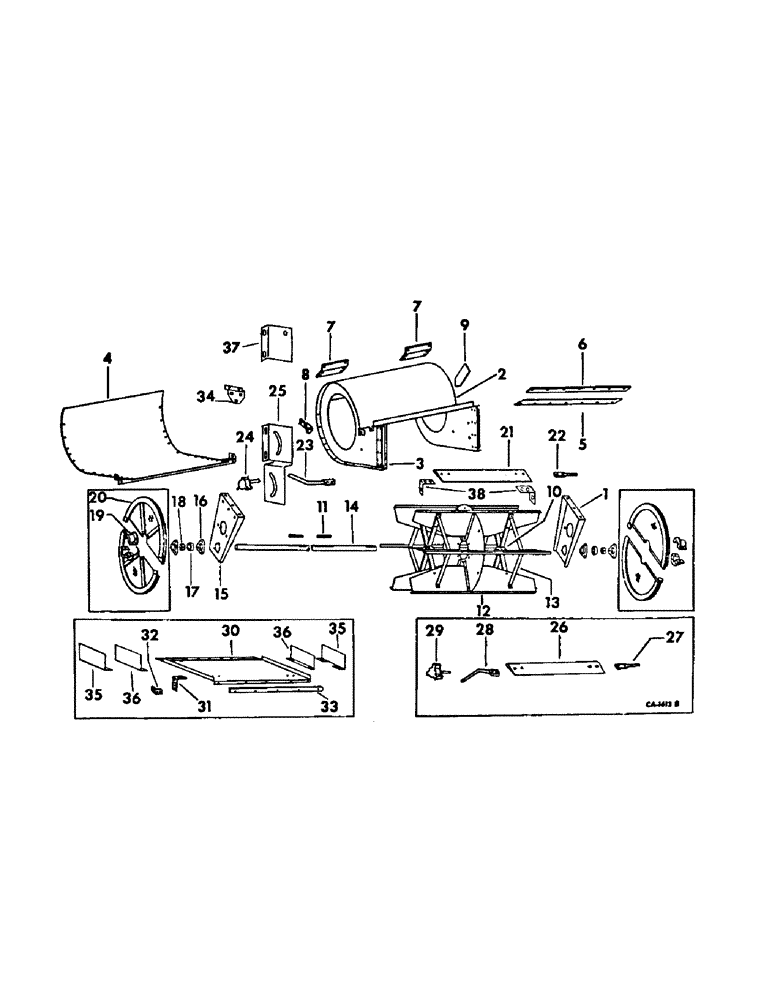

Запчасти Case IH 715 (24-02) - CLEANING FAN, FAN WIND DEFLECTOR AND SEPARATOR, FAN ROTARY SCREEN (15) - CLEANING

165906C91

PARTS ACCESSORY, fan housing wind deflector, incl ref nos 30 thru 33

1шт.

1

627397R1

BRACKET, fan shaft bearing RH, chain drive

1шт.

1

171119C1

BRACKET, fan shaft bearing RH, variable cylinder drive

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

3шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

3шт.

2

155688C95

HOUSING ASSY, fan, includes ref. nos. 3 and 9

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

36шт.

120376

NUT,5/16"-18, G5

11шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd

32шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

36шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

8шт.

3

155682C1

SPACER

fan housing rear seal

2шт.

118069

RIVET, 1/8 x 15/16 flat-hd

16шт.

4

574285R91

COVER ASSY, fan housing lower, serial no. 8000 and below

1шт.

4

179083C1

COVER ASSY, fan housing lower, serial no. 8001 and above

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-pan-hd

5шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

5

155691C1

SEAL

grain pan center

1шт.

6

568982R1

SUPPORT, grain pan center seal

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

7

629796R1

BRACKET, fan housing front support

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

629797R1

SUPPORT, fan housing left rear, hydrostatic drive

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

155678C1

SEAL

grain pan and shoe side

2шт.

551646R1

NAIL, no. 13 ga x 7/8

8шт.

10

161335C91

U-JOINT SPIDER

SPIDER ASSY, fan

2шт.

11

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

2шт.

12

164217C91

BLADE

ASSY, fan

6шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

18шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

13

582751R1

STRAP, fan blade tie

12шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

14

569013R1

SHAFT

fan, serial no. 19000 and below

1шт.

14

190291C1

SHAFT

fan, serial no. 19001 and above

1шт.

15

627397R1

BRACKET, fan shaft bearing LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

3шт.

16

571425R1

FLANGED BEARING

fan shaft bearing

4шт.

17

557114R91

BEARING

ball, serial no. 12000 and below

2шт.

17

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

ball, serial no. 12001 and above

2шт.

18

557115R11

COLLAR

COLLAR ASSY W/SET SCREW

2шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 C-Z hex-soc-hd

2шт.

19

632804R1

HUB, half rotary screen fan, separator fan rotary screen, serial no. 5648 and below

4шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

632806R91

DEFLECTOR

SCREEN ASSY, fan half, separator fan rotary screen, serial no. 5648 and below

4шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex/hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

21

175040C1

DEFLECTOR, fan wind, serial no. 8000 and below

1шт.

22

565474R1

ROD

fan wind deflector RH, serial no. 19000 and below

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

2шт.

23

170970C1

LEVER, fan wind deflector LH, serial no. 8000 and below

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

18530R1

LOCK PIN,1/8" x 1 1/2", Slotted

Pin, 1/8" x 1 1/2", Slotted

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

2шт.

24

170971C1

BOLT

KNOB, fan deflector control, serial no. 8000 and below

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

7/32 x 1/2 x .036 C-Z

2шт.

25

170972C1

BRACKET, fan wind deflector, serial no. 8000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

587506R2

DEFLECTOR, fan wind, fan wind deflector, serial no. 19000 and below

1шт.

26

190015C1

DEFLECTOR, fan wind, fan wind deflector, serial no. 19001 and above

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

565474R1

ROD

fan wind deflector, fan wind deflector, serial no. 19000 and below

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

2шт.

28

171035C1

LEVER, fan wind deflector, fan wind deflector, serial no. 19000 and below

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

2шт.

29

170971C1

BOLT

KNOB, fan wind deflector, fan wind deflector attachment, serial no. 8000 and below

1шт.

18530R1

LOCK PIN,1/8" x 1 1/2", Slotted

Pin, 1/8" x 1 1/2", Slotted

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

7/32 x 1/2 x 20 ga C-Z

2шт.

30

165770C93

SUPPORT

ASSY, fan housing deflector, fan housing wind deflector

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

13шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

13шт.

31

165774C1

ANGLE, fan housing deflector support adjusting, fan housing wind deflector, serial no. 8000 and below

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

32

165775C1

ANGLE, fan housing deflector anchor, fan housing wind deflector

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

33

165773C1

SEAL

SEAL, fan housing deflector support, fan housing wind deflector

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

5шт.

938875R1

SCREW

1/4 x 3/4 C-Z slt-truss-hd

5шт.

34

174576C1

SUPPORT ASSY, fan housing left rear, belt drive, serial no. 3251 and above

1шт.

102635

NUT,3/8"-16, G5

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

35

179075C1

DEFLECTOR, fan bottom outer, serial no. 8001 and above

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

36

179076C1

DEFLECTOR, fan bottom inner, serial no. 8001 and above

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

37

179077C1

BRACKET, fan wind deflector, serial no. 8001 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

179432C1

ANGLE, fan housing deflector support, serial no. 8001 and above

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.
