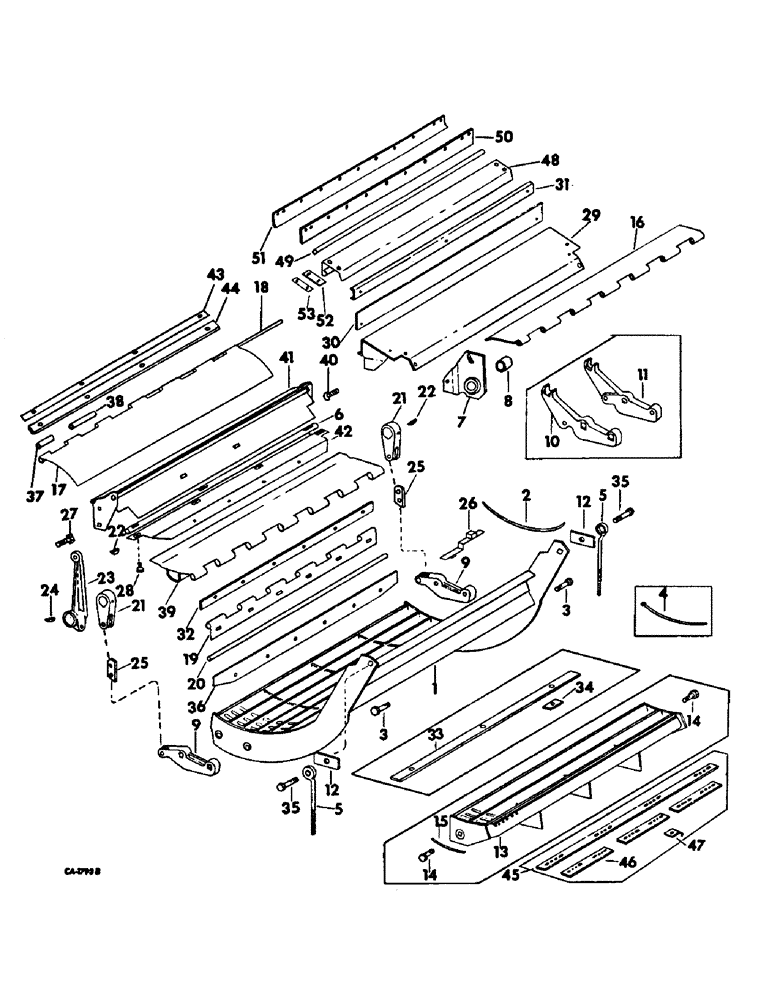

Запчасти Case IH 715 (21-24) - THRESHING CYLINDER AND CONCAVE, CONCAVE AND RELATED PARTS, SER. NO. 3251 AND ABOVE (14) - THRESHING

1

633566R93

CONCAVE

ASSY, low wire, includes ref no. 2

1шт.

1

174557C91

CONCAVE

ASSY, high wire, includes ref no. 2

1шт.

2

564023R1

ELECTRICAL WIRE

ROD, concave, low wire

46шт.

2

174556C1

ELECTRICAL WIRE

ROD, concave, high wire

42шт.

3

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave

2шт.

21434R1

NUT,5/8"-11, G8

5/8 hex. type 8

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

565571R1

ELECTRICAL WIRE

ROD, concave half, low wire, parts accessory, for use w/bar and wire concave

48шт.

5

564031R1

BOLT,Adj, 1/2" - 13 x 7.62", Cl 5

concave rear adjusting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

6

170926C2

SHAFT

concave adjusting

1шт.

7

170927C1

BRACKET ASSY, concave leveling, includes ref no. 8

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 hex-hd

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x 12 ga C-Z

1шт.

8

157560C1

BUSHING

concave leveling bracket hub

1шт.

9

158004C2

LEVER

concave front support, not windrow special

2шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/2 no. 3 plow

6шт.

21434R1

NUT,5/8"-11, G8

5/8 hex.

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 rod end

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

10

157931C1

LEVER, concave front support LH, windrow special

1шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/2 no. 3 plow

4шт.

21434R1

NUT,5/8"-11, G8

5/8 hex.

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

130086

PIN, 1/2 x 1-27/64 rod end

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

11

157932C1

LEVER, concave front support RH, windrow special

1шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/2 no. 3 plow

2шт.

21434R1

NUT,5/8"-11, G8

5/8 hex.

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 rod end

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

12

565572R1

SEALING STRIP

concave rear adjusting bolt slot

2шт.

13

634169R92

EXTENSION ASSY, concave, low wire, includes ref. no. 15, windrow special

1шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

14

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave, windrow special

4шт.

21434R1

NUT,5/8"-11, G8

5/16 x-Z hex. type 8

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

2шт.

366866R1

RING

WASHER, 5/16 znd rib lock

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga.

1шт.

15

634174R1

ROD, concave extension, windrow special

46шт.

16

634176R1

EXTENSION

PLATE, concave front extension, windrow special

1шт.

17

634151R1

EXTENSION, feed plate, windrow special

1шт.

18

568476R1

ROD

feed plate extension, serial no. 8000 and below

1шт.

19

629683R1

HINGE

concave front, not rice or spike tooth cylinder

1шт.

181693

SUPPORT

SCREW, 1/2-20 x 3/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

589386R1

ROD

concave front extension

1шт.

21

157569C3

ARM

concave front control

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

2шт.

542503R1

SCREW, 5/16 x 3/8 soc-hd cup-pt set

2шт.

22

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

2шт.

23

170934C2

LEVER

concave control

1шт.

24

124554

O-RING

5/16 x 1 Woodruff

1шт.

25

157871C2

BAR

concave front support

2шт.

26

634626R91

SUPPORT

GAGE ASSY, concave and cylinder check

1шт.

27

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, filler left, grain and rice

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

28

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z hex-hd whiz lock

4шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

2шт.

29

171549C2

SUPPORT

ASSY, feeder seal, windrow special, not edible bean

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

30

171553C1

SEAL

feeder pivot, windrow special, not edible bean

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

31

568473R1

CHANNEL, feeder pivot seal, windrow special, not edible bean

1шт.

32

632403R1

BAR

RETAINER, concave front extension, corn and soybean, not edible bean

1шт.

33

654923R1

BAR, concave filler, for use w/low wire and for high wire concave w/3/16 in. wires

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

3587H

WASHER, 13/32 x 9/16 x 16 ga.

27шт.

34

585209R1

WASHER, concave filler bar bolt, for use w/low wire and for high wire concave w/3/16 in. wires

9шт.

35

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave

4шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex. type 8

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

36

632068R1

BAR

RETAINER, concave rod front, high wire

1шт.

37

M76001

SPACER,1/4" Pipe x 2 1/4"

1/4 x 2-1/4 std pipe, used outer on feed plate extension rod, not windrow speical, serial no. 8000 and below

2шт.

38

2333F

SPACER, 1/4 x 2-3/4 std pipe, used inner on feed plate extension rod, not windrow special, serial no. 8000 and below

1шт.

39

174847C1

EXTENSION

ASSY, concave front, grain and rice, not edible bean

1шт.

40

152257C2

BOLT, concave adjusting bracket right, grain and rice, not edible bean

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

41

174850C1

SUPPORT ASSY, feed plate, serial no. 8000 and below, grain and rice, not edible bean

1шт.

41

177395C1

HINGE

ASSY, feeder bottom door, serial no. 8001 and above, not edible bean, rice

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

42

174859C1

SUPPORT ASSY, grain pan front seal plate extension, grain and rice, not edible bean

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 x 1/2 hex-hd

4шт.

20893R1

WASHER

11/32 x 1 x 11 ga

2шт.

43

171337C1

REINFORCEMENT, feeder seal, not windrow special, serial no. 8000 and below

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

44

171336C1

SEAL

feeder, not window special, serial no. 8000 and below

1шт.

45

174547C92

STRIP

ASSY, concave filler, serial no. 4877 and above, includes ref. no. 47, for use w/high wire concaves w/1/4 in. wires

3шт.

46

174550C92

STRIP

ASSY, concave filler, short, serial no. 4877 and above, includes ref. no. 47, for use w/high wire concaves w/1/4 in. wires

3шт.

47

174549C1

CLIP

concave filler strip, serial no. 4877 and above, for use w/high wire concaves w/1/4 in . wires

48шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 8-hd

48шт.

48

177430C1

DOOR

feeder top, not windrow special, serial no. 8001 and above

1шт.

177605C1

DOOR, feeder top, for windrow special, serial no. 8001 and above

1шт.

49

489982

ROD, feeder top door hinge, not windrow special, serial no.

1шт.

50

177432C2

DOOR SEAL

feeder top door, serial no. 8001 and above

1шт.

51

177433C1

BACKING, feeder top door seal, serial no. 8001 and above

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

52

177428C1

DOOR SEAL

top door side, not window special, serial no. 8001 and above

2шт.

52

177606C1

SEAL, top door side, for window special, serial no. 8001 and above

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

53

177429C1

STRIP

seal backing, not windrow special, serial no. 8001 and above

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
