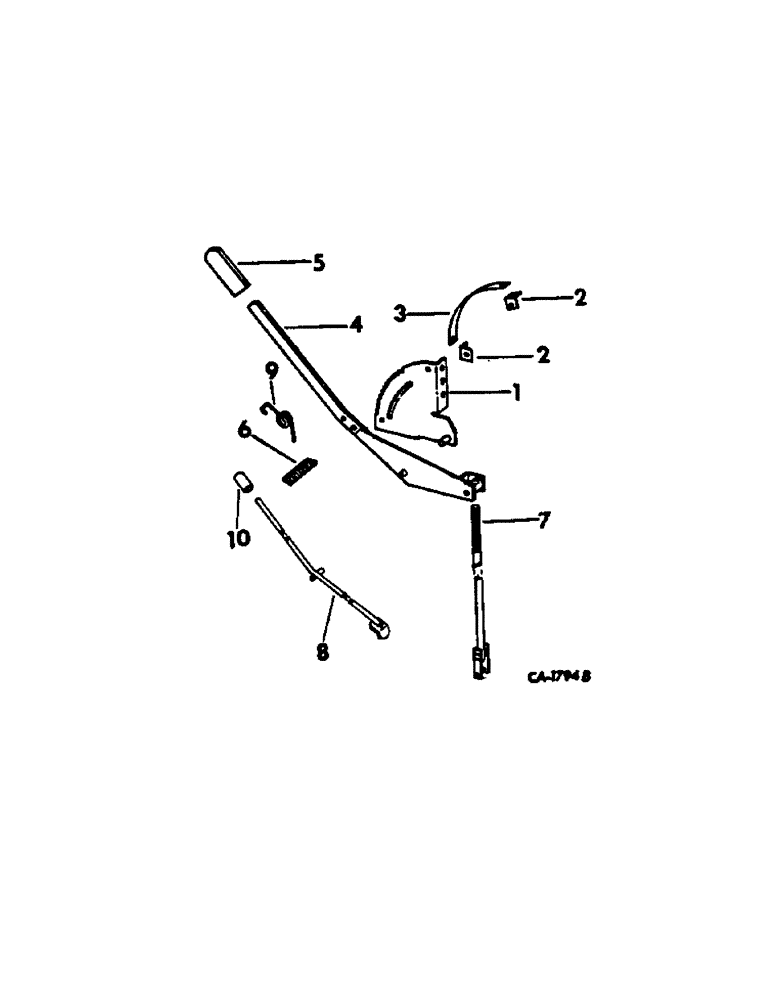

Запчасти Case IH 715 (21-21[1]) - THRESHING CYLINDER AND CONCAVE, CONCAVE CONTROL (14) - THRESHING

1

631562R21

QUADRANT ASSY, concave adjusting

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

631818R1

CLIP, concave quanrant indicator

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

633640R1

INDICATOR, concave quadrant

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd type 1

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

190136C1

LEVER

ASSY, concave adjusting

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga.

1шт.

5

938885R1

GRIP

concave adjusting lever

1шт.

6

397

SPRING, concave adjusting lever

1шт.

12717R1

BOLT, 3/8 x 2-1/2 sq-nk crg

1шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8 C-Z slt-hex.

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

614452R1

WASHER

13/32 x 3/4 x 11 ga

1шт.

7

170932C1

ROD ASSY, concave adjusting

1шт.

426099

NUT,3/4"-16, G5

3/4 znd hex.

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN, 3/8 x 1-11/32 C-Z rod end

1шт.

8

190121C1

LOCK

ASSY, concave control, serial no. 8001 and above

1шт.

9

176467C1

SPRING

concave control lock, serial no. 8001 and above

1шт.

10

179160C1

CAP, concave control lock, serial no. 8001 and above

1шт.
