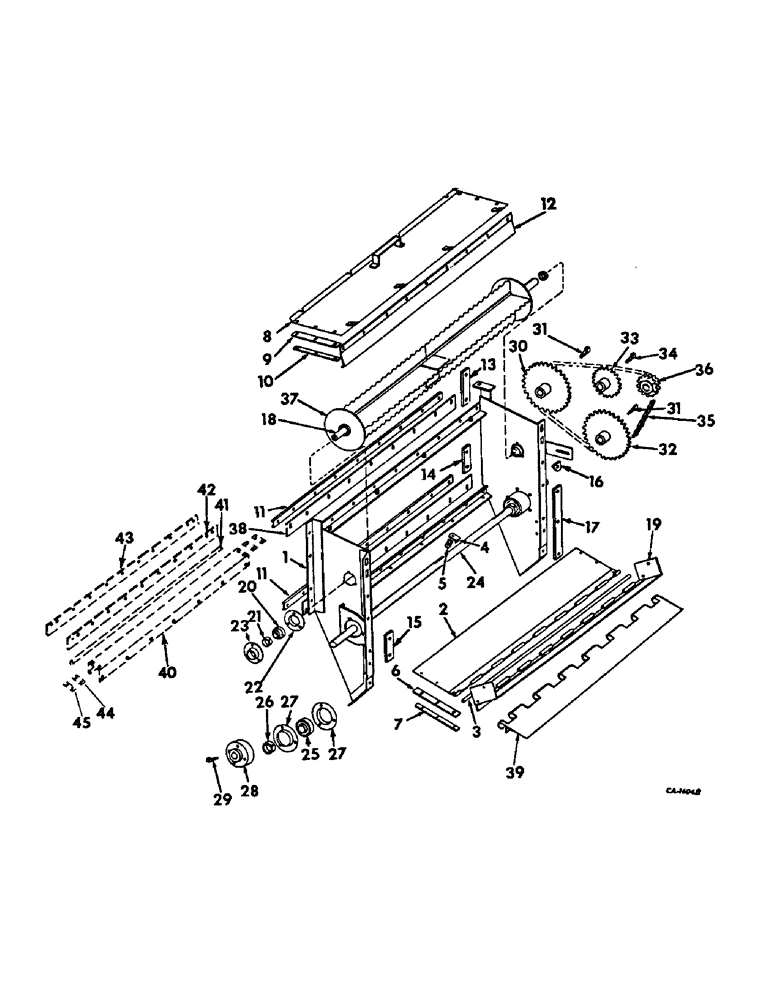

Запчасти Case IH 715 (21-19) - THRESHING CYLINDER AND CONCAVE, FEED BEATER, DRIVE AND STONE RETARDER, WINDROW SPECIAL (14) - THRESHING

1

634154R92

SUPPORT ASSY, feeder pivot

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 znd hex-hd type 8

2шт.

21333R1

NUT,3/8"-16, G8

3/8 znd hex type 8

2шт.

21330R1

NUT,1/2"-13, G8

1/2 znd hex-hd type 8

13шт.

935736R1

NUT, WING

NUT, 5/16 wing

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 znd hex-hd type 8

11шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 znd hex-hd type 8

2шт.

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

13шт.

2

174598C1

DOOR ASSY, stone retarder

1шт.

3

174600C1

ROD, stone retarder door hinge

1шт.

4

634187R1

CLIP, stone retarder door

5шт.

5

7422T

SPRING

stone retarder door clip

5шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 znd sq-nk crg

5шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 CDP prevailing torque lock

5шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

5шт.

6

634541R1

SEAL, stone retarder door

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

7

634542R1

STRIP, stone retarder door seal

2шт.

8

634178R91

COVER ASSY, feeder extension

1шт.

9

634569R1

SEAL, feeder extension cover

2шт.

10

634570R1

STRIP, feeder extension cover seal

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

11

568473R1

STIFFENER, seal, serial no. 8000 and below

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

14шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

12

634366R1

DEFLECTOR, feed beater

1шт.

13

156171C1

BAR FEEDER PIVOT BRACKET UPPER RIGHT, serial no. 8000 and below

1шт.

14

156172C1

BAR FEEDER PIVOT BRACKET LOWER RIGHT, serial no. 8000 and below

1шт.

15

156173C1

BAR BEEDER PIVOT SUPPORT ANGLE REAR LEFT

1шт.

16

156174C1

BLOCK, feeder pivot rear support angle stiffener right

1шт.

9418646

NUT,7/16"-14, G8

7/16 znd hex. type 8

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

SCREW, 7/16-14 x 1-1/2 znd hex-hd

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 znd rib lock

1шт.

17

156175C1

BAR FEEDER PIVOT SUPPORT ANGLE REAR RIGHT

1шт.

18

634195R1

SHAFT, feed beater

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

10шт.

19

174596C1

RETAINER ASSY, stone

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, feed beater shaft

2шт.

21

564853R11

COLLAR

W/SET SCREW, locking

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

22

571424R1

FLANGE

feed beater shaft brg inner

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

23

563401R1

FLANGED BEARING

FLANGE, feed beater shaft brg outer

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

24

174281C1

JACKSHAFT, feeder

1шт.

25

455103R91

BEARING

ball feeder jackshaft, serial no. 12000 and below

2шт.

25

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ball feeder jackshaft, serial no. 12001 and above

2шт.

26

455104R11

COLLAR

W/SET SCREW, locking

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

2шт.

27

617863R1

FLANGED BEARING

feeder jackshaft brg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

28

571442R1

HUB CAP

HUB, feeder driven pulley

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

29

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

1шт.

30

634545R91

SPROCKET ASSY.

SPROCKET ASSY, feed pivot driven, serial no. 8000 and below

1шт.

30

177608C1

SPROCKET ASSY.

SPROCKET ASSY, feeder pivot drn 34T, serial no. 8001 and above

1шт.

31

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib

2шт.

32

634545R91

SPROCKET ASSY.

SPROCKET ASSY, feed beater drive 35-T

1шт.

33

634191R91

SPROCKET ASSY.

SPROCKET ASSY, feed beater driven, 22 T

1шт.

34

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

1шт.

35

CHAIN ASSY, feed beater drive roller, use 69 links from 10-ft roll marked 611362R91, one connecting link 574532R91 and two offset connecting links 612612R91

1шт.

36

582389R91

DRIVE SPROCKET

SPROCKET, feed beater drive chain tightener, 15 T

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 znd sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 sq x 1-1/4 x 12 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

4шт.

37

634196R91

BEATER ASSY, feed

1шт.

38

634204R1

SEAL

feeder pivot support, serial no. 8000 and below

2шт.

39

177602C1

EXTENSION ASSY, feeder, serial no. 8001 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

40

DOOR, feeder top, refer to this group under concave and related parts

1шт.

41

ROD, feeder top door hinge, refer to this group under concave and related parts

1шт.

42

SEAL, feeder top door, refer to this group under concave and related parts

1шт.

43

BACKING, feeder top door seal, refer to this group under concave and related parts

1шт.

44

SEAL, top door side, refer to this group under concave and related parts

1шт.

45

STRIP, seal backing, refer to this group under concave and related parts

1шт.
